STM3240G-EVAL这个板有人用过吗?

2019-12-21 12:08发布

最近要找一个STM32F4的开发板,在ST官方看见一款的STM3240G-EVAL配置非常全,有人用过吗?感觉如何?

http://www.st.com/internet/evalboard/product/252216.jsp

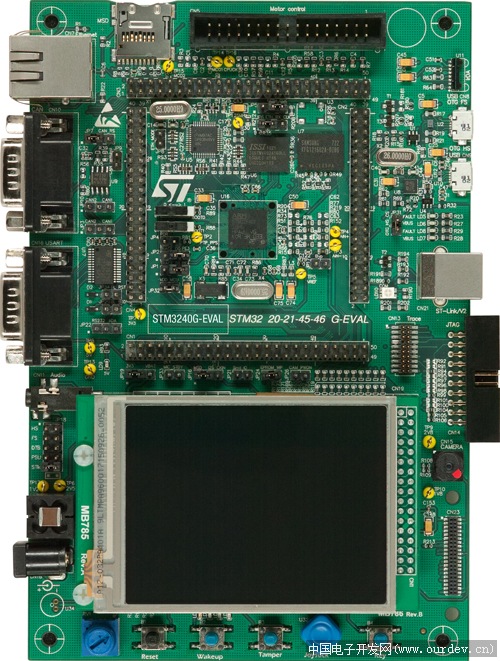

(原文件名:stm3240g-eval_board[1].jpg)

    STM32F407IGH6 microcontroller
    16 Mbit SRAM
    1 Gbyte or more MicroSD card
    Boot from user Flash, system memory or SRAM
    Both ISO/IEC 14443 type A and B smartcard support
    I2C compatible serial interface 64 Kbit EEPROM, MEMS and I/O expander
    IEEE 802.3-2002 compliant Ethernet connector
    Two CAN 2.0 A/B channels on the same DB connector
    RS-232 communication
    IrDA transceiver
    USB OTG (HS and FS) with Micro-AB connector
    Inductor motor control connector
    I2S Audio DAC, stereo audio jack for headset
    3.2" 240x320 TFT color LCD with touch screen
    4 color LEDs
    Camera module and extension connector for ST camera plug-in
    Joystick with 4-direction control and selector
    Reset, wakeup, tamper and user button
    RTC with backup battery
    Extension connector for daughterboard or wrapping board
    JTAG, SW and trace debug support
    Embedded ST-LINK/V2
    Five 5V power supply options: Power jack, USB FS connector, USB HS connector, ST-LINK/V2 or daughterboard
