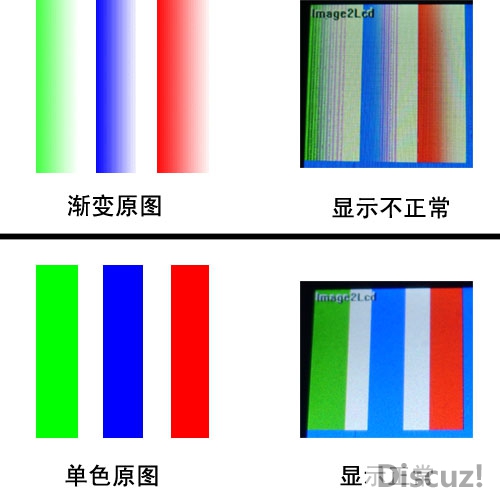

2.6寸的彩屏，芯片ili9320，显示彩条或单 {MOD}的图片都可以，就是显示渐变的图片不行，显示渐变 {MOD}时，红 {MOD}好像正常，绿 {MOD}和蓝 {MOD}有很多洋红 {MOD}在里面，附上寄存器设置，请大家给看看问题出在哪了？
LCD_Write_COM(0x00,0xE5);LCD_Write_DATA(0x08,0x00);
                  LCD_Write_COM(0x00,0x00); LCD_Write_DATA(0x00,0x01);
                 delayms(100);

        LCD_Write_COM(0x00,0x01); LCD_Write_DATA(0x01,0x00);
        LCD_Write_COM(0x00,0x02); LCD_Write_DATA(0x07,0x00);
        LCD_Write_COM(0x00,0x03); LCD_Write_DATA(0x10,0x30);
        LCD_Write_COM(0x00,0x04); LCD_Write_DATA(0x00,0x00);
        LCD_Write_COM(0x00,0x08); LCD_Write_DATA(0x02,0x02);
        LCD_Write_COM(0x00,0x09); LCD_Write_DATA(0x00,0x00);
        LCD_Write_COM(0x00,0x0A); LCD_Write_DATA(0x00,0x00);
        LCD_Write_COM(0x00,0x0C); LCD_Write_DATA(0x00,0x00);
        LCD_Write_COM(0x00,0x0D); LCD_Write_DATA(0x00,0x00);
        LCD_Write_COM(0x00,0x0F); LCD_Write_DATA(0x00,0x00);
        //*************Power On sequence ****************//
        LCD_Write_COM(0x00,0x10); LCD_Write_DATA(0x00,0x00);
        LCD_Write_COM(0x00,0x11); LCD_Write_DATA(0x00,0x07);
        LCD_Write_COM(0x00,0x12); LCD_Write_DATA(0x00,0x00);
        LCD_Write_COM(0x00,0x13); LCD_Write_DATA(0x00,0x00);
        delayms(200);

        LCD_Write_COM(0x00,0x10); LCD_Write_DATA(0x17,0xb0);
        LCD_Write_COM(0x00,0x11); LCD_Write_DATA(0x01,0x37);
        delayms(50);
        LCD_Write_COM(0x00,0x12); LCD_Write_DATA(0x01,0x3b);
        delayms(50);
        LCD_Write_COM(0x00,0x13); LCD_Write_DATA(0x0e,0x00);
        LCD_Write_COM(0x00,0x29); LCD_Write_DATA(0x00,0x09);
        delayms(50);

        LCD_Write_COM(0x00,0x20); LCD_Write_DATA(0x00,0x00);
                  LCD_Write_COM(0x00,0x21); LCD_Write_DATA(0x00,0x00);

        // ----------- Adjust the Gamma Curve ----------//
        LCD_Write_COM(0x00,0x30); LCD_Write_DATA(0x03,0x07);
        delayms(50);
        LCD_Write_COM(0x00,0x31); LCD_Write_DATA(0x05,0x07);
        LCD_Write_COM(0x00,0x32); LCD_Write_DATA(0x05,0x00);
        LCD_Write_COM(0x00,0x35); LCD_Write_DATA(0x03,0x04);
        LCD_Write_COM(0x00,0x36); LCD_Write_DATA(0x00,0x07);
        LCD_Write_COM(0x00,0x37); LCD_Write_DATA(0x07,0x07);
        LCD_Write_COM(0x00,0x38); LCD_Write_DATA(0x00,0x07);
        LCD_Write_COM(0x00,0x39); LCD_Write_DATA(0x00,0x07);
        LCD_Write_COM(0x00,0x3C); LCD_Write_DATA(0x06,0x00);
        LCD_Write_COM(0x00,0x3D); LCD_Write_DATA(0x07,0x00);
        delayms(5);

        //------------------ Set GRAM area ---------------//
        LCD_Write_COM(0x00,0x50); LCD_Write_DATA(0x00,0x00);
        LCD_Write_COM(0x00,0x51); LCD_Write_DATA(0x00,0xEF);
        LCD_Write_COM(0x00,0x52); LCD_Write_DATA(0x00,0x00);
        LCD_Write_COM(0x00,0x53); LCD_Write_DATA(0x01,0x3F);
        LCD_Write_COM(0x00,0x60); LCD_Write_DATA(0x36,0x00);
        LCD_Write_COM(0x00,0x61); LCD_Write_DATA(0x00,0x01);
        LCD_Write_COM(0x00,0x6A); LCD_Write_DATA(0x00,0x00);

        //-------------- Partial Display Control ---------//
        LCD_Write_COM(0x00,0x80); LCD_Write_DATA(0x00,0x00);
        LCD_Write_COM(0x00,0x81); LCD_Write_DATA(0x00,0x00);
        LCD_Write_COM(0x00,0x82); LCD_Write_DATA(0x00,0x00);
        LCD_Write_COM(0x00,0x83); LCD_Write_DATA(0x00,0x00);
        LCD_Write_COM(0x00,0x84); LCD_Write_DATA(0x00,0x00);
        LCD_Write_COM(0x00,0x85); LCD_Write_DATA(0x00,0x00);

        //-------------- Panel Control -------------------//
        LCD_Write_COM(0x00,0x90); LCD_Write_DATA(0x00,0x10);
        LCD_Write_COM(0x00,0x92); LCD_Write_DATA(0x00,0x00);
        LCD_Write_COM(0x00,0x93); LCD_Write_DATA(0x00,0x03);
        LCD_Write_COM(0x00,0x95); LCD_Write_DATA(0x01,0x10);
        LCD_Write_COM(0x00,0x97); LCD_Write_DATA(0x00,0x00);
        LCD_Write_COM(0x00,0x98); LCD_Write_DATA(0x00,0x00);
        LCD_Write_COM(0x00,0x07); LCD_Write_DATA(0x01,0x33);
                 delayms(300);
