深度学习Q-learing算法实现

---

1. 问题分析

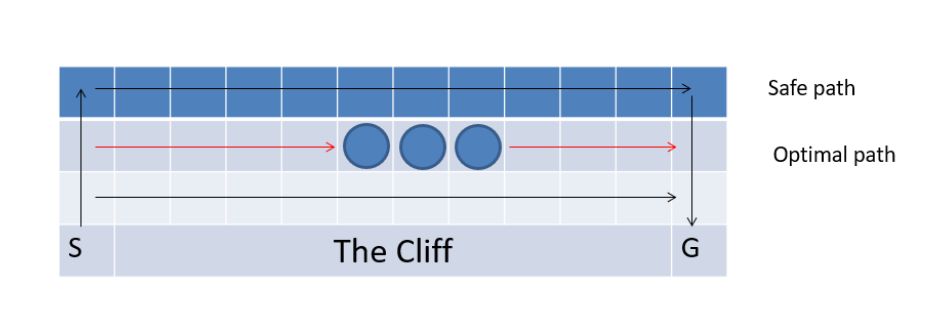

这是一个走悬崖的问题。强化学习中的主体从S出发走到G处一个回合结束，除了在边缘以外都有上下左右四个行动，如果主体走入悬崖区域，回报为-100，走入中间三个圆圈中的任一个，会得到-1的奖励，走入其他所有的位置，回报都为-5。

这是一个经典的Q-learing问题走悬崖的问题，也就是让我们选择的最大利益的路径，可以将图片转化为reward矩阵 [[ -5. -5. -5. -5. -5. -5. -5. -5. -5. -5. -5. -5.] [ -5. -5. -5. -5. -5. -1. -1. -1. -5. -5. -5. -5.] [ -5. -5. -5. -5. -5. -5. -5. -5. -5. -5. -5. -5.] [ -5. -100. -100. -100. -100. -100. -100. -100. -100. -100. -100. 100.]] 我们的目标就是让agent从s(3,0)到达g(3,11)寻找之间利益最大化的路径，学习最优的策略。

2. Q—learing理论分析

在Q-learing算法中有两个特别重要的术语：状态(state),行为(action),在我们这个题目中，state对应的就是我们的agent在悬崖地图中所处的位置，action也就是agent下一步的活动，我的设定是（0， 1 ，2，3，4）对应的为（原地不动，上，下，左，右），需要注意的事我们的next action是随机的但是也是取决于目前的状态（current state）。 我们的核心为Q-learing的转移规则(transition rule),我们依靠这个规则去不断地学习，并把agent学习的经验都储存在Q-stable，并不断迭代去不断地积累经验，最后到达我们设定的目标，这样一个不断试错，学习的过程，最后到达目标的过程为一个episode
$Q(s,a) = R(s,a)+gamma *max lbrace Q( ilde{s}, ilde{a}) brace$
其中$s,a$表示现在状态的state和action，$ilde{s}, ilde{a}$表示下一个状态的state和action，学习参数为$0<gamma<1$，越接近1代表约考虑远期结果。
在Q-table初始化时由于agent对于周围的环境一无所知，所以初始化为零矩阵。

3. 算法实现

参考以下伪代码：

具体程序如见附录
程序的关键点：

1. 核心代码即为伪代码，但是各种方法需要自己实现，在程序中有注释可以参考
2. 需要判断agent在一个状态下可以使用的行动，这一点我用valid_action(self, current_state)实现

**发现的问题：**题目中的目标点为G 的目标值也是为-1，但是程序会走到这个一步但是函数没有收敛到此处，而且由于在奖励点收益大，所以最后的agent会收敛到奖励点处，在三个奖励点处来回移动。所有我将最后的目标点G的值改为了100，函数可以收敛到此处。后来也看到文献中的吸收目标

3. 结果展示

最后到Q-tabel矩阵由于太大放到附录查看，但是同时为了更加直观的看到运行结果，
编写了动态绘图的程序 画出了所有的路径。如果需要查看动态图片请运行程序最终结果如下图：

从图中可以看到agent避过了所有的悬崖，而且收获了所有的奖励最终到达目标。

4.附录

程序： #-*- utf-8 -*- # qvkang import numpy as np import random import turtle as t class Cliff(object): def __init__(self): self.reward = self._reward_init() print(self.reward) self.row = 4 self.col = 12 self.gamma = 0.7 self.start_state = (3, 0) self.end_state = (3, 11) self.q_matrix = np.zeros((4,12,5)) self.main() def _reward_init(self): re = np.ones((4,12))*-5 # 奖励 re[1][5:8] = np.ones((3))*-1 # 悬崖 re[3][1:11] = np.ones((10))*-100 #目标 re[3][11] = 100 return re def valid_action(self, current_state): # 判断当前状态下可以走的方向 itemrow, itemcol = current_state valid = [0] if(itemrow-1 >= 0): valid.append(1) if(itemrow+1 <= self.row-1):valid.append(2) if(itemcol-1 >= 0): valid.append(3) if(itemcol+1 <= self.col-1): valid.append(4) return valid def transition(self, current_state, action): # 从当前状态转移到下一个状态 itemrow, itemcol = current_state if (action is 0): next_state = current_state if (action is 1): next_state = (itemrow-1, itemcol) if (action is 2): next_state = (itemrow+1, itemcol) if (action is 3): next_state = (itemrow, itemcol-1) if (action is 4): next_state = (itemrow, itemcol+1) return(next_state) def _indextoPosition(self,index): index += 1 itemrow = int(np.floor(index/self.col)) itemcol = index%self.col return(itemrow, itemcol) def _positiontoIndex(self,itemrow,itemcol): itemindex = (itemrow)*self.col+itemcol-1 return itemindex def getreward(self, current_state, action): # 得到下一步的奖励 next_state = self.transition(current_state, action) next_row, next_col = next_state r = self.reward[next_row, next_col] return r def path(self): #绘图path 使用turtle的绘图库 t.speed(10) t.begin_fill() paths = [] current_state = self.start_state t.pensize(5) t.penup() t.goto(current_state) t.pendown() #移动到初始位置 paths.append(current_state) while current_state != self.end_state: current_row, current_col = current_state valid_action = self.valid_action(current_state) valid_value = [self.q_matrix[current_row][current_col][x] for x in valid_action] max_value = max(valid_value) action = np.where(self.q_matrix[current_row][current_col] == max_value) print(current_state,'-------------',action) next_state = self.transition(current_state,int(random.choice(action[0]))) paths.append(next_state) next_row,next_col = next_state t.goto(next_col*20, 60-next_row*20) current_state = next_state def main(self): #主要循环迭代 for i in range(1000): current_state = self.start_state while current_state != self.end_state: action = random.choice(self.valid_action(current_state)) next_state = self.transition(current_state, action) future_rewards = [] for action_next in self.valid_action(next_state): next_row, next_col = next_state future_rewards.append(self.q_matrix[next_row][next_col][action_next]) #core trasmite rule q_state = self.getreward(current_state, action) + self.gamma*max(future_rewards) current_row, current_col = current_state self.q_matrix[current_row][current_col][action] = q_state current_state = next_state #print(self.q_matrix) #绘图1000次 for i in range(1000): self.path() print(self.q_matrix) if __name__ == "__main__": Cliff() Q-table矩阵最终结果： [[[ -14.84480118 0. -14.06400168 0. -14.06400168] [ -14.06400168 0. -12.94857383 -14.84480118 -12.94857383] [ -12.94857383 0. -11.35510547 -14.06400168 -11.35510547] [ -11.35510547 0. -9.07872209 -12.94857383 -9.07872209] [ -9.07872209 0. -5.82674585 -11.35510547 -5.82674585] [ -5.82674585 0. -1.1810655 -9.07872209 -5.1810655 ] [ -5.1810655 0. -0.258665 -5.82674585 -4.258665 ] [ -4.258665 0. 1.05905 -5.1810655 -2.94095 ] [ -2.94095 0. 2.9415 -4.258665 2.9415 ] [ 2.9415 0. 11.345 -2.94095 11.345 ] [ 11.345 0. 23.35 2.9415 23.35 ] [ 23.35 0. 40.5 11.345 0. ]] [[ -14.06400168 -14.84480118 -14.84480118 0. -12.94857383] [ -12.94857383 -14.06400168 -14.06400168 -14.06400168 -11.35510547] [ -11.35510547 -12.94857383 -12.94857383 -12.94857383 -9.07872209] [ -9.07872209 -11.35510547 -11.35510547 -11.35510547 -5.82674585] [ -5.82674585 -9.07872209 -9.07872209 -9.07872209 -1.1810655 ] [ -1.1810655 -5.82674585 -5.82674585 -5.82674585 -0.258665 ] [ -0.258665 -5.1810655 -2.94095 -1.1810655 1.05905 ] [ 1.05905 -4.258665 2.9415 -0.258665 2.9415 ] [ 2.9415 -2.94095 11.345 1.05905 11.345 ] [ 11.345 2.9415 23.35 2.9415 23.35 ] [ 23.35 11.345 40.5 11.345 40.5 ] [ 40.5 23.35 65. 23.35 0. ]] [[ -14.84480118 -14.06400168 -15.39136082 0. -14.06400168] [ -14.06400168 -12.94857383 -109.84480118 -14.84480118 -12.94857383] [ -12.94857383 -11.35510547 -109.06400168 -14.06400168 -11.35510547] [ -11.35510547 -9.07872209 -107.94857383 -12.94857383 -9.07872209] [ -9.07872209 -5.82674585 -106.35510547 -11.35510547 -5.82674585] [ -5.82674585 -1.1810655 -104.0787221 -9.07872209 -2.94095 ] [ -2.94095 -0.258665 -102.058665 -5.82674585 2.9415 ] [ 2.9415 1.05905 -97.94095 -2.94095 11.345 ] [ 11.345 2.9415 -92.0585 2.9415 23.35 ] [ 23.35 11.345 -83.655 11.345 40.5 ] [ 40.5 23.35 -30. 23.35 65. ] [ 65. 40.5 100. 40.5 0. ]] [[ -15.39136082 -14.84480118 0. 0. -109.84480118] [-109.84480118 -14.06400168 0. -15.39136082 -109.06400168] [-109.06400168 -12.94857383 0. -109.84480118 -107.94857383] [-107.94857383 -11.35510547 0. -109.06400168 -106.35510547] [-106.35510547 -9.07872209 0. -107.94857383 -104.0787221 ] [-104.0787221 -5.82674585 0. -106.35510547 -102.058665 ] [-102.058665 -2.94095 0. -104.0787221 -97.94095 ] [ -97.94095 2.9415 0. -102.058665 -92.0585 ] [ -92.0585 11.345 0. -97.94095 -83.655 ] [ -83.655 23.35 0. -92.0585 -30. ] [ -30. 40.5 0. -83.655 100. ] [ 0. 0. 0. 0. 0. ]]]
