简介：第二部份主要功能是在棋盘上画棋子，使用到几个重要函数把数组下标转换为像素等。1、工程中添加主要文件如下所示
2、global.cpp#include "global.h"
short piece[48]={0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,
                 0xc7,0xc6,0xc8,0xc5,0xc9,0xc4,0xca,0xc3,0xcb,0xa4,0xaa,0x93,0x95,0x97,0x99,0x9b,
                 0x37,0x36,0x38,0x35,0x39,0x34,0x3a,0x33,0x3b,0x54,0x5a,0x63,0x65,0x67,0x69,0x6b
};
short num(short x,short y,short size)                          //将像素转化为数组下标
{
    short a,b,n;
    if(30<=x&&x<=570&&30<=y&&y<=630)
    {
        x-=size/2;
        y-=size/2;
        a=x%size;
        b=y%size;
        x=(x-a)/size;
        y=(y-b)/size;
        n=(y+3)*16+x+3;
    }else
        n=0;
    return n;
}

short posx(short n,short size)                                //从数组下标获取像素
{
    n=n%16-3;
    n=size*n+size/2+2;
    return n;
}
short posy(short n,short size)
{
    short m=n%16;
    n=(n-m)/16-3;
    n=size*n+size/2+2;
    return n;
}

3、glabal.h#ifndef GLOBAL_H
#define GLOBAL_H

extern short piece[48];
//extern short piece[48];

short num(short x,short y,short size);                          //将像素转化为数组下标
short posx(short n,short size);                                //从数组下标获取像素
short posy(short n,short size);

#endif // GLOBAL_H

4、mainwindow.cpp添加MainWindow::MainWindow(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::MainWindow)
{
    ui->setupUi(this);
    size = 60;
    this->setWindowTitle(tr("楚河汉界"));
    this->setFixedSize(size*10+100,size*10+100);
    this->move(400,0);

    pic[0]=QPixmap("./pic/redgen.png");                          //将棋子对应的图片导入
    pic[1]=QPixmap("./pic/redadv.png");
    pic[2]=QPixmap("./pic/redadv.png");
    pic[3]=QPixmap("./pic/redele.png");
    pic[4]=QPixmap("./pic/redele.png");
    pic[5]=QPixmap("./pic/redhorse.png");
    pic[6]=QPixmap("./pic/redhorse.png");
    pic[7]=QPixmap("./pic/redchar.png");
    pic[8]=QPixmap("./pic/redchar.png");
    pic[9]=QPixmap("./pic/redcan.png");
    pic[10]=QPixmap("./pic/redcan.png");
    pic[11]=QPixmap("./pic/redsod.png");
    pic[12]=QPixmap("./pic/redsod.png");
    pic[13]=QPixmap("./pic/redsod.png");
    pic[14]=QPixmap("./pic/redsod.png");
    pic[15]=QPixmap("./pic/redsod.png");
    pic[16]=QPixmap("./pic/blackgen.png");
    pic[17]=QPixmap("./pic/blackadv.png");
    pic[18]=QPixmap("./pic/blackadv.png");
    pic[19]=QPixmap("./pic/blackele.png");
    pic[20]=QPixmap("./pic/blackele.png");
    pic[21]=QPixmap("./pic/blackhorse.png");
    pic[22]=QPixmap("./pic/blackhorse.png");
    pic[23]=QPixmap("./pic/blackchar.png");
    pic[24]=QPixmap("./pic/blackchar.png");
    pic[25]=QPixmap("./pic/blackcan.png");
    pic[26]=QPixmap("./pic/blackcan.png");
    pic[27]=QPixmap("./pic/blacksod.png");
    pic[28]=QPixmap("./pic/blacksod.png");
    pic[29]=QPixmap("./pic/blacksod.png");
    pic[30]=QPixmap("./pic/blacksod.png");
    pic[31]=QPixmap("./pic/blacksod.png");
    pic[32]=QPixmap("./pic/redboundary.png");
    pic[33]=QPixmap("./pic/blackboundary.png");

    //画32个棋子
    int i=0;
    for(;i<=31;i++)                                             //定义棋子
    {
        chess[i]=new QLabel(this);
        chess[i]->setPixmap(pic[i]);
        chess[i]->setGeometry(posx(piece[i+16],size),posy(piece[i+16],size),56,56);
        qDebug() << posx(piece[i+16],size) << posy(piece[i+16],size) << endl;
    }
}

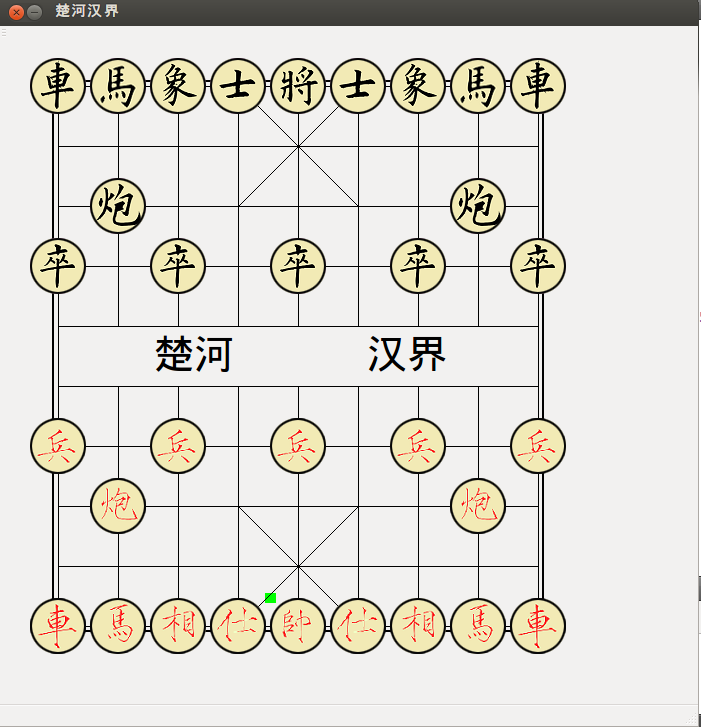

5、运行结果
