利用MATLAB计算SPWM脉冲宽度与并应用STM32输出

2019-04-15 16:43发布

转自 光电科技协会 王诚博
http://blog.csdn.net/wcb425499094/article/details/76703042
先上一张spwm波形生成原理图:
首先利用MATLAB产生三角波与正弦波叠加: [cpp] view plain copy print?
  1. %% 产生正弦波与三角波叠加
  2. y1=abs(sawtooth(a*2*pi*m,0.5));%三角波
  3. y2=0.8*sin(a*pi);%正弦波
  4. figure(1)
  5. plot(a,y1,a,y2)
%% 产生正弦波与三角波叠加 y1=abs(sawtooth(a*2*pi*m,0.5));%三角波 y2=0.8*sin(a*pi);%正弦波 figure(1) plot(a,y1,a,y2) 如图:
接着取交点,想了两种方法: 1.直接图片上取点,该方法不精确,毕竟只能目测和用鼠标点击。 [cpp] view plain copy print?
  1. [X Y]=ginput(40)%图像中取点(不精确)
  2. save('kuan','X');
[X Y]=ginput(40)%图像中取点(不精确) save('kuan','X'); 2.做差,使用阈值。 [cpp] view plain copy print?
  1. for i=1:length(y1)%利用差值取点,设定阈值
  2.     if(abs(y1(i)-y2(i))<0.01)
  3.         X(P)=a(i);
  4.         P=P+1;
  5.     end
  6. end
for i=1:length(y1)%利用差值取点,设定阈值 if(abs(y1(i)-y2(i))<0.01) X(P)=a(i); P=P+1; end end

阈值设置为0.001只取出20个点,但如上图应该有40个点,所以增大阈值,设为0.01。 取出了200个点,如图:

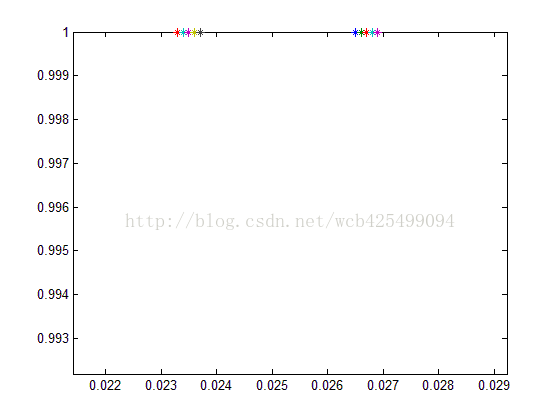

放大观察: 可知每个交点取出了5个点,40个点刚好200个,所以假设正弦波与三角波交点附近正弦波斜率不变,所以采用平均的方法: [html] view plain copy print?
  1. for i=0:m*4-1%取平均值
  2.         x(i+1)=(X((i+1)*5)+X(i*5+1))/2;
  3. end
for i=0:m*4-1%取平均值 x(i+1)=(X((i+1)*5)+X(i*5+1))/2; end 然后就可以画出spwm波形: [cpp] view plain copy print?
  1. %% 画出SPWM波形
  2. for n=1:m*2
  3.        y3(1:floor(x(1)*10000))=0;
  4.        y3(floor(x(2*n-1)*10000):floor(x(2*n)*10000))=0.8;
  5.        if(n==20)
  6.        break
  7.        end
  8.        y3(floor(x(2*n)*10000):floor(x(2*(n+1)-1)*10000))=0;
  9.        y3(floor(x(40)*10000):length(y3))=0;
  10. end
  11. figure(4)
  12. plot(a,y3)
  13. axis([0 1 0 1])
%% 画出SPWM波形 for n=1:m*2 y3(1:floor(x(1)*10000))=0; y3(floor(x(2*n-1)*10000):floor(x(2*n)*10000))=0.8; if(n==20) break end y3(floor(x(2*n)*10000):floor(x(2*(n+1)-1)*10000))=0; y3(floor(x(40)*10000):length(y3))=0; end figure(4) plot(a,y3) axis([0 1 0 1])

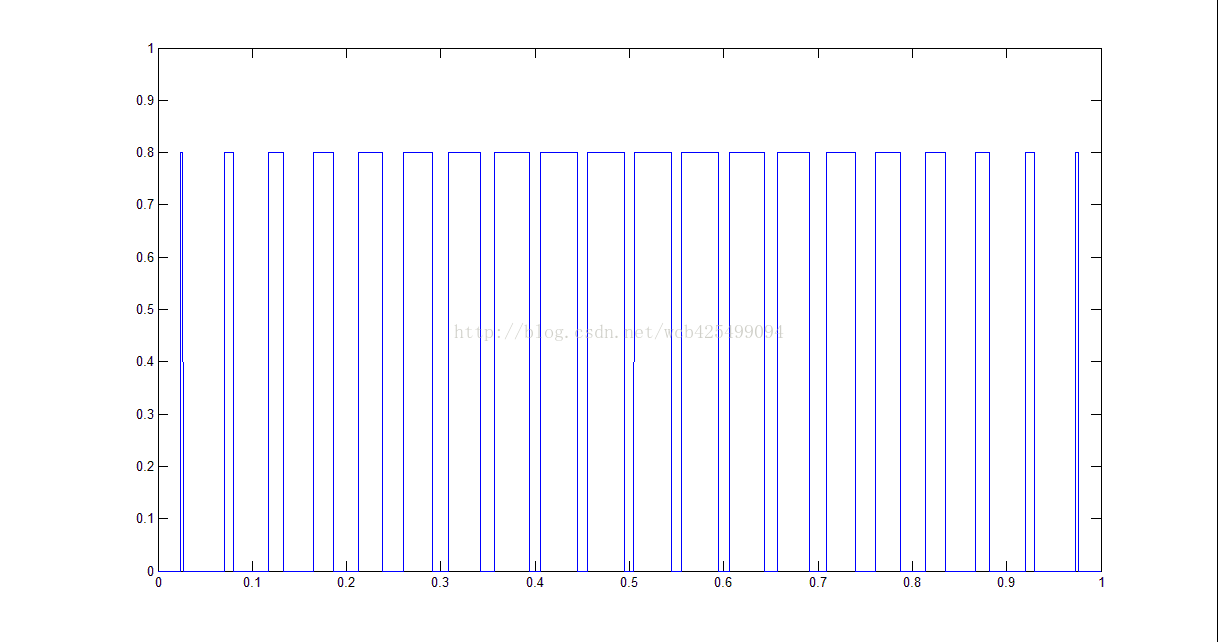

如图:
最后,计算正弦波半个周期的spwm的周期和占空比(使用stm32输出比较器输出pwm波): [cpp] view plain copy print?
  1. %% 计算SPWM的周期,占空比(利用输出比较器)
  2. for i=1:m
  3.     tp(i)=(x(2*(i+1)-1)-x(2*i-1))*th;%spwm周期
  4.     ti(i)=(x(2*i)-x(2*i-1))*th;%脉冲宽度
  5. end
  6. tc=[floor(tp./max(tp)*255),fliplr(floor(tp./max(tp)*255))];%单片机定时器从1计到255(最大spwm周期)
  7. dlmwrite('cycle.c',tc);%写入c文件
  8. p=ti./tp;%计算spwm占空比
  9. p1=[p fliplr(p)];%半个正弦波周期spwm的占空比序列
  10. p1=floor(p1.*tc);%单片机定时器基准脉冲宽度
  11. dlmwrite('dac_sinWave.c',p1);
%% 计算SPWM的周期,占空比(利用输出比较器) for i=1:m tp(i)=(x(2*(i+1)-1)-x(2*i-1))*th;%spwm周期 ti(i)=(x(2*i)-x(2*i-1))*th;%脉冲宽度 end tc=[floor(tp./max(tp)*255),fliplr(floor(tp./max(tp)*255))];%单片机定时器从1计到255(最大spwm周期) dlmwrite('cycle.c',tc);%写入c文件 p=ti./tp;%计算spwm占空比 p1=[p fliplr(p)];%半个正弦波周期spwm的占空比序列 p1=floor(p1.*tc);%单片机定时器基准脉冲宽度 dlmwrite('dac_sinWave.c',p1); 如果使用DAC描点: [cpp] view plain copy print?
  1. b=floor(linspace(0,1,258)*10000);
  2. for i=1:256
  3. y4(i)=floor(y3(b(i+1))*4095);
  4. end
  5. dlmwrite('dac_SPWM.c',y4);
b=floor(linspace(0,1,258)*10000); for i=1:256 y4(i)=floor(y3(b(i+1))*4095); end dlmwrite('dac_SPWM.c',y4); 但该方法速度太慢,而且单片机利用效率太低,所以舍弃。 下面粘上MATLAB源代码: [cpp] view plain copy print?
  1. %% 变量初始化
  2. t=0.02;%正弦波周期
  3. th=t/2;%半波周期
  4. m=10;%三角波周期数
  5. a=0:0.0001:1;
  6. y3=0:0.0001:1;
  7. P=1;
  8. x=zeros(1);%分配空间
  9. tp=zeros(1);
  10. ti=zeros(1);
  11. %% 产生正弦波与三角波叠加
  12. y1=abs(sawtooth(a*2*pi*m,0.5));%三角波
  13. y2=0.8*sin(a*pi);%正弦波
  14. figure(1)
  15. plot(a,y1,a,y2)
  16. %% 取点
  17. %[X Y]=ginput(40)%图像中取点(不精确)
  18. % save('kuan','X');
  19. for i=1:length(y1)%利用差值取点,设定阈值
  20.     if(abs(y1(i)-y2(i))<0.01)
  21.         X(P)=a(i);
  22.         P=P+1;
  23.     end
  24. end
  25. figure(2)
  26. plot(a,y1,a,y2,X,1,'*')
  27. for i=0:m*4-1%取平均值
  28.         x(i+1)=(X((i+1)*5)+X(i*5+1))/2;
  29. end
  30. figure(3)
  31. plot(a,y1,a,y2,x,1,'*')
  32. %% 画出SPWM波形
  33. for n=1:m*2
  34.        y3(1:floor(x(1)*10000))=0;
  35.        y3(floor(x(2*n-1)*10000):floor(x(2*n)*10000))=0.8;
  36.        if(n==20)
  37.        break
  38.        end
  39.        y3(floor(x(2*n)*10000):floor(x(2*(n+1)-1)*10000))=0;
  40.        y3(floor(x(40)*10000):length(y3))=0;
  41. end
  42. figure(4)
  43. plot(a,y3)
  44. axis([0 1 0 1])
  45. %% DAC描点法(速度太慢舍弃)
  46. % b=floor(linspace(0,1,258)*10000);
  47. for i=1:256
  48. % y4(i)=floor(y3(b(i+1))*4095);
  49. % end
  50. % dlmwrite('dac_SPWM.c',y4);
  51. %% 计算SPWM的周期,占空比(利用输出比较器)
  52. for i=1:m
  53.     tp(i)=(x(2*(i+1)-1)-x(2*i-1))*th;%spwm周期
  54.     ti(i)=(x(2*i)-x(2*i-1))*th;%脉冲宽度
  55. end
  56. tc=[floor(tp./max(tp)*255),fliplr(floor(tp./max(tp)*255))];%单片机定时器从1计到255(最大spwm周期)
  57. dlmwrite('cycle.c',tc);%写入c文件
  58. p=ti./tp;%计算spwm占空比
  59. p1=[p fliplr(p)];%半个正弦波周期spwm的占空比序列
  60. p1=floor(p1.*tc);%单片机定时器基准脉冲宽度
  61. dlmwrite('dac_sinWave.c',p1);
  62.
%% 变量初始化 t=0.02;%正弦波周期 th=t/2;%半波周期 m=10;%三角波周期数 a=0:0.0001:1; y3=0:0.0001:1; P=1; x=zeros(1);%分配空间 tp=zeros(1); ti=zeros(1); %% 产生正弦波与三角波叠加 y1=abs(sawtooth(a*2*pi*m,0.5));%三角波 y2=0.8*sin(a*pi);%正弦波 figure(1) plot(a,y1,a,y2) %% 取点 %[X Y]=ginput(40)%图像中取点(不精确) % save('kuan','X'); for i=1:length(y1)%利用差值取点,设定阈值 if(abs(y1(i)-y2(i))<0.01) X(P)=a(i); P=P+1; end end figure(2) plot(a,y1,a,y2,X,1,'*') for i=0:m*4-1%取平均值 x(i+1)=(X((i+1)*5)+X(i*5+1))/2; end figure(3) plot(a,y1,a,y2,x,1,'*') %% 画出SPWM波形 for n=1:m*2 y3(1:floor(x(1)*10000))=0; y3(floor(x(2*n-1)*10000):floor(x(2*n)*10000))=0.8; if(n==20) break end y3(floor(x(2*n)*10000):floor(x(2*(n+1)-1)*10000))=0; y3(floor(x(40)*10000):length(y3))=0; end figure(4) plot(a,y3) axis([0 1 0 1]) %% DAC描点法(速度太慢舍弃) % b=floor(linspace(0,1,258)*10000); % for i=1:256 % y4(i)=floor(y3(b(i+1))*4095); % end % dlmwrite('dac_SPWM.c',y4); %% 计算SPWM的周期,占空比(利用输出比较器) for i=1:m tp(i)=(x(2*(i+1)-1)-x(2*i-1))*th;%spwm周期 ti(i)=(x(2*i)-x(2*i-1))*th;%脉冲宽度 end tc=[floor(tp./max(tp)*255),fliplr(floor(tp./max(tp)*255))];%单片机定时器从1计到255(最大spwm周期) dlmwrite('cycle.c',tc);%写入c文件 p=ti./tp;%计算spwm占空比 p1=[p fliplr(p)];%半个正弦波周期spwm的占空比序列 p1=floor(p1.*tc);%单片机定时器基准脉冲宽度 dlmwrite('dac_sinWave.c',p1);

stm32程序是用野火的例程改的,经过MATLAB计算得出周期与占空比(放入定时器的自动重装载寄存器ARR和比较寄存器CRR): [cpp] view plain copy print?
  1. uint8_t indexWave[] = {16,47,78,106,132,155,174,188,198,203,203,198,
  2. 188,174,155,132,106,78,47,16};
  3. uint8_t indexcycle[] = {241,241,242,243,244,246,248,250,252,255,255,
  4. 252,250,248,246,244,243,242,241,241};
uint8_t indexWave[] = {16,47,78,106,132,155,174,188,198,203,203,198, 188,174,155,132,106,78,47,16}; uint8_t indexcycle[] = {241,241,242,243,244,246,248,250,252,255,255, 252,250,248,246,244,243,242,241,241};
在中断中改变寄存器的值(三路输出): [cpp] view plain copy print?
  1. TIM3->ARR = indexcycle[pwm_index];
  2. TIM3->CCR2 = indexWave[pwm_index];
  3. TIM3->CCR3 = indexWave[pwm_index];
  4. TIM3->CCR4 = indexWave[pwm_index];
  5. pwm_index++;
TIM3->ARR = indexcycle[pwm_index]; TIM3->CCR2 = indexWave[pwm_index]; TIM3->CCR3 = indexWave[pwm_index]; TIM3->CCR4 = indexWave[pwm_index]; pwm_index++;

定时器配置 [cpp] view plain copy print?
  1. /*基本定时器配置*/
/*基本定时器配置*/ [cpp] view plain copy print?
  1. TIM_TimeBaseStructure.TIM_Period = 255;
  2. TIM_TimeBaseStructure.TIM_Prescaler = 0;
  3. TIM_TimeBaseStructure.TIM_ClockDivision = TIM_CKD_DIV1 ;
  4. TIM_TimeBaseStructure.TIM_CounterMode = TIM_CounterMode_Up;
  5. TIM_TimeBaseInit(TIM3, &TIM_TimeBaseStructure);
TIM_TimeBaseStructure.TIM_Period = 255; TIM_TimeBaseStructure.TIM_Prescaler = 0; TIM_TimeBaseStructure.TIM_ClockDivision = TIM_CKD_DIV1 ; TIM_TimeBaseStructure.TIM_CounterMode = TIM_CounterMode_Up; TIM_TimeBaseInit(TIM3, &TIM_TimeBaseStructure); [cpp] view plain copy print?
  1. /*PWM模式配置*/
/*PWM模式配置*/ [cpp] view plain copy print?
  1. TIM_OCInitStructure.TIM_OCMode = TIM_OCMode_PWM1;
  2.  TIM_OCInitStructure.TIM_OutputState = TIM_OutputState_Enable;
  3.  TIM_OCInitStructure.TIM_Pulse = 0;
  4.  TIM_OCInitStructure.TIM_OCPolarity = TIM_OCPolarity_High;                                                          "font-family: Arial, Helvetica, sans-serif;">
TIM_OCInitStructure.TIM_OCMode = TIM_OCMode_PWM1; TIM_OCInitStructure.TIM_OutputState = TIM_OutputState_Enable; TIM_OCInitStructure.TIM_Pulse = 0; TIM_OCInitStructure.TIM_OCPolarity = TIM_OCPolarity_High; [cpp] view plain copy print?
  1. TIM_OC2Init(TIM3, &TIM_OCInitStructure);
  2. TIM_OC2PreloadConfig(TIM3, TIM_OCPreload_Enable);
  3.
  4. TIM_OC3Init(TIM3, &TIM_OCInitStructure);
  5. TIM_OC3PreloadConfig(TIM3, TIM_OCPreload_Enable);
  6.
  7. TIM_OC4Init(TIM3, &TIM_OCInitStructure);
  8. TIM_OC4PreloadConfig(TIM3, TIM_OCPreload_Enable);
  9. TIM_ARRPreloadConfig(TIM3, ENABLE);
  10. /* TIM3 enable counter */
  11. TIM_Cmd(TIM3, ENABLE);
  12.
  13. TIM_ITConfig(TIM3,TIM_IT_Update, ENABLE);
  14.
  15. NVIC_Config_PWM();
TIM_OC2Init(TIM3, &TIM_OCInitStructure); TIM_OC2PreloadConfig(TIM3, TIM_OCPreload_Enable); TIM_OC3Init(TIM3, &TIM_OCInitStructure); TIM_OC3PreloadConfig(TIM3, TIM_OCPreload_Enable); TIM_OC4Init(TIM3, &TIM_OCInitStructure); TIM_OC4PreloadConfig(TIM3, TIM_OCPreload_Enable); TIM_ARRPreloadConfig(TIM3, ENABLE); /* TIM3 enable counter */ TIM_Cmd(TIM3, ENABLE); TIM_ITConfig(TIM3,TIM_IT_Update, ENABLE); NVIC_Config_PWM();

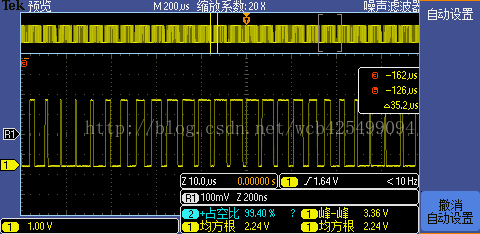

使用示波器观察得到SPWM输出: 看出这是SPWM波形。
