嵌入式设备中，有些需要得到实时的比较准确的时间，以和服务器或是设备之间进行时间同步，但是很多嵌入式设备又不能通过人工设置时间的方式来同步时间，需要自动从网络上获取时间，这就需要用到NTP。NTP是网络时间协议(Network Time Protocol)的简称，它是用来同步网络中各个计算机设备的时间的协议。目前有第三方的代码可以支持NTP，本文讲诉ntpclient的用法。 ntpclient的下载地址是：http://doolittle.icarus.com/ntpclient/
运行命令如：./ntpclient -c 1 -h time.nist.gov

解压ntpclient_2015_365.tar.gz后将ntpclient.c，ntpclient.h，phaselock.c这三个文件放入你的项目中，更改ntpclient.c中的main()函数即可。

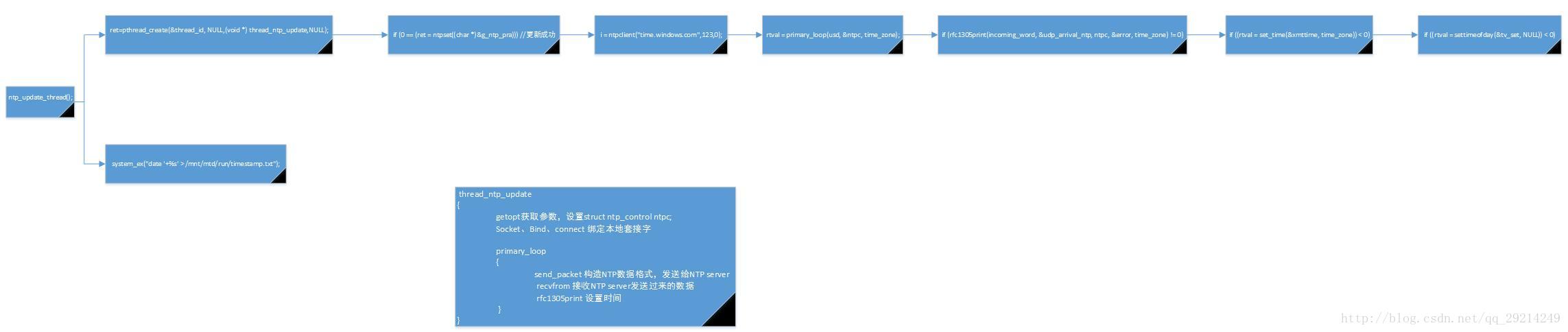

ntpclient 代码流程图：


ntpclient.c
/* * ntpclient.c - NTP client * * Copyright (C) 1997, 1999, 2000, 2003, 2006, 2007, 2010, 2015 Larry Doolittle * * This program is free software; you can redistribute it and/or modify * it under the terms of the GNU General Public License (Version 2, * June 1991) as published by the Free Software Foundation. At the * time of writing, that license was published by the FSF with the URL * http://www.gnu.org/copyleft/gpl.html, and is incorporated herein by * reference. * * This program is distributed in the hope that it will be useful, * but WITHOUT ANY WARRANTY; without even the implied warranty of * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the * GNU General Public License for more details. * * Possible future improvements: * - Write more documentation :-( * - Support leap second processing * - Support IPv6 * - Support multiple (interleaved) servers * * Compile with -DPRECISION_SIOCGSTAMP if your machine really has it. * Older kernels (before the tickless era, pre 3.0?) only give an answer * to the nearest jiffy (1/100 second), not so interesting for us. * * If the compile gives you any flak, check below in the section * labelled "XXX fixme - non-automatic build configuration". */ #include #include #include #include #include #include #include /* gethostbyname */ #include #include #include #include #ifdef PRECISION_SIOCGSTAMP #include #endif #ifdef USE_OBSOLETE_GETTIMEOFDAY #include #endif #include "ntpclient.h" /* Default to the RFC-4330 specified value */ #ifndef MIN_INTERVAL #define MIN_INTERVAL 15 #endif #ifdef ENABLE_DEBUG #define DEBUG_OPTION "d" int debug=0; #else #define DEBUG_OPTION #endif #ifdef ENABLE_REPLAY #define REPLAY_OPTION "r" #else #define REPLAY_OPTION #endif extern char *optarg; /* according to man 2 getopt */ #include typedef uint32_t u32; /* universal for C99 */ /* typedef u_int32_t u32; older Linux installs? */ /* XXX fixme - non-automatic build configuration */ #ifdef __linux__ #include #include #include #include #else extern struct hostent *gethostbyname(const char *name); extern int h_errno; #define herror(hostname) fprintf(stderr,"Error %d looking up hostname %s ", h_errno,hostname) #endif /* end configuration for host systems */ #define JAN_1970 0x83aa7e80 /* 2208988800 1970 - 1900 in seconds */ #define NTP_PORT (123) /* How to multiply by 4294.967296 quickly (and not quite exactly) * without using floating point or greater than 32-bit integers. * If you want to fix the last 12 microseconds of error, add in * (2911*(x))>>28) */ #define NTPFRAC(x) ( 4294*(x) + ( (1981*(x))>>11 ) ) /* The reverse of the above, needed if we want to set our microsecond * clock (via clock_settime) based on the incoming time in NTP format. * Basically exact. */ #define USEC(x) ( ( (x) >> 12 ) - 759 * ( ( ( (x) >> 10 ) + 32768 ) >> 16 ) ) /* Converts NTP delay and dispersion, apparently in seconds scaled * by 65536, to microseconds. RFC-1305 states this time is in seconds, * doesn't mention the scaling. * Should somehow be the same as 1000000 * x / 65536 */ #define sec2u(x) ( (x) * 15.2587890625 ) struct ntptime { unsigned int coarse; unsigned int fine; }; struct ntp_control { u32 time_of_send[2]; int live; int set_clock; /* non-zero presumably needs root privs */ int probe_count; int cycle_time; int goodness; int cross_check; char serv_addr[4]; }; /* prototypes for some local routines */ static void send_packet(int usd, u32 time_sent[2]); static int rfc1305print(u32 *data, struct ntptime *arrival, struct ntp_control *ntpc, int *error); /* static void udp_handle(int usd, char *data, int data_len, struct sockaddr *sa_source, int sa_len); */ static int get_current_freq(void) { /* OS dependent routine to get the current value of clock frequency. */ #ifdef __linux__ struct timex txc; txc.modes=0; if (adjtimex(&txc) < 0) { perror("adjtimex"); exit(1); } return txc.freq; #else return 0; #endif } static int set_freq(int new_freq) { /* OS dependent routine to set a new value of clock frequency. */ #ifdef __linux__ struct timex txc; txc.modes = ADJ_FREQUENCY; txc.freq = new_freq; if (adjtimex(&txc) < 0) { perror("adjtimex"); exit(1); } return txc.freq; #else return 0; #endif } static void set_time(struct ntptime *new) { #ifndef USE_OBSOLETE_GETTIMEOFDAY /* POSIX 1003.1-2001 way to set the system clock */ struct timespec tv_set; /* it would be even better to subtract half the slop */ tv_set.tv_sec = new->coarse - JAN_1970; /* divide xmttime.fine by 4294.967296 */ tv_set.tv_nsec = USEC(new->fine)*1000; if (clock_settime(CLOCK_REALTIME, &tv_set)<0) { perror("clock_settime"); exit(1); } if (debug) { printf("set time to %lu.%.9lu ", tv_set.tv_sec, tv_set.tv_nsec); } #else /* Traditional Linux way to set the system clock */ struct timeval tv_set; /* it would be even better to subtract half the slop */ tv_set.tv_sec = new->coarse - JAN_1970; /* divide xmttime.fine by 4294.967296 */ tv_set.tv_usec = USEC(new->fine); if (settimeofday(&tv_set,NULL)<0) { perror("settimeofday"); exit(1); } if (debug) { printf("set time to %lu.%.6lu ", tv_set.tv_sec, tv_set.tv_usec); } #endif } static void ntpc_gettime(u32 *time_coarse, u32 *time_fine) { #ifndef USE_OBSOLETE_GETTIMEOFDAY /* POSIX 1003.1-2001 way to get the system time */ struct timespec now; clock_gettime(CLOCK_REALTIME, &now); *time_coarse = now.tv_sec + JAN_1970; *time_fine = NTPFRAC(now.tv_nsec/1000); #else /* Traditional Linux way to get the system time */ struct timeval now; gettimeofday(&now, NULL); *time_coarse = now.tv_sec + JAN_1970; *time_fine = NTPFRAC(now.tv_usec); #endif } static void send_packet(int usd, u32 time_sent[2]) { u32 data[12]; #define LI 0 #define VN 3 #define MODE 3 #define STRATUM 0 #define POLL 4 #define PREC -6 if (debug) fprintf(stderr,"Sending ... "); if (sizeof data != 48) { fprintf(stderr,"size error "); return; } memset(data, 0, sizeof data); data[0] = htonl ( ( LI << 30 ) | ( VN << 27 ) | ( MODE << 24 ) | ( STRATUM << 16) | ( POLL << 8 ) | ( PREC & 0xff ) ); data[1] = htonl(1<<16); /* Root Delay (seconds) */ data[2] = htonl(1<<16); /* Root Dispersion (seconds) */ ntpc_gettime(time_sent, time_sent+1); data[10] = htonl(time_sent[0]); /* Transmit Timestamp coarse */ data[11] = htonl(time_sent[1]); /* Transmit Timestamp fine */ send(usd,data,48,0); } static void get_packet_timestamp(int usd, struct ntptime *udp_arrival_ntp) { #ifdef PRECISION_SIOCGSTAMP struct timeval udp_arrival; if ( ioctl(usd, SIOCGSTAMP, &udp_arrival) < 0 ) { perror("ioctl-SIOCGSTAMP"); ntpc_gettime(&udp_arrival_ntp->coarse, &udp_arrival_ntp->fine); } else { udp_arrival_ntp->coarse = udp_arrival.tv_sec + JAN_1970; udp_arrival_ntp->fine = NTPFRAC(udp_arrival.tv_usec); } #else (void) usd; /* not used */ ntpc_gettime(&udp_arrival_ntp->coarse, &udp_arrival_ntp->fine); #endif } static int check_source(int data_len, struct sockaddr_in *sa_in, unsigned int sa_len, struct ntp_control *ntpc) { struct sockaddr *sa_source = (struct sockaddr *) sa_in; (void) sa_len; /* not used */ if (debug) { printf("packet of length %d received ",data_len); if (sa_source->sa_family==AF_INET) { printf("Source: INET Port %d host %s ", ntohs(sa_in->sin_port),inet_ntoa(sa_in->sin_addr)); } else { printf("Source: Address family %d ",sa_source->sa_family); } } /* we could check that the source is the server we expect, but * Denys Vlasenko recommends against it: multihomed hosts get it * wrong too often. */ #if 0 if (memcmp(ntpc->serv_addr, &(sa_in->sin_addr), 4)!=0) { return 1; /* fault */ } #else (void) ntpc; /* not used */ #endif if (NTP_PORT != ntohs(sa_in->sin_port)) { return 1; /* fault */ } return 0; } static double ntpdiff( struct ntptime *start, struct ntptime *stop) { int a; unsigned int b; a = stop->coarse - start->coarse; if (stop->fine >= start->fine) { b = stop->fine - start->fine; } else { b = start->fine - stop->fine; b = ~b; a -= 1; } return a*1.e6 + b * (1.e6/4294967296.0); } /* Does more than print, so this name is bogus. * It also makes time adjustments, both sudden (-s) * and phase-locking (-l). * sets *error to the number of microseconds uncertainty in answer * returns 0 normally, 1 if the message fails sanity checks */ static int rfc1305print(u32 *data, struct ntptime *arrival, struct ntp_control *ntpc, int *error) { /* straight out of RFC-1305 Appendix A */ int li, vn, mode, stratum, poll, prec; int delay, disp, refid; struct ntptime reftime, orgtime, rectime, xmttime; double el_time,st_time,skew1,skew2; int freq; #ifdef ENABLE_DEBUG const char *drop_reason=NULL; #endif #define Data(i) ntohl(((u32 *)data)[i]) li = Data(0) >> 30 & 0x03; vn = Data(0) >> 27 & 0x07; mode = Data(0) >> 24 & 0x07; stratum = Data(0) >> 16 & 0xff; poll = Data(0) >> 8 & 0xff; prec = Data(0) & 0xff; if (prec & 0x80) prec|=0xffffff00; delay = Data(1); disp = Data(2); refid = Data(3); reftime.coarse = Data(4); reftime.fine = Data(5); orgtime.coarse = Data(6); orgtime.fine = Data(7); rectime.coarse = Data(8); rectime.fine = Data(9); xmttime.coarse = Data(10); xmttime.fine = Data(11); #undef Data if (debug) { printf("LI=%d VN=%d Mode=%d Stratum=%d Poll=%d Precision=%d ", li, vn, mode, stratum, poll, prec); printf("Delay=%.1f Dispersion=%.1f Refid=%u.%u.%u.%u ", sec2u(delay),sec2u(disp), refid>>24&0xff, refid>>16&0xff, refid>>8&0xff, refid&0xff); printf("Reference %u.%.6u ", reftime.coarse, USEC(reftime.fine)); printf("(sent) %u.%.6u ", ntpc->time_of_send[0], USEC(ntpc->time_of_send[1])); printf("Originate %u.%.6u ", orgtime.coarse, USEC(orgtime.fine)); printf("Receive %u.%.6u ", rectime.coarse, USEC(rectime.fine)); printf("Transmit %u.%.6u ", xmttime.coarse, USEC(xmttime.fine)); printf("Our recv %u.%.6u ", arrival->coarse, USEC(arrival->fine)); } el_time=ntpdiff(&orgtime,arrival); /* elapsed */ st_time=ntpdiff(&rectime,&xmttime); /* stall */ skew1=ntpdiff(&orgtime,&rectime); skew2=ntpdiff(&xmttime,arrival); freq=get_current_freq(); if (debug) { printf("Total elapsed: %9.2f " "Server stall: %9.2f " "Slop: %9.2f ", el_time, st_time, el_time-st_time); printf("Skew: %9.2f " "Frequency: %9d " " day second elapsed stall skew dispersion freq ", (skew1-skew2)/2, freq); } /* error checking, see RFC-4330 section 5 */ #ifdef ENABLE_DEBUG #define FAIL(x) do { drop_reason=(x); goto fail;} while (0) #else #define FAIL(x) goto fail; #endif if (ntpc->cross_check) { if (li == 3) FAIL("LI==3"); /* unsynchronized */ if (vn < 3) FAIL("VN<3"); /* RFC-4330 documents SNTP v4, but we interoperate with NTP v3 */ if (mode != 4) FAIL("MODE!=3"); if (orgtime.coarse != ntpc->time_of_send[0] || orgtime.fine != ntpc->time_of_send[1] ) FAIL("ORG!=sent"); if (xmttime.coarse == 0 && xmttime.fine == 0) FAIL("XMT==0"); if (delay > 65536 || delay < -65536) FAIL("abs(DELAY)>65536"); if (disp > 65536 || disp < -65536) FAIL("abs(DISP)>65536"); if (stratum == 0) FAIL("STRATUM==0"); /* kiss o' death */ #undef FAIL } /* XXX should I do this if debug flag is set? */ if (ntpc->set_clock) { /* you'd better be root, or ntpclient will exit here! */ set_time(&xmttime); } /* Not the ideal order for printing, but we want to be sure * to do all the time-sensitive thinking (and time setting) * before we start the output, especially fflush() (which * could be slow). Of course, if debug is turned on, speed * has gone down the drain anyway. */ if (ntpc->live) { int new_freq; new_freq = contemplate_data(arrival->coarse, (skew1-skew2)/2, el_time+sec2u(disp), freq); if (!debug && new_freq != freq) set_freq(new_freq); } printf("%d %.5d.%.3d %8.1f %8.1f %8.1f %8.1f %9d ", arrival->coarse/86400, arrival->coarse%86400, arrival->fine/4294967, el_time, st_time, (skew1-skew2)/2, sec2u(disp), freq); fflush(stdout); *error = el_time-st_time; return 0; fail: #ifdef ENABLE_DEBUG printf("%d %.5d.%.3d rejected packet: %s ", arrival->coarse/86400, arrival->coarse%86400, arrival->fine/4294967, drop_reason); #else printf("%d %.5d.%.3d rejected packet ", arrival->coarse/86400, arrival->coarse%86400, arrival->fine/4294967); #endif return 1; } static void stuff_net_addr(struct in_addr *p, char *hostname) { struct hostent *ntpserver; ntpserver=gethostbyname(hostname); if (ntpserver == NULL) { herror(hostname); exit(1); } if (ntpserver->h_length != 4) { /* IPv4 only, until I get a chance to test IPv6 */ fprintf(stderr,"oops %d ",ntpserver->h_length); exit(1); } memcpy(&(p->s_addr),ntpserver->h_addr_list[0],4); } static void setup_receive(int usd, unsigned int interface, short port) { struct sockaddr_in sa_rcvr; memset(&sa_rcvr, 0, sizeof sa_rcvr); sa_rcvr.sin_family=AF_INET; sa_rcvr.sin_addr.s_addr=htonl(interface); sa_rcvr.sin_port=htons(port); if(bind(usd,(struct sockaddr *) &sa_rcvr,sizeof sa_rcvr) == -1) { perror("bind"); fprintf(stderr,"could not bind to udp port %d ",port); exit(1); } /* listen(usd,3); this isn't TCP; thanks Alexander! */ } static void setup_transmit(int usd, char *host, short port, struct ntp_control *ntpc) { struct sockaddr_in sa_dest; memset(&sa_dest, 0, sizeof sa_dest); sa_dest.sin_family=AF_INET; stuff_net_addr(&(sa_dest.sin_addr),host); memcpy(ntpc->serv_addr,&(sa_dest.sin_addr),4); /* XXX asumes IPv4 */ sa_dest.sin_port=htons(port); if (connect(usd,(struct sockaddr *)&sa_dest,sizeof sa_dest)==-1) {perror("connect");exit(1);} } static void primary_loop(int usd, struct ntp_control *ntpc) { fd_set fds; struct sockaddr_in sa_xmit_in; int i, pack_len, probes_sent, error; socklen_t sa_xmit_len; struct timeval to; struct ntptime udp_arrival_ntp; static u32 incoming_word[325]; #define incoming ((char *) incoming_word) #define sizeof_incoming (sizeof incoming_word) if (debug) printf("Listening... "); probes_sent=0; sa_xmit_len=sizeof sa_xmit_in; to.tv_sec=0; to.tv_usec=0; for (;;) { FD_ZERO(&fds); FD_SET(usd, &fds); i = select(usd+1, &fds, NULL, NULL, &to); /* Wait on read or error */ if ((i!=1)||(!FD_ISSET(usd,&fds))) { if (i < 0) { if (errno != EINTR) perror("select"); continue; } if (to.tv_sec == 0) { if (probes_sent >= ntpc->probe_count && ntpc->probe_count != 0) break; send_packet(usd,ntpc->time_of_send); ++probes_sent; to.tv_sec=ntpc->cycle_time; to.tv_usec=0; } continue; } pack_len=recvfrom(usd,incoming,sizeof_incoming,0, (struct sockaddr *) &sa_xmit_in,&sa_xmit_len); error = ntpc->goodness; if (pack_len<0) { perror("recvfrom"); } else if (pack_len>0 && (unsigned)pack_lengoodness && ntpc->goodness != 0) || (probes_sent >= ntpc->probe_count && ntpc->probe_count != 0)) { ntpc->set_clock = 0; if (!ntpc->live) break; } } #undef incoming #undef sizeof_incoming } #ifdef ENABLE_REPLAY static void do_replay(void) { char line[100]; int n, day, freq, absolute; float sec, el_time, st_time, disp; double skew, errorbar; int simulated_freq = 0; unsigned int last_fake_time = 0; double fake_delta_time = 0.0; while (fgets(line,sizeof line,stdin)) { n=sscanf(line,"%d %f %f %f %lf %f %d", &day, &sec, &el_time, &st_time, &skew, &disp, &freq); if (n==7) { fputs(line,stdout); absolute=day*86400+(int)sec; errorbar=el_time+disp; if (debug) printf("contemplate %u %.1f %.1f %d ", absolute,skew,errorbar,freq); if (last_fake_time==0) simulated_freq=freq; fake_delta_time += (absolute-last_fake_time)*((double)(freq-simulated_freq))/65536; if (debug) printf("fake %f %d ", fake_delta_time, simulated_freq); skew += fake_delta_time; freq = simulated_freq; last_fake_time = absolute; simulated_freq = contemplate_data(absolute, skew, errorbar, freq); } else { fprintf(stderr,"Replay input error "); exit(2); } } } #endif static void usage(char *argv0) { fprintf(stderr, "Usage: %s [-c count]" #ifdef ENABLE_DEBUG " [-d]" #endif " [-f frequency] [-g goodness] -h hostname " " [-i interval] [-l] [-p port] [-q min_delay]" #ifdef ENABLE_REPLAY " [-r]" #endif " [-s] [-t] ", argv0); } int main(int argc, char *argv[]) { int usd; /* socket */ int c; /* These parameters are settable from the command line the initializations here provide default behavior */ short int udp_local_port=0; /* default of 0 means kernel chooses */ char *hostname=NULL; /* must be set */ int initial_freq; /* initial freq value to use */ struct ntp_control ntpc; ntpc.live=0; ntpc.set_clock=0; ntpc.probe_count=0; /* default of 0 means loop forever */ ntpc.cycle_time=600; /* seconds */ ntpc.goodness=0; ntpc.cross_check=1; for (;;) { c = getopt( argc, argv, "c:" DEBUG_OPTION "f:g:h:i:lp:q:" REPLAY_OPTION "st"); if (c == EOF) break; switch (c) { case 'c': ntpc.probe_count = atoi(optarg); break; #ifdef ENABLE_DEBUG case 'd': ++debug; break; #endif case 'f': initial_freq = atoi(optarg); if (debug) printf("initial frequency %d ", initial_freq); set_freq(initial_freq); break; case 'g': ntpc.goodness = atoi(optarg); break; case 'h': hostname = optarg; break; case 'i': ntpc.cycle_time = atoi(optarg); break; case 'l': (ntpc.live)++; break; case 'p': udp_local_port = atoi(optarg); break; case 'q': min_delay = atof(optarg); break; #ifdef ENABLE_REPLAY case 'r': do_replay(); exit(0); break; #endif case 's': ntpc.set_clock++; break; case 't': ntpc.cross_check = 0; break; default: usage(argv[0]); exit(1); } } if (hostname == NULL) { usage(argv[0]); exit(1); } if (ntpc.set_clock && !ntpc.live && !ntpc.goodness && !ntpc.probe_count) { ntpc.probe_count = 1; } /* respect only applicable MUST of RFC-4330 */ if (ntpc.probe_count != 1 && ntpc.cycle_time < MIN_INTERVAL) { ntpc.cycle_time = MIN_INTERVAL; } if (debug) { printf("Configuration: " " -c probe_count %d " " -d (debug) %d " " -g goodness %d " " -h hostname %s " " -i interval %d " " -l live %d " " -p local_port %d " " -q min_delay %f " " -s set_clock %d " " -x cross_check %d ", ntpc.probe_count, debug, ntpc.goodness, hostname, ntpc.cycle_time, ntpc.live, udp_local_port, min_delay, ntpc.set_clock, ntpc.cross_check ); } /* Startup sequence */ if ((usd=socket(AF_INET,SOCK_DGRAM,IPPROTO_UDP))==-1) { perror ("socket"); exit(1); } setup_receive(usd, INADDR_ANY, udp_local_port); setup_transmit(usd, hostname, NTP_PORT, &ntpc); primary_loop(usd, &ntpc); close(usd); return 0; }
