本文在前一篇实现了STM32平台利用MQTT协议对接domoticz平台控制LED灯的基础上，完善了网络连接和MQTT的broker连接过程，实现了断网重连功能。 实现部分主要在rt-threadcomponentsexternalpaho-mqttMQTTClient-CsamplesdomoticzDomoticzThread.c中。
在前一篇的源码基础上稍作改动，如下所示： DomoticzThread.c： #include #include "MQTTClient.h" //#include "led.h" #include "DomoticzMessageParser.h" #include "LED0.h" #include "LED1.h" #include "HardwareControl.h" //#define __DEBUG #include "dprintf.h" struct opts_struct { char* clientid; int nodelimiter; char* delimiter; enum QoS qos; char* username; char* password; char* host; int port; int showtopics; } opts = { (char*)"subscriber on STM32", 0, (char*)" ", QOS2, NULL, NULL, (char*)"192.168.1.230", 1883, 0 }; int is_over; void quit_domoticz_thread(void) { is_over = 1; } //================== Added 2017-Apr-27 8:06:53 start ================== //处理连接的状态机结构 typedef struct { enum{ UNCONNECTED = 0, NETWORK_CONNECTED=1, MQTT_CONNECTED=2, SUBSCRIBING_SUCCESS=3, WAIT_TIME_OUT=4, //SUBSCRIBING_FAILURE = 4 }state; int timeout_s;//超时时间，单位为秒 int times_count;//累计连续尝试连接次数，在连接成功后清零 }Connection_t; void connect_time_out(void * data) { Connection_t* con =(Connection_t*)data; if(con && con->timeout_s>0) { con->timeout_s --; } } #define NETWORK_CONNECT_TIMEOUT 5 //5s #define MAX_NETWORK_CONNECT_TIMES 5 #define MQTT_CONNECT_TIMEOUT 1 //1s #define MAX_MQTT_CONNECT_TIMES 5 #define SUBSCRIB_TIMEOUT 1 //1s #define MAX_SUBSCRIB_TIMES 5 #define MAX_NO_PING_RESPONS_TIMES 10 Connection_t connection={UNCONNECTED,NETWORK_CONNECT_TIMEOUT,0}; //================== Added 2017-Apr-27 8:06:53 end =================== void messageArrived(MessageData* md) { MQTTMessage* message = md->message; #if 0 /* Commented @ 2017-Apr-23 1:18:29 */ if (opts.showtopics) rt_kprintf("%.*s ", md->topicName->lenstring.len, md->topicName->lenstring.data); if (opts.nodelimiter) rt_kprintf("%.*s", (int)message->payloadlen, (char*)message->payload); else rt_kprintf("%.*s%s", (int)message->payloadlen, (char*)message->payload, opts.delimiter); #endif /* Commented */ dprintf("payloadlen=%d,%s ",(int)message->payloadlen,(char*)message->payload); dprintf("strlen(payload)=%d ",strlen((char*)message->payload)); //fflush(stdout); ((char*)message->payload)[(int)message->payloadlen]=0; ParseDomoticzMessage((char*)message->payload); //dprintf("MSG: qos %d, retained %d, dup %d, packetid %d ", message->qos, message->retained, message->dup, message->id); } void set_host(char *host) { opts.host = host; } #define MAX_BUF_SIZE 512 void domoticz_thread_entry(void* parameter) { int rc = 0; unsigned char buf[MAX_BUF_SIZE]={0};//buf[100]; unsigned char readbuf[MAX_BUF_SIZE]={0};//readbuf[100]; char* topic = "domoticz/out"; Network n; MQTTClient c; MQTTPacket_connectData data = MQTTPacket_connectData_initializer; rt_timer_t timer = rt_timer_create("connect_timer", connect_time_out, &connection, RT_TICK_PER_SECOND, RT_TIMER_FLAG_PERIODIC); is_over = 0; rt_kprintf("domoticz_thread_entry "); //================== Added 2017-Apr-26 2:36:53 start ================== RegisterHardware(Create_LED0(),1); RegisterHardware(Create_LED1(),6); OpenHardwares(); SetupDomoitczMessageParser(); SetEnableParseItem(KEY_IDX); SetEnableParseItem(KEY_NVALUE); SetEnableParseItem(KEY_SWITCH_TYPE); initHardwareSettings(); //================== Added 2017-Apr-26 2:36:53 end =================== data.willFlag = 0; data.MQTTVersion = 3; data.clientID.cstring = opts.clientid; data.username.cstring = opts.username; data.password.cstring = opts.password; data.keepAliveInterval = 10; data.cleansession = 0; rt_timer_start(timer); while(!is_over) { switch(connection.state) { case UNCONNECTED: //dprintf(" "); if(connection.timeout_s>0) continue; dprintf("state = UNCONNECTED "); rt_kprintf("Connecting to %s:%d ", opts.host, opts.port); NetworkInit(&n); rc = NetworkConnect(&n, opts.host, opts.port); dprintf("rc=%d ",rc); if(rc==SUCCESS) {//socket ???? connection.state = NETWORK_CONNECTED; connection.times_count = 0; rt_kprintf("NetworkConnect ok! "); //MQTTClientInit(&c, &n, 1000, buf, sizeof(buf), readbuf, sizeof(readbuf)); MQTTClientInit(&c, &n, 1000, buf,MAX_BUF_SIZE, readbuf, MAX_BUF_SIZE); } else if(connection.times_count <MAX_NETWORK_CONNECT_TIMES) {dprintf(" "); connection.times_count++; connection.timeout_s = NETWORK_CONNECT_TIMEOUT; } else {//reboot system,restart dprintf(" "); connection.times_count=0; connection.timeout_s = NETWORK_CONNECT_TIMEOUT*6; rt_kprintf("we will reconnect after %d senconds ",connection.timeout_s); //usleep(30*1000000);//30???? //goto exit; } break; case NETWORK_CONNECTED: if(connection.timeout_s>0) continue; dprintf(" "); rt_kprintf("state = NETWORK_CONNECTED "); rc = MQTTConnect(&c, &data); dprintf("rc=%d ",rc); if(rc == SUCCESS) { connection.state = MQTT_CONNECTED; connection.times_count = 0; connection.timeout_s = 0; //printf("MQTTConnected! "); rt_kprintf("MQTTConnected! Subscribing to %s ", topic); } else if(connection.times_count <MAX_MQTT_CONNECT_TIMES) { //printf("MQTTConnect times=%d, err:%d! ",connection.times_count,rc); rt_kprintf("MQTTConnect times=%d, err:%d! ",connection.times_count,rc); connection.times_count++; connection.timeout_s = MQTT_CONNECT_TIMEOUT; } else {//????network?? dprintf(" "); NetworkDisconnect(&n); connection.state = UNCONNECTED; connection.times_count=0; connection.timeout_s = NETWORK_CONNECT_TIMEOUT*6; rt_kprintf("we will reconnect after %d senconds ",connection.timeout_s); } break; case MQTT_CONNECTED: if(connection.timeout_s>0) continue; dprintf("state = MQTT_CONNECTED "); rc = MQTTSubscribe(&c, topic, opts.qos, messageArrived); dprintf("rc=%d ",rc); if(rc == SUCCESS) { rt_kprintf("Subscribed %s ", topic); connection.state = SUBSCRIBING_SUCCESS; connection.times_count = 0; } else if(connection.times_count <MAX_SUBSCRIB_TIMES && MQTTIsConnected(&c)==1) { rt_kprintf("MQTTSubscribe times=%d, err:%d! ",connection.times_count,rc); connection.times_count++; connection.timeout_s = MQTT_CONNECT_TIMEOUT; } else { if(MQTTIsConnected(&c)==1) MQTTDisconnect(&c); else MQTTCleanSession(&c); NetworkDisconnect(&n); connection.state = UNCONNECTED; connection.times_count=0; connection.timeout_s = NETWORK_CONNECT_TIMEOUT*6; rt_kprintf("we will reconnect after %d senconds ",connection.timeout_s); } break; case SUBSCRIBING_SUCCESS: MQTTYield(&c, 1000); if(c.ping_timeout_times>=MAX_NO_PING_RESPONS_TIMES+1 || MQTTIsConnected(&c)==0) { if(MQTTIsConnected(&c)==1) MQTTDisconnect(&c); else MQTTCleanSession(&c); NetworkDisconnect(&n); connection.state = UNCONNECTED; connection.times_count = 0; connection.timeout_s = NETWORK_CONNECT_TIMEOUT*6; rt_kprintf("we will reconnect after %d senconds ",connection.timeout_s); } else { connection.times_count = 0; } break; default: rt_kprintf("satte = default,err! "); break; } } exit: rt_kprintf("Stopping "); MQTTDisconnect(&c); NetworkDisconnect(&n); rt_timer_delete(timer); } void domoticz_thread_init(void) { rt_thread_t domoticz_thread; domoticz_thread = rt_thread_create("DomoticzThread", domoticz_thread_entry, RT_NULL, 0xf00, 28, 10); if (domoticz_thread != RT_NULL) rt_thread_startup(domoticz_thread); } #ifdef RT_USING_FINSH #include FINSH_FUNCTION_EXPORT(set_host, set domoticz host ip addr); FINSH_FUNCTION_EXPORT(domoticz_thread_init,to run domoticz thread ); FINSH_FUNCTION_EXPORT(quit_domoticz_thread,quit domoticz thread ); #endif 运行效果：

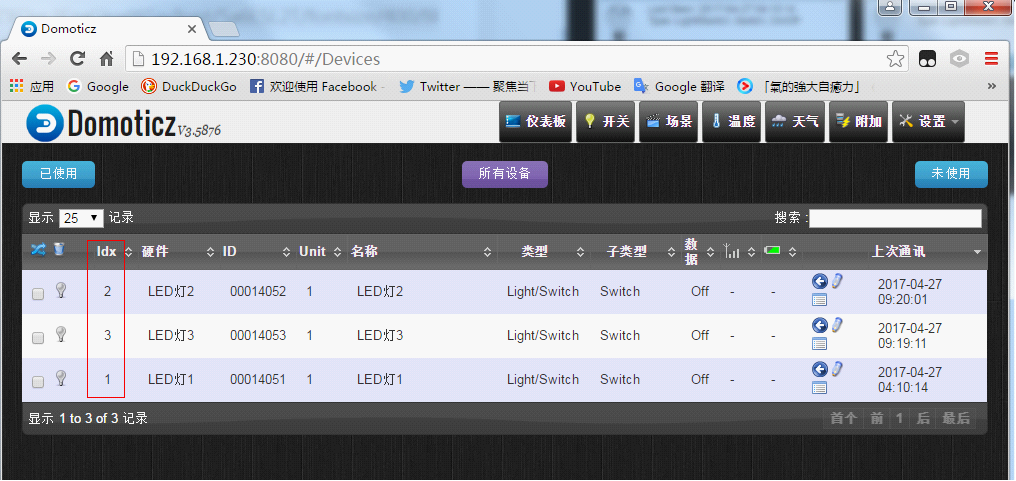

domoticz这边建立三个LED灯，idx分别为1,2,3 STM32开发板上的LED0的idx为2，LED1的idx为3。
也就是domoticz平台上的“LED灯2”对应开发板LED0；
domoticz平台上的“LED灯3”对应开发板LED1。 好了，现在在STM32开发板上看效果：
1、LED0亮：
2、LED1亮：
3、LED0、LED1都亮：
4、在mini2440板上运行前面做的mqtt客户端程序。 mini2440上也控制两个灯LED0，对应的idx为1；LED1，对应idx为2。
也就是说mini2440板上的LED1和STM32板上的LED0的idx是相同的，看看能不能同时点亮。 点亮mini2440的LED0：

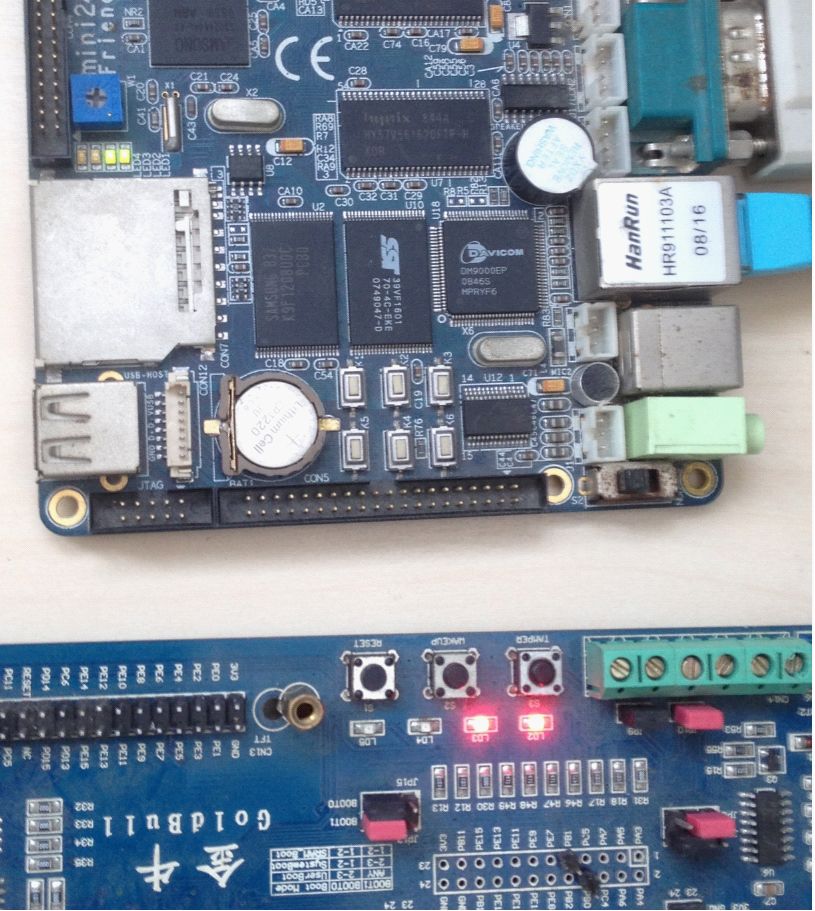

下面将看到在domoticz上点亮LED2灯可以同时点亮mini2440上的LED1和STM32上的LED0：
都点亮：

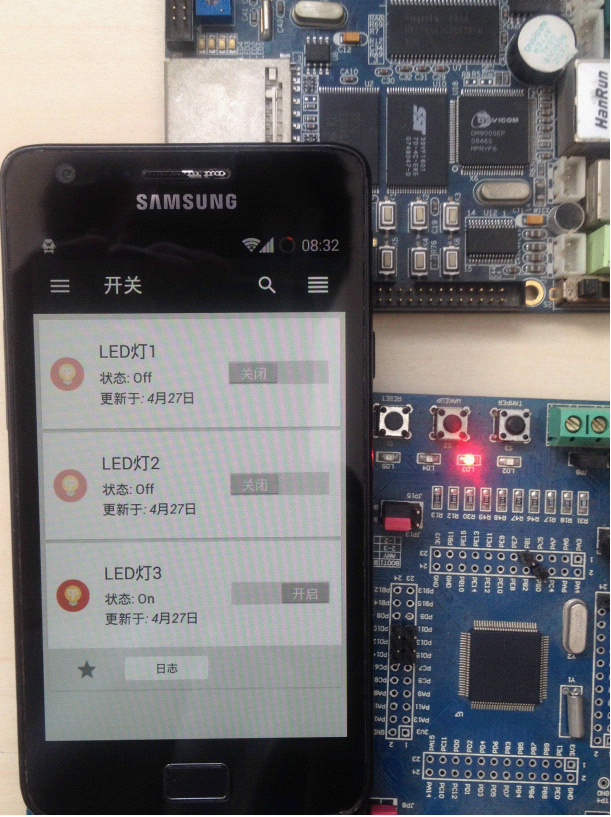

5、Android手机实际控制效果：

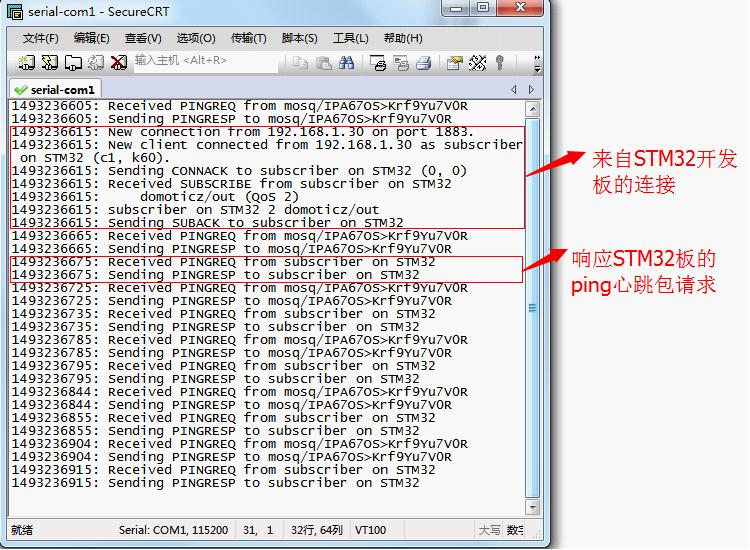

6、当MQTT的broker被关闭并重新打开后，STM32板的反应： 在程序中，其实只要ping 10次没有结果，就会断开MQTT连接和socket连接，并重新连接。
如果有网络错误，连接不上会，延时一段时间，然后重新连接socket，然后连MQTT的broker，然后订阅。
具体如上述源码中处理那样。 附：STM32开发板的整个源码工程下载地址：
https://download.csdn.net/download/sqshining/11076319
