嵌入式Linux上大部分都是有C/C++来做开发的，主要的原因还是为了效率，但本人最近几年用Java比较多所以决定用Java比较多所以决定还是用Java来开发，再者个人认为现在硬件的发展，对于实时性没有苛刻要求的环境Java足可以胜任了，所以言归正传，下面开始实际行动：

1、Java虚拟机的安装，OpenJava，Oracle Java都可以，这里用Oracle Java为例

： a. Ubuntu本身是Apt-get是没有Oracle java的源的，所以首先的先添加源: sudo sh -c ‘echo “deb http://ppa.launchpad.net/webupd8team/java/ubuntu trusty main” >> /etc/apt/sources.list
sudo sh -c ‘echo “deb-src http://ppa.launchpad.net/webupd8team/java/ubuntu trusty main” >> /etc/apt/sources.list
sudo apt-key adv –keyserver keyserver.ubuntu.com –recv-keys EEA14886
b 用apt-get update安装即可，Ubuntu core安装Oracle Java时间比较久，要耐心等待
.sudo apt-get update
sudo apt-get install oracle-java8-installer

2、Java串口通信

Java串口通信用到了Rxtxcomm这个包，
下载地址：最新版本rxtx 2.2pre2 http://rxtx.qbang.org/wiki/index.php/Download
安装说明
http://rxtx.qbang.org/wiki/index.php/Installation_on_Linux
官方给出了详细的安装说明，但是按照这个安装说明，在调用这个包的时候提示jar包和动态链接库.so 文件不一致的问题，这是这个版本的一个bug，解决办法如下：
首先用apt-get 安装，已操作过的可以忽略此步骤
apt-get install librxtx-java
执行完此步骤后，会在/usr/lib/jni/目录下发现动态链接库文件librxtxSerial.so，这时候用cp命令将此文件拷贝到Java Home下
cp /usr/lib/jni/librxtxSerial.so /usr/lib/jvm/java-8-oracle/jre/lib/arm
接下来下载源码，按照官方按照教程，在源码目录执行如下命令：
sh ./configure
make 执行完后会发现源码目录下多出一个RXTXcomm.jar，在Java工程中直接引用即可,也可以到百度 {MOD}下载https://pan.baidu.com/s/1jHD0aj0 执行完成后，在NanoPC T3调用官方示例中的listport还是找不到串口，后来研究代码发现Linux中的设备是用文件来表示的，所有的设备都是放在/dev目录下的，而NanoPC T3的串口是用ttySAC1，ttySAC3，ttySAC4这样的方式命名的，而rxtxcomm的串口查找没有匹配这种命名方式，可以看/src/gnu/io/RXTXCommDriver.java 577~581行的代码

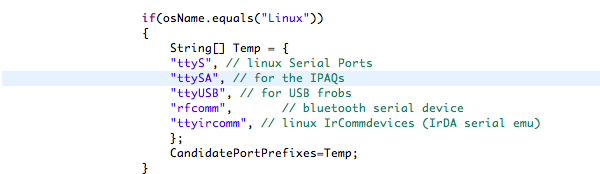

这里写图片描述

只需要增加NanoPC T3的命名格式，重新编译一下就好了，改完后的代码如下：

                    if(osName.equals("Linux"))
                    {
                        String[] Temp = {
                        "ttyS", // linux Serial Ports
                        "ttySA", // for the IPAQs
                        "ttySAC",///for friendarm
                        "ttyUSB", // for USB frobs
                        "rfcomm",       // bluetooth serial device
                        "ttyircomm", // linux IrCommdevices (IrDA serial emu)
                        };
                        CandidatePortPrefixes=Temp;
                    }

现在可以调用官方sample中的connect打开串口了，打开串口3和4的方式如下：
connect(“/dev/ttySAC3”);
connect(“/dev/ttySAC4”);
官方connect函数代码如下:

    public void connect ( String portName ) throws Exception
    {
        CommPortIdentifier portIdentifier = CommPortIdentifier.getPortIdentifier(portName);
        if ( portIdentifier.isCurrentlyOwned() )
        {
            System.out.println("Error: Port is currently in use");
        }
        else
        {
            CommPort commPort = portIdentifier.open(this.getClass().getName(),2000);

            if ( commPort instanceof SerialPort )
            {
                SerialPort serialPort = (SerialPort) commPort;
                serialPort.setSerialPortParams(9600,SerialPort.DATABITS_8,SerialPort.STOPBITS_1,SerialPort.PARITY_NONE);

                InputStream in = serialPort.getInputStream();

                InputStreamReader reader = new InputStreamReader(in);
                OutputStream out = serialPort.getOutputStream();

                BufferedReader r = new BufferedReader(reader);

                //(new Thread(new ReaderSerial(r))).start();
                //(new Thread(new WriterSerial(out))).start();

                rs=new ReaderSerial(r);
//                pool.execute(rs);
                rs.start();

                ws=new WriterSerial(out);
//                pool.execute(ws);
//               // ws.start();

            }
            else
            {
                System.out.println("Error: Only serial ports are handled by this example.");
            }
        }
    }

3、最后针对小车驱动对串口通信重新包装了一下

SerialComm.java 串口操作的封装类
ReaderSerial.java 串口读的封装类
WriterSerial.java 串口写的类
DriverCMD.java 小车底盘控制命令类，配合Arduino 代码的串口命令 SerialComm.java

import java.io.BufferedReader;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.OutputStream;
import gnu.io.CommPort;
import gnu.io.CommPortIdentifier;
import gnu.io.SerialPort;

public class SerialComm {
    //private String  msg="";
    //private String lastmsg="";
    private  ReaderSerial rs=null;
    private WriterSerial ws=null;
    //ExecutorService pool = Executors.newCachedThreadPool();


    public void setMsg(String msg) {
        if (ws!=null){
            //System.out.println("******step 3");
            ws.setMsg(msg);
            ws.writeSerial();
        }

    }

    public SerialComm()
    {
        super();
    }

    public void connect ( String portName ) throws Exception
    {
        CommPortIdentifier portIdentifier = CommPortIdentifier.getPortIdentifier(portName);
        if ( portIdentifier.isCurrentlyOwned() )
        {
            System.out.println("Error: Port is currently in use");
        }
        else
        {
            CommPort commPort = portIdentifier.open(this.getClass().getName(),2000);

            if ( commPort instanceof SerialPort )
            {
                SerialPort serialPort = (SerialPort) commPort;
                serialPort.setSerialPortParams(9600,SerialPort.DATABITS_8,SerialPort.STOPBITS_1,SerialPort.PARITY_NONE);

                InputStream in = serialPort.getInputStream();

                InputStreamReader reader = new InputStreamReader(in);
                OutputStream out = serialPort.getOutputStream();

                BufferedReader r = new BufferedReader(reader);

                //(new Thread(new ReaderSerial(r))).start();
                //(new Thread(new WriterSerial(out))).start();

                rs=new ReaderSerial(r);
//                pool.execute(rs);
                rs.start();

                ws=new WriterSerial(out);
//                pool.execute(ws);
//               // ws.start();

            }
            else
            {
                System.out.println("Error: Only serial ports are handled by this example.");
            }
        }
    }
    public static void listPorts()
    {
        @SuppressWarnings("unchecked")
        java.util.Enumeration portEnum = CommPortIdentifier.getPortIdentifiers();
        while ( portEnum.hasMoreElements() )
        {
            CommPortIdentifier portIdentifier = portEnum.nextElement();
            System.out.println(portIdentifier.getName()  +  " - " +  getPortTypeName(portIdentifier.getPortType()) );
        }
    }

    static String getPortTypeName ( int portType )
    {
        switch ( portType )
        {
            case CommPortIdentifier.PORT_I2C:
                return "I2C";
            case CommPortIdentifier.PORT_PARALLEL:
                return "Parallel";
            case CommPortIdentifier.PORT_RAW:
                return "Raw";
            case CommPortIdentifier.PORT_RS485:
                return "RS485";
            case CommPortIdentifier.PORT_SERIAL:
                return "Serial";
            default:
                return "unknown type";
        }
        //return "";
    }
}

ReaderSerial.java

import java.io.BufferedReader;
import java.io.IOException;

public class ReaderSerial extends Thread{

    BufferedReader in;

    public ReaderSerial ( BufferedReader in )
    {
        this.in = in;
    }

    public void run ()
    {
        try
        {
            String line;
            while ((line = in.readLine()) != null){
                System.out.println(line);
            }
        }
        catch ( IOException e )
        {
            e.printStackTrace();
        }
    }
}

WriterSerial.java

public class WriterSerial/* extends Thread*/{

    private OutputStream out;
    private String msg="";
    //private String lastmsg="";

    public String getMsg() {
        return msg;
    }

    public void setMsg(String msg) {
        this.msg = msg;
        System.out.println("******step 4 this.msg= "+this.msg);
    }

    public WriterSerial ( OutputStream out)
    {
        this.out = out;
    }

    public void writeSerial(){
        if (msg != null && msg.length() != 0) {
            System.out.println("******before write,  the msg is " + msg);
            try {
                out.write(this.msg.getBytes());
            } catch (IOException e) {
                // TODO Auto-generated catch block
                e.printStackTrace();
            }
        }
    }
}

DriverCMD.java

public class DriverCMD {
    private SerialComm driverCMDComm;
    private String stopcar="5";
    private String forward="1";
    private String backward="2";
    private String right="3";
    private String left="4";
    private String automate="6";
    private String manual="7";

    public void openSAC(String portName){
        driverCMDComm=new SerialComm();
        try {
            driverCMDComm.connect(portName);
            System.out.println("******the SAC "+portName+" has been opened!");
        } catch (Exception e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }
    }

    public void stop(){
        driverCMDComm.setMsg(stopcar);
    }
    public void forward(){
        //System.out.println("******step 2");
        driverCMDComm.setMsg(forward);
    }
    public void backward(){
        driverCMDComm.setMsg(backward);
    }
    public void right(){
        driverCMDComm.setMsg(right);
    }
    public void left(){
        driverCMDComm.setMsg(left);
    }
    public void manual(){
        driverCMDComm.setMsg(manual);
    }
    public void automate(){
        driverCMDComm.setMsg(automate);
    }

    public void mycmd(String cmdstr){

        System.out.println("******"+cmdstr);
        try{
            if(cmdstr.equals("FORWARD")){
                forward();
                Thread.sleep(2000);
                stop();
            }
            if(cmdstr.equals("BACKWARD")){
                backward();
                Thread.sleep(2000);
                stop();
            }
            if(cmdstr.equals("RIGHT")){
                right();
                Thread.sleep(1000);
                stop();
            }
            if(cmdstr.equals("LEFT")){
                left();
                Thread.sleep(1000);
                stop();
            }
            if(cmdstr.equals("EXIT")){
                System.exit(0);
            }
            if(cmdstr.equals("STOP")){
                stop();
            }
            if(cmdstr.equals("MANUAL")){
                manual();
            }
            if(cmdstr.equals("AUTOMATE")){
                automate();
            }
        } catch (InterruptedException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
            System.exit(0);
        }

    }

    public void test(){

        try {
            System.out.println("******step 1");
            forward();
            Thread.sleep(3000);
            backward();
            Thread.sleep(3000);
            right();
            Thread.sleep(3000);
            left();
            Thread.sleep(3000);
            stop();
            Thread.sleep(3000);

        } catch (InterruptedException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
            System.exit(0);
        }
    }
}

在main函数中可以按照如下方法调用：

public class Test {
  public static void main(String[] args) {
    // TODO Auto-generated method stub
    SerialComm.listPorts();

    DriverCMD driver =new DriverCMD();
    driver.openSAC("/dev/ttySAC3");
    driver.test();
    //......
}

}
