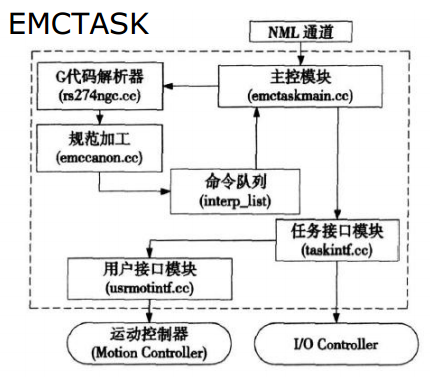

典型的控制框图
OutLine
About the LinuxCNC
Linux / RTAI
LinuxCNC software
LinuxCNC Hierarchical
Configuring LinuxCNC
简介不说了，框图如下。
LinuxCNC提供了：
上图中，包括四个主要组件
EMCMOT
EMCIO
INI : The ini file overrides defaults that are
compiled into the LinuxCNC code.
HAL : The HAL files start up process modules and
provide linkages between LinuxCNC signals and
specific hardware pins.
VAR : The var file is a way for the interpreter to
save some values from one run to the next. These
values are saved from one run to another but not
always saved immediately.
TBL : The tbl file saves tool information.
NML : The nml file configures the communication
channels used by the LinuxCNC. It is normally
setup to run all of the communication within a
single computer but can be modified to
communicate between several computers.
可以在官方文档找到详细说明
http://www.linuxcnc.org/docs/2.5/html/config/ini_config.html
