学习DSP外设之LCDC的配置和应用

2019-07-13 10:48发布

站内文章 / DSP
18082 0 1109

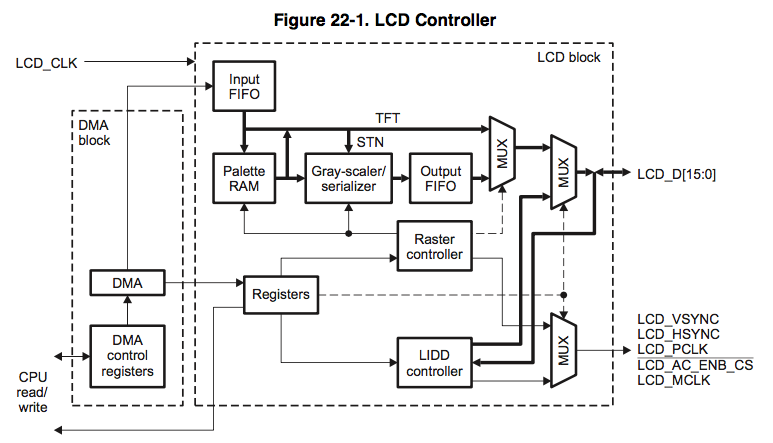

看了这个外设的说明，发现没有initialion。。。那就从头介绍吧 一、 介绍说明 LCDC有两个独立的控制器，同步Raster Controller 和 异步LCD InterfaceDisplay Driver (LIDD) controller。  同步Raster Controller：It supports a wide variety of monochrome and full-color displaytypes and sizes by use of programmable timing controls, a built-in palette, and a gray-scale/serializer.Graphics data is processed and stored in frame   异步LIDD controller：The LIDD Controller supports the asynchronous LCD interface. It provides full-timing programmabilityof control signals and output data.   二、clock

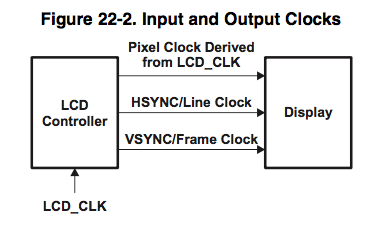

1.Pixel Clock 计算如下：where CLKDIV is a field in the LCD_CTRL register and should not be 0 or 1.
  • Passive (STN：STN的每个点只有点亮和熄灭两种状态，可以通过“抖动算法”来实现灰度或彩 {MOD}显示。STN属于无源Passive型LCD，一般最高能显示65536种 {MOD}彩) mode.LCD_PCLK only transitions when valid data is available for output. It does nottransition when the horizontal clock is asserted or during wait state insertion.
  • Active (TFT：液晶为每个像素都设有一个半导体开关，其加工工艺类似于大规模集成电路) mode.LCD_PCLK continuously toggles as long as the Raster Controller is enabled.
2.Horizontal Clock (LCD_HSYNC) ：每行结束clock 3.Vertical Clock (LCD_VSYNC) ：all lines in a frame have been transmitted to the LCD 帧结束clock
三、DMA When the Raster Controller is used, the DMA engine reads data from a frame buffer and writes it to theinput FIFO (如上第一幅图所示). The Raster Controller requests data from the FIFO for framerefresh; as a result, the DMA’s job is to ensure that the FIFO is always kept full.  When the LIDD Controller is used, the DMA engine accesses the LIDD Controller's address and/or dataregisters.

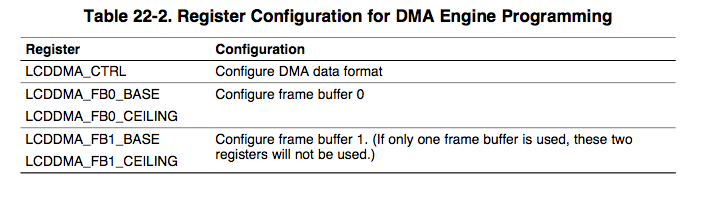

In addition, the LIDD_CTRL register (for LIDD Controller) or the RASTER_CTRL register (for RasterController) should also be configured appropriately, along with all the timing registers.  To enable DMA transfers, the LIDD_DMA_EN bit (in the LIDD_CTRL register) or the LCDEN bit (in theRASTER_CTRL register) should be written with 1.
