Doorbell的中断到core的机制是由DOORBELLx_ICRRx寄存器实现的，共有八个ICRR寄存器。
When doorbell packets are received by the SRIO peripheral, theseICRRs
routedoorbell interrupt requests（在ISCR寄存器中指示） from the associated doorbell ICSRto
user-selected interruptdestinations. Each of the four doorbells can be mapped to these registers.
每对Doorbellx_ICRR,ICRR2（x=0~3）寄存器与DOORBELLx_ISCR对应（x=0~3）。 因为每个DOORBELLx_ISCR寄存器对应16个中断源，而Doorbellx_ICRR,ICRR2就与该16个中断源一一对应，起到路由ISCR中每个对应的中断源的作用。如若Doorbell2_ICSR寄存器中的ICS6=1，Doorbell2_ICRR寄存器中的ICR6=0010b，这样来自Doorbell2_ICSR中的bit

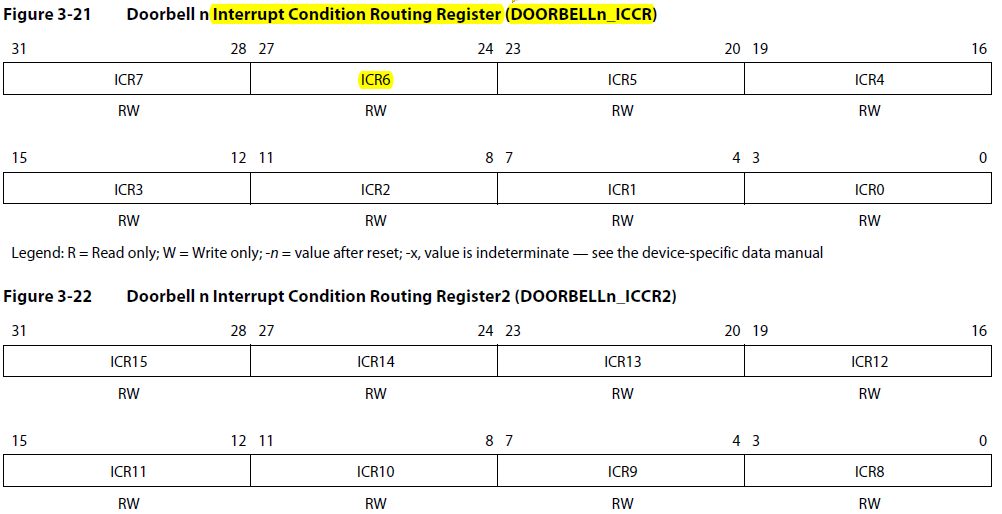

6的中断将会路由到INTDST2。由下图可知，ICRR寄存器只能把ISCR表示的64个中断源路由到八个INTDST0~7。
