VB.NET实现windows应用程序开发串口调试并实时实时保存数据和画图

2019-07-13 15:11发布

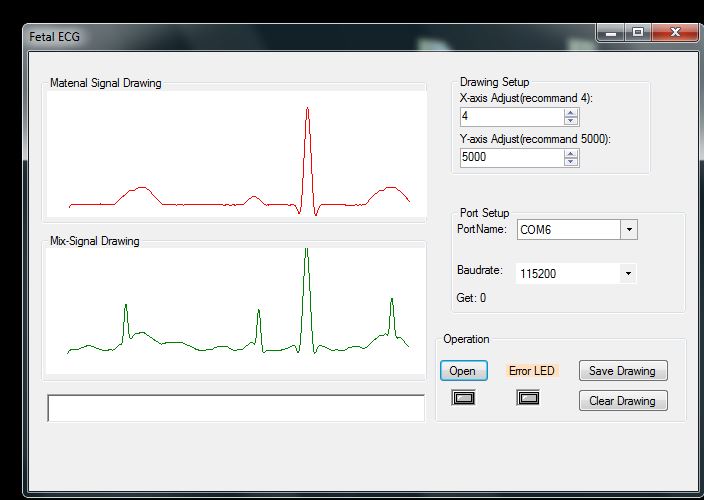

自己最近做了一个关于VB.NET开发的串口调试程序,实现了和下位机DSP的通信,并且实现了实时画图功能,DSP把整形数据(占4个byte),左移后通过DMA方式先发高位,接收后用位段方式转化为整型。同时接受两路数据并以streamwrite的形式自动保存到.txt文件中。     Dim bvMaternal As BitVector32
    Dim bvFetal As BitVector32
    Dim sec1 As BitVector32.Section = BitVector32.CreateSection(255)
    Dim sec2 As BitVector32.Section = BitVector32.CreateSection(255, sec1)
    Dim sec3 As BitVector32.Section = BitVector32.CreateSection(255, sec2)
    Dim sec4 As BitVector32.Section = BitVector32.CreateSection(255, sec3)
画图函数的实现:     Private Sub draw()


        'Maternal signal coordinate
        Dim mtlY2 As Single
        Dim mtlX2 As Single
        Dim mtlY1 As Single
        Dim mtlX1 As Single
        'Fetal signal coordinate
        Dim ftlY2 As Single
        Dim ftlX2 As Single
        Dim ftlY1 As Single
        Dim ftlX1 As Single


        Dim mypenMaternal As New Pen(Color.Red, 1)
        Dim mypenFetal As New Pen(Color.Green, 1)
        Dim mygraphMaternal As Graphics
        Dim mygraphFetal As Graphics
        'Maternal signal drawing setup
        mygraphMaternal = Me.picBoxMatenal.CreateGraphics

        'X-axis and Y-axis Adjust parameter Get:

        Dim XnumericUpDownVal As Integer = NumericUpDownX.Value
        Dim YnumericUpDownVal As Integer = NumericUpDownY.Value


        'Use FromImage method to creat an graphics object with bitmap
        'mygraphMaternal = Graphics.FromImage(m_objDrawingMatSurface)


        mygraphMaternal.PageUnit = GraphicsUnit.Point
        mygraphMaternal.TranslateTransform(0, picBoxMatenal.Height / 2)
        'Fetal signal drawing setup
        mygraphFetal = Me.picBoxFetal.CreateGraphics

        'Use FromImage method to creat an graphics object with bitmap
        'mygraphFetal = Graphics.FromImage(m_objDrawingFetSurface)


        mygraphFetal.PageUnit = GraphicsUnit.Point
        mygraphFetal.TranslateTransform(0, picBoxFetal.Height)

        mtlY2 = DataMaternal(Me.receiveDisplay_count) / YnumericUpDownVal
        mtlX2 = Me.receiveDisplay_count / XnumericUpDownVal
        mtlY1 = DataMaternal(Me.receiveDisplay_count - 1) / YnumericUpDownVal
        mtlX1 = (Me.receiveDisplay_count - 1) / XnumericUpDownVal
        'Fetal signal coordinate
        ftlY2 = DataFetal(Me.receiveDisplay_count) / YnumericUpDownVal
        ftlX2 = Me.receiveDisplay_count / XnumericUpDownVal
        ftlY1 = DataFetal(Me.receiveDisplay_count - 1) / YnumericUpDownVal
        ftlX1 = (Me.receiveDisplay_count - 1) / XnumericUpDownVal
        'Dim MaternalPoints As Point() = {New Point(mtlX1, mtlY1), New Point(mtlX2, mtlY2)}
        'Dim FetalPoints As Point() = {New Point(ftlX1, ftlY1), New Point(ftlX2, ftlY2)}
        mygraphMaternal.DrawLine(mypenMaternal, mtlX1 + 16, -mtlY1 * 126, mtlX2 + 16, -mtlY2 * 126)
        mygraphFetal.DrawLine(mypenFetal, ftlX1 + 16, -ftlY1 * 126, ftlX2 + 16, -ftlY2 * 126)
        'mygraphMaternal.DrawCurve(mypenMaternal, MaternalPoints, 1.0F)
        'mygraphFetal.DrawCurve(mypenFetal, FetalPoints, 1.0F)


        'clean up
        mygraphMaternal.Dispose()
        mygraphFetal.Dispose()
        'Force the form to paint itself, this triggers the Paint event
        'Me.picBoxMatenal.Invalidate()
        'Me.picBoxFetal.Invalidate()

    End Sub
