Android 的电源管理也是很重要的一部分。比如在待机的时候关掉不用的设备，timeout之后的屏幕和键盘背光的关闭，用户操作的时候该打开多少设备等等，这些都直接关系到产品的待机时间，以及用户体验。

一，电源管理相关文件

1，框架层文件

               /frameworks/base/services/java/com/android/server/PowerManagerService.java
               /frameworks/base/services/jni/com_android_server_PowerManagerService.cpp
               /frameworks/base/services/java/com/android/server/LightsService.java
               /frameworks/base/services/jni/com_android_server_LightsService.cpp
               /frameworks/base/services/java/com/android/server/BatteryService.java
               /frameworks/base/services/jni/com_android_server_BatteryService.cpp
               /frameworks/base/core/java/android/os/Power.java
               /frameworks/base/core/jni/android_os_Power.cpp
               /frameworks/base/core/java/android/os/PowerManager.java
               /frameworks/base/services/powermanager/IPowerManager.cpp
               /frameworks/base/core/java/android/os/IPowerManager.aidl
               /frameworks/base/core/java/android/os/LocalPowerManager.java
               /frameworks/base/services/jni/com_android_server_InputManager.cpp
               /hardware/libhardware_legacy/power/power.c

2，驱动层文件：

               kernel/kernel/power/main.c
               kernel/power/earlysuspend.c
               kernel/kernel/power/suspend.c
               kernel/kernel/power/wakelock.c
               kernel/kernel/power/userwakelock.c

二，电源管理系统总体流程

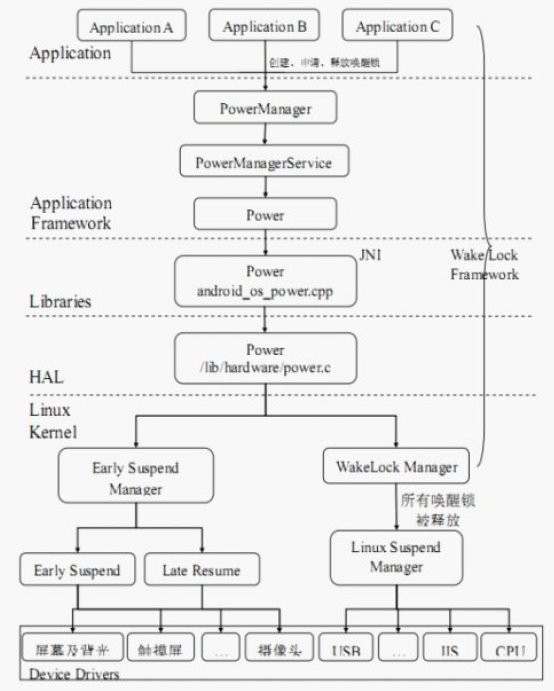

下图从应用层-- >框架层-- >抽象层-- >内核层简单描述了电源管理系统的睡眠与唤醒代码流程。

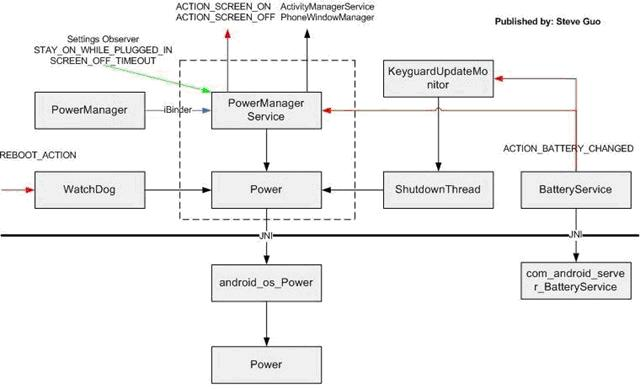

下图PowerManagerService的处理过程，该服务是整个电源管理系统的核心服务。

三，电源管理系统机制分析

接下来我们将以上图的框架结构为主线，将进行详细地从最上层到最底层的跟踪。本文的主旨主要就是读者从Android最上层（Java写的应用程序）一步一步的往下跟进，经过Java、C++和C语言写的Framework层、JNI层、HAL层最后到达android的最底层（Kernel层）。通过本文的阅读，您将对android的整体有更加深入、宏观的理解和把握。

1，框架层分析

Android框架层的电源管理主要在framework层实现，其中battery的管理包括充放电状态、电量显示等，但这部分暂不在调研范围之间。该部分调研的重点在于LCD以及相关设备LED状态的切换。相关代码见上述列表。 Android 的电源管理机制只要是通过锁和定时器来切换系统的状态，是系统的功耗降至最低。在应用层：android 提供了android.os.PowerManager类供应程序使用，用于控制设备的电源状态切换。在框架层：是再java中通过JNI 访问C++函数->HAL层->sysfs文件系统->调用内核提供的支持来实现。整个状态切换流程是：系统正常开机后进入到awake状态,backlight会从最亮慢慢调节到用户设定的亮度，系统screenoff timer(settings->sound and display-> display settings ->screen timeout)开始计时,在计时时间到之前,如果有任何的activity事件发生,如touchclick,keyboard pressed等事件,则将resetscreen off timer, 系统保持在awake状态.如果有应用程序在这段时间内申请了fullwake lock,那么系统也将保持在awake状态,除非用户按下powerkey.。在awake状态下如果电池电量低或者是用AC供电screenoff timer时间到并且选中Keepscreen on while pluged in选项,backlight会被强制调节到DIM的状态。如果screenoff timer时间到并且没有fullwake lock或者用户按了powerkey，那么系统状态将被切换到notification,并且调用所有已经注册的g_early_suspend_handlers函数,通常会把LCD和Backlight驱动注册成earlysuspend类型,如有需要也可以把别的驱动注册成earlysuspend,这样就会在第一阶段被关闭.接下来系统会判断是否有partialwake lock acquired, 如果有则等待其释放,在等待的过程中如果有useractivity事件发生,系统则马上回到awake状态；如果没有partialwake lock acquired, 则系统会马上调用函数pm_suspend关闭其它相关的驱动,让CPU进入休眠状态.系统在Sleep状态时如果检测到任何一个wakeupsource,则CPU会从sleep状态被唤醒,并且调用相关的驱动的resume函数,接下来马上调用前期注册的earlysuspend驱动的resume函数,最后系统状态回到awake状态. 上图中，我们可以看到power manager的核心代码在PowerManagerService.java中，该文件通过利用PowerManager.java提供的类，android_os_Power.cpp提供的一些本地方法以及power.c对底层的调用，完成了android系统power manager的各自服务。在应用程序框架层中，PowerManager类是面向上层应用程序的接口类，提供了Wake Lock机制（同时也是睡眠唤醒子系统）的基本接口（唤醒锁的获取和释放）。上层应用程序通过调用这些接口，实现对系统电源状态的监控。PowerManager类通过IBinder这种Android中特有的通信模式，与PowerManagerService 类进行通信。PowerManagerService 是PowerManager 类中定义的接口的具体实现，并进一步调用Power 类来与下一层进行通信。PowerManagerService 类是WakeLock 机制在应用程序框架层的核心，他们对应用程调用PowerManager类接口时所传递的参数进行初步的分析和对应的设置，并管理一个唤醒锁队列，然后配合其他模块（例如WatchDog、BatteryService、ShutdownThread 等）的状态信息，做出决策，调用Power类的对应接口，最终通过JNI 接口，调用到硬件抽象层中的函数，对sysfs的用户接口进行操作，从而触发内核态实现的用。在分析框架层相关文件之前，我们必须先清楚应用层相关文件之间的相互调用关系。 PowerManagerService.java ---- >PowerManagerService extends IPowerManager.Stub implements LocalPowerManager, Watchdog.Monitor{} PowerManager.java---- >PowerManager{}---- >PowerManager(IPowerManagerservice, Handler handler){} LocalPowerManager.java---- >interface LocalPowerManager{} IPowerManager.aidl---- >interface IPowerManager{} IPowerManager.cpp---- >class BpPowerManager : public BpInterface<IPowerManager> 首先分析：PowerManager.java这个类是框架层留给应用层的接口，PowerManager.java 电源管理工具类，其为一个公共类提供了较多的公共接口。获取对象方法：PowerManager pm = (PowerManager) getSystemService(Context.POWER_SERVICE);应用层可以通过pm对象进行相关的管理操作。根据上面分析的相互调用关系可知，获取PowerManager在getSystemService(Context.POWER_SERVICE)获取对象的时候是通过构造函数PowerManager(IPowerManagerservice, Handler handler){}来创建的，而此处IPowerManager 则是创建PowerManager实例的核心，而IPowerManager则是由PowerManagerService实现，所以PowerManager大部分方法实质还是有PowerManagerService来实现的，清楚了这点后面的分析要简单很多。下面看下PowerManager.java的源码：

public class PowerManager
{
    private static final String TAG = "PowerManager";
    private static final int WAKE_BIT_CPU_STRONG = 1;
    private static final int WAKE_BIT_CPU_WEAK = 2;
    private static final int WAKE_BIT_SCREEN_DIM = 4;
    private static final int WAKE_BIT_SCREEN_BRIGHT = 8;
    private static final int WAKE_BIT_KEYBOARD_BRIGHT = 16;
    private static final int WAKE_BIT_PROXIMITY_SCREEN_OFF = 32;

    private static final int LOCK_MASK = WAKE_BIT_CPU_STRONG
                                        | WAKE_BIT_CPU_WEAK
                                        | WAKE_BIT_SCREEN_DIM
                                        | WAKE_BIT_SCREEN_BRIGHT
                                        | WAKE_BIT_KEYBOARD_BRIGHT
                                        | WAKE_BIT_PROXIMITY_SCREEN_OFF;

    public static final int PARTIAL_WAKE_LOCK = WAKE_BIT_CPU_STRONG;

    public static final int FULL_WAKE_LOCK = WAKE_BIT_CPU_WEAK | WAKE_BIT_SCREEN_BRIGHT
                                            | WAKE_BIT_KEYBOARD_BRIGHT;

    @Deprecated
    public static final int SCREEN_BRIGHT_WAKE_LOCK = WAKE_BIT_CPU_WEAK | WAKE_BIT_SCREEN_BRIGHT;

    public static final int SCREEN_DIM_WAKE_LOCK = WAKE_BIT_CPU_WEAK | WAKE_BIT_SCREEN_DIM;

    public static final int PROXIMITY_SCREEN_OFF_WAKE_LOCK = WAKE_BIT_PROXIMITY_SCREEN_OFF;

    public static final int WAIT_FOR_PROXIMITY_NEGATIVE = 1;

    public static final int ACQUIRE_CAUSES_WAKEUP = 0x10000000;

    public static final int ON_AFTER_RELEASE = 0x20000000;
    public class WakeLock
    {
        static final int RELEASE_WAKE_LOCK = 1;

        Runnable mReleaser = new Runnable() {
            public void run() {
                release();
            }
        };

        int mFlags;
        String mTag;
        IBinder mToken;
        int mCount = 0;
        boolean mRefCounted = true;
        boolean mHeld = false;
        WorkSource mWorkSource;

        WakeLock(int flags, String tag)
        {
            switch (flags & LOCK_MASK) {
            case PARTIAL_WAKE_LOCK:
            case SCREEN_DIM_WAKE_LOCK:
            case SCREEN_BRIGHT_WAKE_LOCK:
            case FULL_WAKE_LOCK:
            case PROXIMITY_SCREEN_OFF_WAKE_LOCK:
                break;
            default:
                throw new IllegalArgumentException();
            }

            mFlags = flags;
            mTag = tag;
            mToken = new Binder();
        }

        public void setReferenceCounted(boolean value)
        {
            mRefCounted = value;
        }

        public void acquire()
        {
            synchronized (mToken) {
                acquireLocked();
            }
        }

        public void acquire(long timeout) {
            synchronized (mToken) {
                acquireLocked();
                mHandler.postDelayed(mReleaser, timeout);
            }
        }

        private void acquireLocked() {
            if (!mRefCounted || mCount++ == 0) {
                mHandler.removeCallbacks(mReleaser);
                try {
                    mService.acquireWakeLock(mFlags, mToken, mTag, mWorkSource);
                } catch (RemoteException e) {
                }
                mHeld = true;
            }
        }

        public void release() {
            release(0);
        }

        public void release(int flags) {
            synchronized (mToken) {
                if (!mRefCounted || --mCount == 0) {
                    mHandler.removeCallbacks(mReleaser);
                    try {
                        mService.releaseWakeLock(mToken, flags);
                    } catch (RemoteException e) {
                    }
                    mHeld = false;
                }
                if (mCount < 0) {
                    throw new RuntimeException("WakeLock under-locked " + mTag);
                }
            }
        }

        public boolean isHeld()
        {
            synchronized (mToken) {
                return mHeld;
            }
        }

        public void setWorkSource(WorkSource ws) {
            synchronized (mToken) {
                if (ws != null && ws.size() == 0) {
                    ws = null;
                }
                boolean changed = true;
                if (ws == null) {
                    mWorkSource = null;
                } else if (mWorkSource == null) {
                    changed = mWorkSource != null;
                    mWorkSource = new WorkSource(ws);
                } else {
                    changed = mWorkSource.diff(ws);
                    if (changed) {
                        mWorkSource.set(ws);
                    }
                }
                if (changed && mHeld) {
                    try {
                        mService.updateWakeLockWorkSource(mToken, mWorkSource);
                    } catch (RemoteException e) {
                    }
                }
            }
        }

        public String toString() {
            synchronized (mToken) {
                return "WakeLock{"
                    + Integer.toHexString(System.identityHashCode(this))
                    + " held=" + mHeld + ", refCount=" + mCount + "}";
            }
        }

        @Override
        protected void finalize() throws Throwable
        {
            synchronized (mToken) {
                if (mHeld) {
                    Log.wtf(TAG, "WakeLock finalized while still held: " + mTag);
                    try {
                        mService.releaseWakeLock(mToken, 0);
                    } catch (RemoteException e) {
                    }
                }
            }
        }
    }

    /**
     * Get a wake lock at the level of the flags parameter.  Call
     * {@link WakeLock#acquire() acquire()} on the object to acquire the
     * wake lock, and {@link WakeLock#release release()} when you are done.
     *
     * {@samplecode
     *PowerManager pm = (PowerManager)mContext.getSystemService(
     *                                          Context.POWER_SERVICE);
     *PowerManager.WakeLock wl = pm.newWakeLock(
     *                                      PowerManager.SCREEN_DIM_WAKE_LOCK
     *                                      | PowerManager.ON_AFTER_RELEASE,
     *                                      TAG);
     *wl.acquire();
     * // ...
     *wl.release();
     * }
     * @see WakeLock#acquire()
     * @see WakeLock#release()
     */
    public WakeLock newWakeLock(int flags, String tag)
    {
        if (tag == null) {
            throw new NullPointerException("tag is null in PowerManager.newWakeLock");
        }
        return new WakeLock(flags, tag);
    }

    public void userActivity(long when, boolean noChangeLights)
    {
        try {
            mService.userActivity(when, noChangeLights);
        } catch (RemoteException e) {
        }
    }

    public void goToSleep(long time)
    {
        try {
            mService.goToSleep(time);
        } catch (RemoteException e) {
        }
    }

    public void setBacklightBrightness(int brightness)
    {
        try {
            mService.setBacklightBrightness(brightness);
        } catch (RemoteException e) {
        }
    }

    public int getSupportedWakeLockFlags()
    {
        try {
            return mService.getSupportedWakeLockFlags();
        } catch (RemoteException e) {
            return 0;
        }
    }

    public boolean isScreenOn()
    {
        try {
            return mService.isScreenOn();
        } catch (RemoteException e) {
            return false;
        }
    }

    public void reboot(String reason)
    {
        try {
            mService.reboot(reason);
        } catch (RemoteException e) {
        }
    }

    private PowerManager()
    {
    }

    public PowerManager(IPowerManager service, Handler handler)
    {
        mService = service;
        mHandler = handler;
    }
    IPowerManager mService;
    Handler mHandler;
}

该部分代码中声明的内容并不多，成员变量中只有一些关于WakeLock唤醒锁的标志位，此处相关设置不做详细分析，具体参数与对应的工作状态间API。该内中声明了几个重要的成员方法。内部类WakeLock是整个唤醒锁的核心。并提供了acquire()和release()操作。成员方法WakeLock newWakeLock(int flags, String tag)是创建唤醒锁的核心方法，返回一个唤醒锁对象。接下来几个方法均有PowerManagerService.java去实现：userActivity(long when, boolean noChangeLights)用来响应用户操作事件，包括用户点击后唤醒屏幕等；goToSleep(long time) 强制进入睡眠状态，为用户按下Power键后的操作，在com_android_server_InputManager.cpp中调用，其详细操作见PMS中的实现；setBacklightBrightness(int brightness)设置背光操作；isScreenOn()判断当前屏幕点亮状态的接口，比较实用。上述简单的介绍了PowerManager.java，接下来着重分析PowerManagerService.java，该类负责电源管理方面的工作，作为系统基础服务之一，简称PMS。PMS与系统其它服务均有交互，且与HAL层有着紧密的联系，所以PMS的整个系统更加复杂。从PowerManagerService extends IPowerManager.Stub implementsLocalPowerManager, Watchdog.Monitor{}可以看出，PowerManagerService实现的接口以及继承的类关系。第一个实现的IPowerManager.Stub，即一个Binder的基础实现，该实现完成了PMS的Binder通信，即客户端与服务端的通信，见AIDL实现机制。此处为IPowerManager.aidl。

interface IPowerManager
{
    void acquireWakeLock(int flags, IBinder lock, String tag, in WorkSource ws);
    void updateWakeLockWorkSource(IBinder lock, in WorkSource ws);
    void goToSleep(long time);
    void goToSleepWithReason(long time, int reason);
    void releaseWakeLock(IBinder lock, int flags);
    void userActivity(long when, boolean noChangeLights);
    void userActivityWithForce(long when, boolean noChangeLights, boolean force);
    void clearUserActivityTimeout(long now, long timeout);
    void setPokeLock(int pokey, IBinder lock, String tag);
    int getSupportedWakeLockFlags();
    void setStayOnSetting(int val);
    void setMaximumScreenOffTimeount(int timeMs);
    void preventScreenOn(boolean prevent);
    boolean isScreenOn();
    void reboot(String reason);
    void crash(String message);
    void setBacklightBrightness(int brightness);
    void setAttentionLight(boolean on, int color);
}

该接口中声明了AIDL公开的方法，应用层使用PMS的方法与PowerManager不一样。 IPowerManager mPowerManagerService;=IPowerManager.Stub.asInterface(ServiceManager.getService("power")); 该方法获得PMS的本地代理，可调用PMS中在IPowerManager.aidl接口中公开的方法。第二个实现的接口为LocalPowerManager.java

public interface LocalPowerManager {
    // Note: be sure to update BatteryStats if adding or modifying event constants.

    public static final int OTHER_EVENT = 0;
    public static final int BUTTON_EVENT = 1;
    public static final int TOUCH_EVENT = 2;

    public static final int POKE_LOCK_IGNORE_TOUCH_EVENTS = 0x1;

    public static final int POKE_LOCK_SHORT_TIMEOUT = 0x2;
    public static final int POKE_LOCK_MEDIUM_TIMEOUT = 0x4;
    public static final int POKE_LOCK_TIMEOUT_MASK = 0x6;

    void goToSleep(long time);

    // notify power manager when keyboard is opened/closed
    void setKeyboardVisibility(boolean visible);

    // when the keyguard is up, it manages the power state, and userActivity doesn't do anything.
    void enableUserActivity(boolean enabled);

    // the same as the method on PowerManager
    void userActivity(long time, boolean noChangeLights, int eventType);

    boolean isScreenOn();

    void setScreenBrightnessOverride(int brightness);
    void setButtonBrightnessOverride(int brightness);
}

另外一个实现的是Watchdog，此处不做功能性的分析。 PMS的创建在SystemServer中，有ServerThread线程创建，跟PMS有关的操作见下：

    PowerManagerService power = null;
    power = new PowerManagerService();
    ServiceManager.addService(Context.POWER_SERVICE, power);
    power.init(context, lights, ActivityManagerService.self(), battery);
    Watchdog.getInstance().init(context, battery, power, alarm,ActivityManagerService.self());
    power.systemReady();

接下来正式分析PMS系统。先看下其成员变量，重要变量已做注释。

    private static final int LOCK_MASK = PowerManager.PARTIAL_WAKE_LOCK
                                        | PowerManager.SCREEN_DIM_WAKE_LOCK
                                        | PowerManager.SCREEN_BRIGHT_WAKE_LOCK
                                        | PowerManager.FULL_WAKE_LOCK
                                        | PowerManager.PROXIMITY_SCREEN_OFF_WAKE_LOCK;

    //                       time since last state:               time since last event:
    // The short keylight delay comes from secure settings; this is the default.
    private static final int SHORT_KEYLIGHT_DELAY_DEFAULT = 6000; // t+6 sec
    private static final int MEDIUM_KEYLIGHT_DELAY = 15000;       // t+15 sec
    private static final int LONG_KEYLIGHT_DELAY = 6000;        // t+6 sec
    private static final int LONG_DIM_TIME = 7000;              // t+N-5 sec

    // How long to wait to debounce light sensor changes in milliseconds
    private static final int LIGHT_SENSOR_DELAY = 2000;//光线传感器时延

    // light sensor events rate in microseconds
    private static final int LIGHT_SENSOR_RATE = 1000000;//光线传感器频率

    // For debouncing the proximity sensor in milliseconds
    private static final int PROXIMITY_SENSOR_DELAY = 1000;//距离传感器时延

    // trigger proximity if distance is less than 5 cm
    private static final float PROXIMITY_THRESHOLD = 5.0f;//距离传感器距离范围

    // Cached secure settings; see updateSettingsValues()
    private int mShortKeylightDelay = SHORT_KEYLIGHT_DELAY_DEFAULT;//键盘灯短暂时延

    // Default timeout for screen off, if not found in settings database = 15 seconds.
    private static final int DEFAULT_SCREEN_OFF_TIMEOUT = 15000;//默认屏幕超时时间,从Settings中获取

    // flags for setPowerState
    private static final int SCREEN_ON_BIT          = 0x00000001;
    private static final int SCREEN_BRIGHT_BIT      = 0x00000002;
    private static final int BUTTON_BRIGHT_BIT      = 0x00000004;
    private static final int KEYBOARD_BRIGHT_BIT    = 0x00000008;
    private static final int BATTERY_LOW_BIT        = 0x00000010;

    // values for setPowerState

    // SCREEN_OFF == everything off
    private static final int SCREEN_OFF         = 0x00000000;//屏幕灭掉，进入睡眠状态

    // SCREEN_DIM == screen on, screen backlight dim
    private static final int SCREEN_DIM         = SCREEN_ON_BIT;//屏幕灭掉，依然在工作状态

    // SCREEN_BRIGHT == screen on, screen backlight bright
    private static final int SCREEN_BRIGHT      = SCREEN_ON_BIT | SCREEN_BRIGHT_BIT;//屏幕亮，处于工作状态

    // SCREEN_BUTTON_BRIGHT == screen on, screen and button backlights bright
    private static final int SCREEN_BUTTON_BRIGHT  = SCREEN_BRIGHT | BUTTON_BRIGHT_BIT;//屏幕亮，按键灯亮

    // SCREEN_BUTTON_BRIGHT == screen on, screen, button and keyboard backlights bright
    private static final int ALL_BRIGHT         = SCREEN_BUTTON_BRIGHT | KEYBOARD_BRIGHT_BIT;//按键灯亮，键盘灯亮

    // used for noChangeLights in setPowerState()
    private static final int LIGHTS_MASK        = SCREEN_BRIGHT_BIT | BUTTON_BRIGHT_BIT | KEYBOARD_BRIGHT_BIT;//屏幕亮，按键灯亮，键盘灯亮

    boolean mAnimateScreenLights = true;

    static final int ANIM_STEPS = 60/4;
    // Slower animation for autobrightness changes
    static final int AUTOBRIGHTNESS_ANIM_STEPS = 60;

    // These magic numbers are the initial state of the LEDs at boot.  Ideally
    // we should read them from the driver, but our current hardware returns 0
    // for the initial value.  Oops!
    static final int INITIAL_SCREEN_BRIGHTNESS = 255;//屏幕初始状态 亮
    static final int INITIAL_BUTTON_BRIGHTNESS = Power.BRIGHTNESS_OFF;//按键灯初始状态 灭
    static final int INITIAL_KEYBOARD_BRIGHTNESS = Power.BRIGHTNESS_OFF;//键盘灯初始状态 灭

    private final int MY_UID;
    private final int MY_PID;

    private boolean mDoneBooting = false;
    private boolean mBootCompleted = false;//开机完成标志位
    private int mStayOnConditions = 0;
    private final int[] mBroadcastQueue = new int[] { -1, -1, -1 };
    private final int[] mBroadcastWhy = new int[3];
    private boolean mPreparingForScreenOn = false;
    private boolean mSkippedScreenOn = false;
    private boolean mInitialized = false;
    private int mPartialCount = 0;
    private int mPowerState;
    // mScreenOffReason can be WindowManagerPolicy.OFF_BECAUSE_OF_USER,
    // WindowManagerPolicy.OFF_BECAUSE_OF_TIMEOUT or WindowManagerPolicy.OFF_BECAUSE_OF_PROX_SENSOR
    private int mScreenOffReason;
    private int mUserState;
    private boolean mKeyboardVisible = false;
    private int mStartKeyThreshold = 0;
    private boolean mUserActivityAllowed = true;
    private int mProximityWakeLockCount = 0;
    private boolean mProximitySensorEnabled = false;//距离传感器是否可用
    private boolean mProximitySensorActive = false;//当前距离传感器是否工作
    private int mProximityPendingValue = -1; // -1 == nothing, 0 == inactive, 1 == active
    private long mLastProximityEventTime;
    private int mScreenOffTimeoutSetting;//屏幕超时设置
    private int mMaximumScreenOffTimeout = Integer.MAX_VALUE;
    private int mKeylightDelay;
    private int mDimDelay;
    private int mScreenOffDelay;
    private int mWakeLockState;
    private long mLastEventTime = 0;
    private long mScreenOffTime;
    private volatile WindowManagerPolicy mPolicy;
    private final LockList mLocks = new LockList();
    private Intent mScreenOffIntent;
    private Intent mScreenOnIntent;
    private LightsService mLightsService;//系统LightsService
    private Context mContext;
    private LightsService.Light mLcdLight;//屏
    private LightsService.Light mButtonLight;//按键灯
    private LightsService.Light mKeyboardLight;//键盘灯(若有实体输入法按键)
    private LightsService.Light mAttentionLight;//通知等(若有信号灯)
    private UnsynchronizedWakeLock mBroadcastWakeLock;//广播同步锁
    private UnsynchronizedWakeLock mStayOnWhilePluggedInScreenDimLock;
    private UnsynchronizedWakeLock mStayOnWhilePluggedInPartialLock;
    private UnsynchronizedWakeLock mPreventScreenOnPartialLock;
    private UnsynchronizedWakeLock mProximityPartialLock;
    private HandlerThread mHandlerThread;
    private HandlerThread mScreenOffThread;
    private Handler mScreenOffHandler;
    private Handler mHandler;

    //计时器线程，主要完成管理屏幕超时操作，如当有用户点击屏幕时
    //该计时器重新开始计时，直到无任何操作，且到屏幕时延最大时间，将屏幕灭掉
    private final TimeoutTask mTimeoutTask = new TimeoutTask();
    private final BrightnessState mScreenBrightness
            = new BrightnessState(SCREEN_BRIGHT_BIT);//亮度管理
    private boolean mStillNeedSleepNotification;
    private boolean mIsPowered = false;
    private IActivityManager mActivityService;
    private IBatteryStats mBatteryStats;
    private BatteryService mBatteryService;//电池服务
    private SensorManager mSensorManager;//Sensor管理器
    private Sensor mProximitySensor;//距离传感器
    private Sensor mLightSensor;//光线传感器
    private Sensor mLightSensorKB;//光线传感器
    private boolean mLightSensorEnabled;//光线传感器是否可用
    private float mLightSensorValue = -1;
    private boolean mProxIgnoredBecauseScreenTurnedOff = false;
    private int mHighestLightSensorValue = -1;
    private boolean mLightSensorPendingDecrease = false;
    private boolean mLightSensorPendingIncrease = false;
    private float mLightSensorPendingValue = -1;
    private int mLightSensorScreenBrightness = -1;
    private int mLightSensorButtonBrightness = -1;
    private int mLightSensorKeyboardBrightness = -1;
    private boolean mDimScreen = true;
    private boolean mIsDocked = false;
    private long mNextTimeout;
    private volatile int mPokey = 0;
    private volatile boolean mPokeAwakeOnSet = false;
    private volatile boolean mInitComplete = false;
    private final HashMap mPokeLocks = new HashMap();
    // mLastScreenOnTime is the time the screen was last turned on
    private long mLastScreenOnTime;
    private boolean mPreventScreenOn;
    private int mScreenBrightnessOverride = -1;
    private int mButtonBrightnessOverride = -1;
    private int mScreenBrightnessDim;
    private boolean mUseSoftwareAutoBrightness;
    private boolean mAutoBrightessEnabled;
    private int[] mAutoBrightnessLevels;
    private int[] mLcdBacklightValues;
    private int[] mButtonBacklightValues;
    private int[] mKeyboardBacklightValues;
    private int mLightSensorWarmupTime;
    boolean mUnplugTurnsOnScreen;
    private int mWarningSpewThrottleCount;
    private long mWarningSpewThrottleTime;
    private int mAnimationSetting = ANIM_SETTING_OFF;

    // Must match with the ISurfaceComposer constants in C++.
    private static final int ANIM_SETTING_ON = 0x01;
    private static final int ANIM_SETTING_OFF = 0x10;

    // Used when logging number and duration of touch-down cycles
    private long mTotalTouchDownTime;
    private long mLastTouchDown;
    private int mTouchCycles;

    // could be either static or controllable at runtime
    private static final boolean mSpew = false;
    private static final boolean mDebugProximitySensor = (false || mSpew);
    private static final boolean mDebugLightSensor = (false || mSpew);

    private native void nativeInit();
    private native void nativeSetPowerState(boolean screenOn, boolean screenBright);
    private native void nativeStartSurfaceFlingerAnimation(int mode);

本地方法的实现是在com_android_server_PowerManagerService.cpp中。首先看其构造方法：

    PowerManagerService() {
        // Hack to get our uid...  should have a func for this.
        long token = Binder.clearCallingIdentity();
        MY_UID = Process.myUid();//获取本进程的UID以及PID
        MY_PID = Process.myPid();
        Binder.restoreCallingIdentity(token);
				//设置超时时间为1周。Power类封装了同Linux交互的接口。
        // XXX remove this when the kernel doesn't timeout wake locks
        Power.setLastUserActivityTimeout(7*24*3600*1000); // one week
				//初始化两个状态变量
        // assume nothing is on yet
        mUserState = mPowerState = 0;
				//将自己添加到看门狗Watchdog的监控管理队列中
        // Add ourself to the Watchdog monitors.
        Watchdog.getInstance().addMonitor(this);
    }

构造方法比较简单，接着分析init()函数，还函数完成了一些重要的初始化操作。

		//电源管理的初始化操作函数，完成一些赋值操作，线程管理等
    void init(Context context, LightsService lights, IActivityManager activity,
            BatteryService battery) {
        mLightsService = lights;
        mContext = context;
        mActivityService = activity;
        mBatteryStats = BatteryStatsService.getService();
        mBatteryService = battery;

        mLcdLight = lights.getLight(LightsService.LIGHT_ID_BACKLIGHT);
        mButtonLight = lights.getLight(LightsService.LIGHT_ID_BUTTONS);
        mKeyboardLight = lights.getLight(LightsService.LIGHT_ID_KEYBOARD);
        mAttentionLight = lights.getLight(LightsService.LIGHT_ID_ATTENTION);

        nativeInit();//本地JNI方法
        synchronized (mLocks) {
            updateNativePowerStateLocked();
        }

        mInitComplete = false;//初始化未完成标志
        //灭屏操作线程
        //该操作的作用，手机一开机，屏幕亮度并不是立即就达到用户设置的亮度值
        //而是有一个缓慢的变化过程，经过一段渐变之后才达到用户设置的亮度值，该现象在此处完成
        mScreenOffThread = new HandlerThread("PowerManagerService.mScreenOffThread") {
            @Override
            protected void onLooperPrepared() {
                mScreenOffHandler = new Handler();
                synchronized (mScreenOffThread) {
                    mInitComplete = true;
                    mScreenOffThread.notifyAll();
                }
            }
        };
        mScreenOffThread.start();

        synchronized (mScreenOffThread) {
            while (!mInitComplete) {
                try {
                    mScreenOffThread.wait();
                } catch (InterruptedException e) {
                    // Ignore
                }
            }
        }

        mInitComplete = false;
        //Handler 线程，初始化其他的一些线程，此处调用initInThread()函数
        mHandlerThread = new HandlerThread("PowerManagerService") {
            @Override
            protected void onLooperPrepared() {
                super.onLooperPrepared();
                initInThread();
            }
        };
        mHandlerThread.start();
				//此处为典型的线程A创建线程B，然后线程Ａ等待线程Ｂ创建完成
        synchronized (mHandlerThread) {
            while (!mInitComplete) {
                try {
                    mHandlerThread.wait();
                } catch (InterruptedException e) {
                    // Ignore
                }
            }
        }

        nativeInit();
        //当用户有任何操作可强制唤醒睡眠状态
        synchronized (mLocks) {
            updateNativePowerStateLocked();
            // We make sure to start out with the screen on due to user activity.
            // (They did just boot their device, after all.)
            forceUserActivityLocked();
            mInitialized = true;
        }
    }

关键部分已经添加注释，接下来另外一个初始化操作函数是initInThread()，被init()调用。

		//线程初始化操作，被init()调用
    void initInThread() {
        mHandler = new Handler();

        mBroadcastWakeLock = new UnsynchronizedWakeLock(
                                PowerManager.PARTIAL_WAKE_LOCK, "sleep_broadcast", true);
        mStayOnWhilePluggedInScreenDimLock = new UnsynchronizedWakeLock(
                                PowerManager.SCREEN_DIM_WAKE_LOCK, "StayOnWhilePluggedIn Screen Dim", false);
        mStayOnWhilePluggedInPartialLock = new UnsynchronizedWakeLock(
                                PowerManager.PARTIAL_WAKE_LOCK, "StayOnWhilePluggedIn Partial", false);
        mPreventScreenOnPartialLock = new UnsynchronizedWakeLock(
                                PowerManager.PARTIAL_WAKE_LOCK, "PreventScreenOn Partial", false);
        mProximityPartialLock = new UnsynchronizedWakeLock(
                                PowerManager.PARTIAL_WAKE_LOCK, "Proximity Partial", false);

        mScreenOnIntent = new Intent(Intent.ACTION_SCREEN_ON);
        mScreenOnIntent.addFlags(Intent.FLAG_RECEIVER_REGISTERED_ONLY);
        mScreenOffIntent = new Intent(Intent.ACTION_SCREEN_OFF);
        mScreenOffIntent.addFlags(Intent.FLAG_RECEIVER_REGISTERED_ONLY);

        Resources resources = mContext.getResources();

        mAnimateScreenLights = resources.getBoolean(
                com.android.internal.R.bool.config_animateScreenLights);

        mUnplugTurnsOnScreen = resources.getBoolean(
                com.android.internal.R.bool.config_unplugTurnsOnScreen);

        mScreenBrightnessDim = resources.getInteger(
                com.android.internal.R.integer.config_screenBrightnessDim);

        // read settings for auto-brightness
        mUseSoftwareAutoBrightness = resources.getBoolean(
                com.android.internal.R.bool.config_automatic_brightness_available);
        if (mUseSoftwareAutoBrightness) {
            mAutoBrightnessLevels = resources.getIntArray(
                    com.android.internal.R.array.config_autoBrightnessLevels);
            mLcdBacklightValues = resources.getIntArray(
                    com.android.internal.R.array.config_autoBrightnessLcdBacklightValues);
            mButtonBacklightValues = resources.getIntArray(
                    com.android.internal.R.array.config_autoBrightnessButtonBacklightValues);
            mKeyboardBacklightValues = resources.getIntArray(
                    com.android.internal.R.array.config_autoBrightnessKeyboardBacklightValues);
            mLightSensorWarmupTime = resources.getInteger(
                    com.android.internal.R.integer.config_lightSensorWarmupTime);
        }

       ContentResolver resolver = mContext.getContentResolver();
        Cursor settingsCursor = resolver.query(Settings.System.CONTENT_URI, null,
                "(" + Settings.System.NAME + "=?) or ("
                        + Settings.System.NAME + "=?) or ("
                        + Settings.System.NAME + "=?) or ("
                        + Settings.System.NAME + "=?) or ("
                        + Settings.System.NAME + "=?) or ("
                        + Settings.System.NAME + "=?)",
                new String[]{STAY_ON_WHILE_PLUGGED_IN, SCREEN_OFF_TIMEOUT, DIM_SCREEN,
                        SCREEN_BRIGHTNESS_MODE, WINDOW_ANIMATION_SCALE, TRANSITION_ANIMATION_SCALE},
                null);
        mSettings = new ContentQueryMap(settingsCursor, Settings.System.NAME, true, mHandler);
        SettingsObserver settingsObserver = new SettingsObserver();
        mSettings.addObserver(settingsObserver);

        // pretend that the settings changed so we will get their initial state
        settingsObserver.update(mSettings, null);

        // register for the battery changed notifications
        IntentFilter filter = new IntentFilter();
        filter.addAction(Intent.ACTION_BATTERY_CHANGED);
        mContext.registerReceiver(new BatteryReceiver(), filter);
        filter = new IntentFilter();
        filter.addAction(Intent.ACTION_BOOT_COMPLETED);
        mContext.registerReceiver(new BootCompletedReceiver(), filter);
        filter = new IntentFilter();
        filter.addAction(Intent.ACTION_DOCK_EVENT);
        mContext.registerReceiver(new DockReceiver(), filter);

        // Listen for secure settings changes
        mContext.getContentResolver().registerContentObserver(
            Settings.Secure.CONTENT_URI, true,
            new ContentObserver(new Handler()) {
                public void onChange(boolean selfChange) {
                    updateSettingsValues();
                }
            });
        updateSettingsValues();

        synchronized (mHandlerThread) {
            mInitComplete = true;
            mHandlerThread.notifyAll();
        }
    }

至此，PMS的初始化创建已经完成。接下来分下几个重要的函数。

    void systemReady() {
    		//创建一个SensorManager　用于和系统的传感器系统交互，该部分多为native方法
        mSensorManager = new SensorManager(mHandlerThread.getLooper());
        mProximitySensor = mSensorManager.getDefaultSensor(Sensor.TYPE_PROXIMITY);
        // don't bother with the light sensor if auto brightness is handled in hardware
        if (mUseSoftwareAutoBrightness) {
            mLightSensor = mSensorManager.getDefaultSensor(Sensor.TYPE_LIGHT);
        }
        mLightSensorKB = mSensorManager.getDefaultSensor(Sensor.TYPE_LIGHT);
        if(mSensorManager != null && mLightSensorKB != null){
            mSensorManager.registerListener(mLightListenerKB, mLightSensorKB,
                    LIGHT_SENSOR_RATE);
        }

        // wait until sensors are enabled before turning on screen.
        // some devices will not activate the light sensor properly on boot
        // unless we do this.
        if (mUseSoftwareAutoBrightness) {
            // turn the screen on
            setPowerState(SCREEN_BRIGHT);
        } else {//不考虑软件自动亮度调节，所以执行此处
            // turn everything on
            setPowerState(ALL_BRIGHT);//设置手机电源状态为ALL_BRIGHT，即屏幕按键灯都打开
        }

        synchronized (mLocks) {
            Slog.d(TAG, "system ready!");
            mDoneBooting = true;
						//根据情况启动LightSensor
            enableLightSensorLocked(mUseSoftwareAutoBrightness && mAutoBrightessEnabled);

            long identity = Binder.clearCallingIdentity();
            try {//通知BatteryStatsService 他将统计相关的电量使用情况
                mBatteryStats.noteScreenBrightness(getPreferredBrightness());
                mBatteryStats.noteScreenOn();
            } catch (RemoteException e) {
                // Nothing interesting to do.
            } finally {
                Binder.restoreCallingIdentity(identity);
            }
        }
    }

systemReady()完成的主要操作：传感器操作；电源状态设置；BatteryStatsService管理。 bootCompleted()开机完成之后调用的函数。

    void bootCompleted() {
        Slog.d(TAG, "bootCompleted");
        synchronized (mLocks) {
            mBootCompleted = true;
            //此时将重新计算屏幕的超时时间
            userActivity(SystemClock.uptimeMillis(), false, BUTTON_EVENT, true);
            //根据当前的手机状态判断是否进入睡眠状态(如插上USB充电状态等)
            updateWakeLockLocked();
            mLocks.notifyAll();
        }
    }

内部类WakeLock是android提供给应用程序获取电力资源的的唯一方法，只要还有地方使用WakeLock，系统就不会进入休眠状态。PMS中实现了PowerManager.java中夫人相应定义和方法。该类是电源管理系统唤醒与睡眠机制的核心。此处不再做详细分析。后续会专题研究。根据前面的分析，PMS有事需要进行点亮屏幕，打开按键灯等操作，为此android提供了Power类以及LightService满足PMS的要求。这两个类比较简单，但是背后的Kernel层相对复杂些。这些Light点亮操作均为LightService通过JNI读写文件节点，通过设置1或0来操作。此处不再详细研究。 PMS中的userActivity()分析。关于userActivity()的作用。比如打开手机，并解锁进入桌面，如果在规定的时间内不操作手机，那么屏幕将变暗，最后关闭。如果在此过程中，触碰屏幕，屏幕又会重新亮起，这个触动屏幕的操作将导致userActivity()最终被调用。

		//触动屏幕时，该函数将被调用，由PhoneWindowManager.java 等调用
    private void userActivity(long time, long timeoutOverride, boolean noChangeLights,
            int eventType, boolean force) {
				//mPokey和输入事件处理策略有关，如果此处的条件满足则表示忽略TOUCH_EVENTS
        if (((mPokey & POKE_LOCK_IGNORE_TOUCH_EVENTS) != 0) && (eventType == TOUCH_EVENT)) {
            if (false) {
                Slog.d(TAG, "dropping touch mPokey=0x" + Integer.toHexString(mPokey));
            }
            return;
        }

        synchronized (mLocks) {
            if (mSpew) {
                Slog.d(TAG, "userActivity mLastEventTime=" + mLastEventTime + " time=" + time
                        + " mUserActivityAllowed=" + mUserActivityAllowed
                        + " mUserState=0x" + Integer.toHexString(mUserState)
                        + " mWakeLockState=0x" + Integer.toHexString(mWakeLockState)
                        + " mProximitySensorActive=" + mProximitySensorActive
                        + " timeoutOverride=" + timeoutOverride
                        + " force=" + force);
            }
            // ignore user activity if we are in the process of turning off the screen
            if (isScreenTurningOffLocked()) {
                Slog.d(TAG, "ignoring user activity while turning off screen");
                return;
            }
            // Disable proximity sensor if if user presses power key while we are in the
            // "waiting for proximity sensor to go negative" state.
            if (mProximitySensorActive && mProximityWakeLockCount == 0) {
                mProximitySensorActive = false;//控制接近传感器
            }
            if (mLastEventTime <= time || force) {
                mLastEventTime = time;
                if ((mUserActivityAllowed ) || force) {
                    // Only turn on button backlights if a button was pressed
                    // and auto brightness is disabled
                    if (eventType == BUTTON_EVENT && !mUseSoftwareAutoBrightness) {
                        mUserState =  SCREEN_BRIGHT; //设置用户事件导致的mUserState
                    } else {
                        // don't clear button/keyboard backlights when the screen is touched.
                        mUserState |= SCREEN_BRIGHT;
                    }

                    int uid = Binder.getCallingUid();
                    long ident = Binder.clearCallingIdentity();
                    try {
                    	  //通知BatteryStatsService进行电量统计
                        mBatteryStats.noteUserActivity(uid, eventType);
                    } catch (RemoteException e) {
                        // Ignore
                    } finally {
                        Binder.restoreCallingIdentity(ident);
                    }
										//重新计算WakeLock状态
                    mWakeLockState = mLocks.reactivateScreenLocksLocked();
                    setPowerState(mUserState | mWakeLockState, noChangeLights,
                            WindowManagerPolicy.OFF_BECAUSE_OF_USER);
                    if(mProximitySensorActive){
                    //重新开始屏幕计时
                    setTimeoutLocked(time, timeoutOverride, SCREEN_OFF);
                    }
                    else
                    {
                    		//重新开始屏幕计时
                        setTimeoutLocked(time,timeoutOverride,SCREEN_BRIGHT);
                     }
                }
            }
        }

        if (mPolicy != null) {
        	//mPolicy指向PhoneWindowManager，用于和WindowManagerService交互
            mPolicy.userActivity();
        }
    }

        该函数重点在于重置计时器超时函数setTimeoutLocked()，并由setPowerState()真正去设置屏幕状态，同时屏幕状态切换由TimeoutTask完成，此处不再详细研究。         另外PMS系统中，与其交互的两个重要Service：BatteryService和BatteryStatsService。BatteryService提供接口用于获取电池信息，充电状态等。BatteryStatsService主要用于用电统计，通过它可知谁是系统中的耗电大户。         至此，PMS分析结束。        接下来，简单介绍下框架层其他几个相关类。        首先，Power.java和andriod_os_Power.cpp        PowerManagerSerivive.java中调用了一些本地方法，该文件作为这些方法的java层与jni的中间层，声明了本地接口。该本分实现是在Power.java中。
                public static native void acquireWakeLock(int lock, String id);
                public static native void releaseWakeLock(String id);
                public static native int setScreenState(boolean on);
                public static native int setLastUserActivityTimeout(long ms);
                @Deprecated
                public static native void shutdown();
                public static void reboot(String reason) throws IOException         power.c该文件作为Android系统的最底层，与Linux内核的power manager交互。
                static int64_t systemTime()；
                static int open_file_descriptors(const char * const paths[])；
                static inline void initialize_fds(void)；
                int acquire_wake_lock(int lock, const char* id)；
                int set_last_user_activity_timeout(int64_t delay)；
                int set_screen_state(int on)；         框架层，与电源管理相关的类还有一些，介于篇幅，不再一一分析了。

2，内核层分析

        接下来简单看下内核层的相关文件，文件列表上述已经列出。         其主要代码在下列位置:
       drivers/android/power.c
       其对Kernel 提供的接口函数有
              EXPORT_SYMBOL(android_init_suspend_lock); //初始化Suspendlock,在使用前必须做初始化
              EXPORT_SYMBOL(android_uninit_suspend_lock); //释放suspendlock 相关的资源
              EXPORT_SYMBOL(android_lock_suspend); //申请lock,必须调用相应的unlock 来释放它
              EXPORT_SYMBOL(android_lock_suspend_auto_expire);//申请partial wakelock, 定时时间到后会自动释放
              EXPORT_SYMBOL(android_unlock_suspend); //释放lock
              EXPORT_SYMBOL(android_power_wakeup); //唤醒系统到on
              EXPORT_SYMBOL(android_register_early_suspend); //注册earlysuspend 的驱动
              EXPORT_SYMBOL(android_unregister_early_suspend); //取消已经注册的early suspend 的驱动        提供给Android Framework 层的proc 文件如下:
              "/sys/android_power/acquire_partial_wake_lock" //申请partial wake lock
              "/sys/android_power/acquire_full_wake_lock" //申请full wakelock
              "/sys/android_power/release_wake_lock" //释放相应的wake lock
              "/sys/android_power/request_state" //请求改变系统状态,进standby 和回到wakeup 两种状态
              "/sys/android_power/state" //指示当前系统的状态        Android 的电源管理主要是通过Wake lock 来实现的,在最底层主要是通过如下三个队列来实现其管理:
              static LIST_HEAD(g_inactive_locks);
              static LIST_HEAD(g_active_partial_wake_locks);
              static LIST_HEAD(g_active_full_wake_locks);
       所有初始化后的lock 都会被插入到g_inactive_locks 的队列中,而当前活动的partial wake lock 都会被插入到g_active_partial_wake_locks 队列中, 活动的full wake lock 被插入到g_active_full_wake_locks 队列中, 所有的partial wakelock 和full wake lock 在过期后或unlock 后都会被移到inactive的队列,等待下次的调用.
在Kernel 层使用wake lock 步骤如下:
       1.调用函数android_init_suspend_lock 初始化一个wake lock
       2.调用相关申请lock 的函数android_lock_suspend 或android_lock_suspend_auto_expire 请求lock,这里只能申请partial wake lock, 如果要申请Full wake lock,则需要调用函数android_lock_partial_suspend_auto_expire(该函数没有EXPORT出来),这个命名有点奇怪,不要跟前面的android_lock_suspend_auto_expire 搞混了.
       3.如果是auto expire 的wake lock 则可以忽略,不然则必须及时的把相关的wake lock 释放掉,否则会造成系统长期运行在高功耗的状态.
       4.在驱动卸载或不再使用Wake lock 时请记住及时的调用android_uninit_suspend_lock 释放资源.        系统的状态:
              USER_AWAKE, //Full on status
              USER_NOTIFICATION, //Early suspended driver but CPU keep on
              USER_SLEEP // CPU enter sleep mode        接着分析下,Kernel的wake lock唤醒操作。        框架层acquireWakeLock()-- >android_os_Power.cpp-- >acquireWakeLock()-- >power.c-- >acquire_wake_lock()。

int acquire_wake_lock(int lock, const char* id)
{
initialize_fds();
// LOGI("acquire_wake_lock lock=%d id='%s'
", lock, id);
if (g_error) return g_error;
int fd;
if (lock == PARTIAL_WAKE_LOCK) {
fd = g_fds[ACQUIRE_PARTIAL_WAKE_LOCK];
}
else {
return EINVAL;
}
return write(fd, id, strlen(id));
}

到现在为止，我们的代码流程已经走了一大半了，我们一开始介绍的android的上面几层framework层、JNI层、HAL层都已经介绍了就剩下Kernel层了。下面就应该是和kernel层进行交互了。但是在android/hardware/libhardware_legacy/power/power.c中的acquire_wake_lock()函数似乎没法和kernel层进行通信,在这个函数的最后不是还有一个返回语句return write(fd, id, strlen(id)),该write方法为重点。此时我们先跳过power.c中的acquire_wake_lock()，先分析/kernel/kernel/power/main.c中的相关方法，然后再回头分析power.c中的acquire_wake_lock()中的write(fd, id, strlen(id))。这样整个流程就能顺利连接起来。 /kernel/kernel/power/main.c

#include
#include
#include
#include

#include "power.h"

DEFINE_MUTEX(pm_mutex);

#ifdef CONFIG_PM_SLEEP

/* Routines for PM-transition notifications */

static BLOCKING_NOTIFIER_HEAD(pm_chain_head);

int register_pm_notifier(struct notifier_block *nb)
{
	return blocking_notifier_chain_register(&pm_chain_head, nb);
}
EXPORT_SYMBOL_GPL(register_pm_notifier);

int unregister_pm_notifier(struct notifier_block *nb)
{
	return blocking_notifier_chain_unregister(&pm_chain_head, nb);
}
EXPORT_SYMBOL_GPL(unregister_pm_notifier);

int pm_notifier_call_chain(unsigned long val)
{
	return (blocking_notifier_call_chain(&pm_chain_head, val, NULL)
			== NOTIFY_BAD) ? -EINVAL : 0;
}

/* If set, devices may be suspended and resumed asynchronously. */
int pm_async_enabled = 1;

static ssize_t pm_async_show(struct kobject *kobj, struct kobj_attribute *attr,
			     char *buf)
{
	return sprintf(buf, "%d
", pm_async_enabled);
}

static ssize_t pm_async_store(struct kobject *kobj, struct kobj_attribute *attr,
			      const char *buf, size_t n)
{
	unsigned long val;

	if (strict_strtoul(buf, 10, &val))
		return -EINVAL;

	if (val > 1)
		return -EINVAL;

	pm_async_enabled = val;
	return n;
}

power_attr(pm_async);

#ifdef CONFIG_PM_DEBUG
int pm_test_level = TEST_NONE;

static const char * const pm_tests[__TEST_AFTER_LAST] = {
	[TEST_NONE] = "none",
	[TEST_CORE] = "core",
	[TEST_CPUS] = "processors",
	[TEST_PLATFORM] = "platform",
	[TEST_DEVICES] = "devices",
	[TEST_FREEZER] = "freezer",
};

static ssize_t pm_test_show(struct kobject *kobj, struct kobj_attribute *attr,
				char *buf)
{
	char *s = buf;
	int level;

	for (level = TEST_FIRST; level <= TEST_MAX; level++)
		if (pm_tests[level]) {
			if (level == pm_test_level)
				s += sprintf(s, "[%s] ", pm_tests[level]);
			else
				s += sprintf(s, "%s ", pm_tests[level]);
		}

	if (s != buf)
		/* convert the last space to a newline */
		*(s-1) = '
';

	return (s - buf);
}

static ssize_t pm_test_store(struct kobject *kobj, struct kobj_attribute *attr,
				const char *buf, size_t n)
{
	const char * const *s;
	int level;
	char *p;
	int len;
	int error = -EINVAL;

	p = memchr(buf, '
', n);
	len = p ? p - buf : n;

	mutex_lock(&pm_mutex);

	level = TEST_FIRST;
	for (s = &pm_tests[level]; level <= TEST_MAX; s++, level++)
		if (*s && len == strlen(*s) && !strncmp(buf, *s, len)) {
			pm_test_level = level;
			error = 0;
			break;
		}

	mutex_unlock(&pm_mutex);

	return error ? error : n;
}

power_attr(pm_test);
#endif /* CONFIG_PM_DEBUG */

#endif /* CONFIG_PM_SLEEP */

struct kobject *power_kobj;

static ssize_t state_show(struct kobject *kobj, struct kobj_attribute *attr,
			  char *buf)
{
	char *s = buf;
#ifdef CONFIG_SUSPEND
	int i;

	for (i = 0; i < PM_SUSPEND_MAX; i++) {
		if (pm_states[i] && valid_state(i))
			s += sprintf(s,"%s ", pm_states[i]);
	}
#endif
#ifdef CONFIG_HIBERNATION
	s += sprintf(s, "%s
", "disk");
#else
	if (s != buf)
		/* convert the last space to a newline */
		*(s-1) = '
';
#endif
	return (s - buf);
}

static ssize_t state_store(struct kobject *kobj, struct kobj_attribute *attr,
			   const char *buf, size_t n)
{
#ifdef CONFIG_SUSPEND
#ifdef CONFIG_EARLYSUSPEND
	suspend_state_t state = PM_SUSPEND_ON;
#else
	suspend_state_t state = PM_SUSPEND_STANDBY;
#endif
	const char * const *s;
#endif
	char *p;
	int len;
	int error = -EINVAL;

	p = memchr(buf, '
', n);
	len = p ? p - buf : n;

	/* First, check if we are requested to hibernate */
	if (len == 4 && !strncmp(buf, "disk", len)) {
		error = hibernate();
  goto Exit;
	}

#ifdef CONFIG_SUSPEND
	for (s = &pm_states[state]; state < PM_SUSPEND_MAX; s++, state++) {
		if (*s && len == strlen(*s) && !strncmp(buf, *s, len))
			break;
	}
	if (state < PM_SUSPEND_MAX && *s)
#ifdef CONFIG_EARLYSUSPEND
		if (state == PM_SUSPEND_ON || valid_state(state)) {
			error = 0;
			request_suspend_state(state);
		}
#else
		error = enter_state(state);
#endif
#endif

 Exit:
	return error ? error : n;
}

power_attr(state);

#ifdef CONFIG_PM_SLEEP


static ssize_t wakeup_count_show(struct kobject *kobj,
				struct kobj_attribute *attr,
				char *buf)
{
	unsigned int val;

	return pm_get_wakeup_count(&val) ? sprintf(buf, "%u
", val) : -EINTR;
}

static ssize_t wakeup_count_store(struct kobject *kobj,
				struct kobj_attribute *attr,
				const char *buf, size_t n)
{
	unsigned int val;

	if (sscanf(buf, "%u", &val) == 1) {
		if (pm_save_wakeup_count(val))
			return n;
	}
	return -EINVAL;
}

power_attr(wakeup_count);
#endif /* CONFIG_PM_SLEEP */

#ifdef CONFIG_PM_TRACE
int pm_trace_enabled;

static ssize_t pm_trace_show(struct kobject *kobj, struct kobj_attribute *attr,
			     char *buf)
{
	return sprintf(buf, "%d
", pm_trace_enabled);
}

static ssize_t
pm_trace_store(struct kobject *kobj, struct kobj_attribute *attr,
	       const char *buf, size_t n)
{
	int val;

	if (sscanf(buf, "%d", &val) == 1) {
		pm_trace_enabled = !!val;
		return n;
	}
	return -EINVAL;
}

power_attr(pm_trace);

static ssize_t pm_trace_dev_match_show(struct kobject *kobj,
				       struct kobj_attribute *attr,
				       char *buf)
{
	return show_trace_dev_match(buf, PAGE_SIZE);
}

static ssize_t
pm_trace_dev_match_store(struct kobject *kobj, struct kobj_attribute *attr,
			 const char *buf, size_t n)
{
	return -EINVAL;
}

power_attr(pm_trace_dev_match);

#endif /* CONFIG_PM_TRACE */

#ifdef CONFIG_USER_WAKELOCK
power_attr(wake_lock);
power_attr(wake_unlock);
#endif

static struct attribute * g[] = {
	&state_attr.attr,
#ifdef CONFIG_PM_TRACE
	&pm_trace_attr.attr,
	&pm_trace_dev_match_attr.attr,
#endif
#ifdef CONFIG_PM_SLEEP
	&pm_async_attr.attr,
	&wakeup_count_attr.attr,
#ifdef CONFIG_PM_DEBUG
	&pm_test_attr.attr,
#endif
#ifdef CONFIG_USER_WAKELOCK
	&wake_lock_attr.attr,
	&wake_unlock_attr.attr,
#endif
#endif
	NULL,
};

static struct attribute_group attr_group = {
	.attrs = g,
};

#ifdef CONFIG_PM_RUNTIME
struct workqueue_struct *pm_wq;
EXPORT_SYMBOL_GPL(pm_wq);

static int __init pm_start_workqueue(void)
{
	pm_wq = alloc_workqueue("pm", WQ_FREEZABLE, 0);

	return pm_wq ? 0 : -ENOMEM;
}
#else
static inline int pm_start_workqueue(void) { return 0; }
#endif

static int __init pm_init(void)
{
	int error = pm_start_workqueue();
	if (error)
		return error;
	hibernate_image_size_init();
	hibernate_reserved_size_init();
	power_kobj = kobject_create_and_add("power", NULL);
	if (!power_kobj)
		return -ENOMEM;
	return sysfs_create_group(power_kobj, &attr_group);
}

core_initcall(pm_init);

这段代码虽然简短，但看起来是不是还是比较费劲，没关系，我们倒过来看就比较清楚了。上面代码中的最后一个函数pm_init(void)的返回值为 sysfs_create_group(power_kobj, &attr_group);的意思就是当我们在对sysfs/下相对的节点进行操作的时候会调用与attr_group 里的相关函数。还是上面一个文件main.c。

#ifdef CONFIG_USER_WAKELOCK
power_attr(wake_lock);
power_attr(wake_unlock);
#endif

static struct attribute * g[] = {
	&state_attr.attr,
#ifdef CONFIG_PM_TRACE
	&pm_trace_attr.attr,
	&pm_trace_dev_match_attr.attr,
#endif
#ifdef CONFIG_PM_SLEEP
	&pm_async_attr.attr,
	&wakeup_count_attr.attr,
#ifdef CONFIG_PM_DEBUG
	&pm_test_attr.attr,
#endif
#ifdef CONFIG_USER_WAKELOCK
	&wake_lock_attr.attr,
	&wake_unlock_attr.attr,
#endif
#endif
	NULL,
};

static struct attribute_group attr_group = {
	.attrs = g,
};

再往上面看其实就是指&wake_lock_attr.attr(对不同情况的操作会调用不同的attr_group)。power_attr(wake_lock)就是使具体的操作函数与其挂钩。我们现在来看一看这个挂钩过程是怎么实现的。 power_attr(name)的定义是在/kernel/kernel/power/power.h

#define power_attr(_name)
static struct kobj_attribute _name##_attr = {
.attr = {
.name = __stringify(_name),
.mode = 0644,
},
.show = _name##_show,
.store = _name##_store,
}

在该函数中##的作用通俗点讲就是“连接”的意思。比如power_attr(wake_lock)：

static struct kobj_attribute wake_lock_attr = {
.attr = {
.name = __stringify(wake_lock),
.mode = 0644,
},
.show = wake_lock_show,
.store = wake_lock_store,
}

函数wake_lock_store和wake_lock_show就定义在android/kernel/kernel/power/userwakelock.c中。因此当我们对/sys/power/wake_lock进行操作的时候就会调用到userwakelock.c中定义的wake_lock_store()函数。好了，我们该回到原来我们产生疑问的地方了，在 power.c中我们将重新研究一下这这段代码，这时我们还得关注其中的另一个函数initialize_fds()。

initialize_fds(void)
{
// XXX: should be this:
//pthread_once(&g_initialized, open_file_descriptors);
// XXX: not this:
if (g_initialized == 0) {
if(open_file_descriptors(NEW_PATHS) < 0) {
open_file_descriptors(OLD_PATHS);
on_state = "wake";
off_state = "standby";
}
g_initialized = 1;
}
}

        其实这个函数中最核心的步骤就是open_file_descriptors(NEW_PATHS) ；而
        const char * const NEW_PATHS[] = {
                "/sys/power/wake_lock",
                "/sys/power/wake_unlock",
                "/sys/power/state"
        };        总之经过着一些列的步骤后，最终我们将在 return write(fd, id, strlen(id))时调用android/kernel/kernel/power/userwakelock.c 中的 wake_lock_store()函数。

ssize_t wake_lock_store(
struct kobject *kobj, struct kobj_attribute *attr,
const char *buf, size_t n)
{
long timeout;
struct user_wake_lock *l;
mutex_lock(&tree_lock);
l = lookup_wake_lock_name(buf, 1, &timeout);
if (IS_ERR(l)) {
n = PTR_ERR(l);
goto bad_name;
}
if (de






      Ta的文章  更多 >>





          Android电源管理机制剖析

                0 个评论



          并行算法设计基本原则

                0 个评论



          排名前7位的Linux IoT项目

                0 个评论



          嵌入式Linux根文件系统和挂载

                0 个评论













      热门文章









      举报内容








检举类型


检举内容


检举用户




检举原因



广告推广


恶意灌水


回答内容与提问无关



抄袭答案


其他





检举说明(必填)



















 打开微信“扫一扫”，打开网页后点击屏幕右上角分享按钮





























                    Copyright © 2024 平头弟 京ICP备15032243号-1
                         投诉举报邮箱：nettui@qq.com
