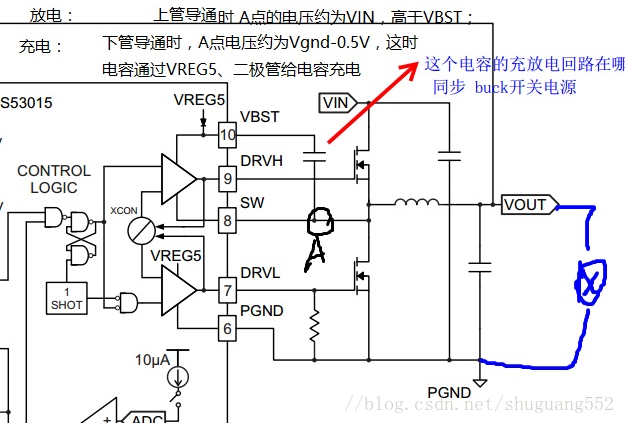

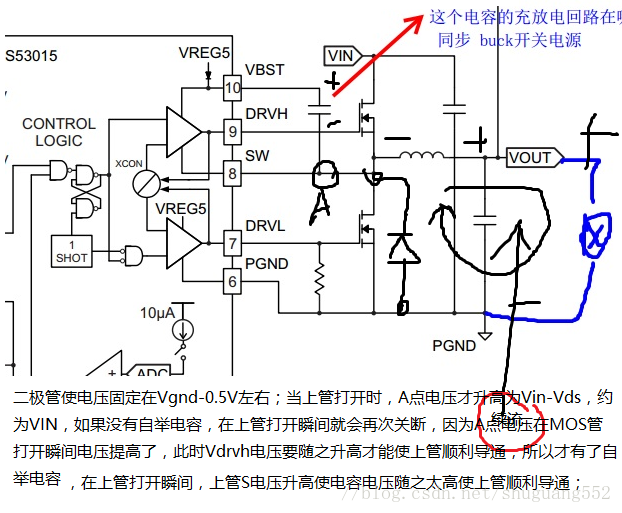

TPS53015 function block
PIN FUNCTIONS
当SW switch to over current comparator作为输入（I），当switch to the high-side driver 时作为输出（O），可能是SW和DRVH一块输出驱动high-side mosfet的GS；
PIN FUNCTIONS
当SW switch to over current comparator作为输入（I），当switch to the high-side driver 时作为输出（O），可能是SW和DRVH一块输出驱动high-side mosfet的GS；
