MT6357参考设计,MT6357处理器设计资料介绍

2019-07-14 02:44发布

MT6357CRV Power Design Notice(适用于MT6765) ▪ MT6357 Introduction
▪ General Function Description
▪ Reference Design
▪ Function Block Notice 1.MT6357 –General Description MT6357CRV高度集成功能满足智能手机系统的所有电源需求: Buck Converters
MT6357 x 5 (VPROC, VCORE, VMODEM, VPA, VS1) LDOs
▪ Analog LDO * 6
▪ Digital LDO * 21
▪ RTC *1 Driver
▪ Vibrator Driver *1 Audio
▪ Audio Codec
▪ Audio Line Out • RTC Macro
• Fuel Gauge

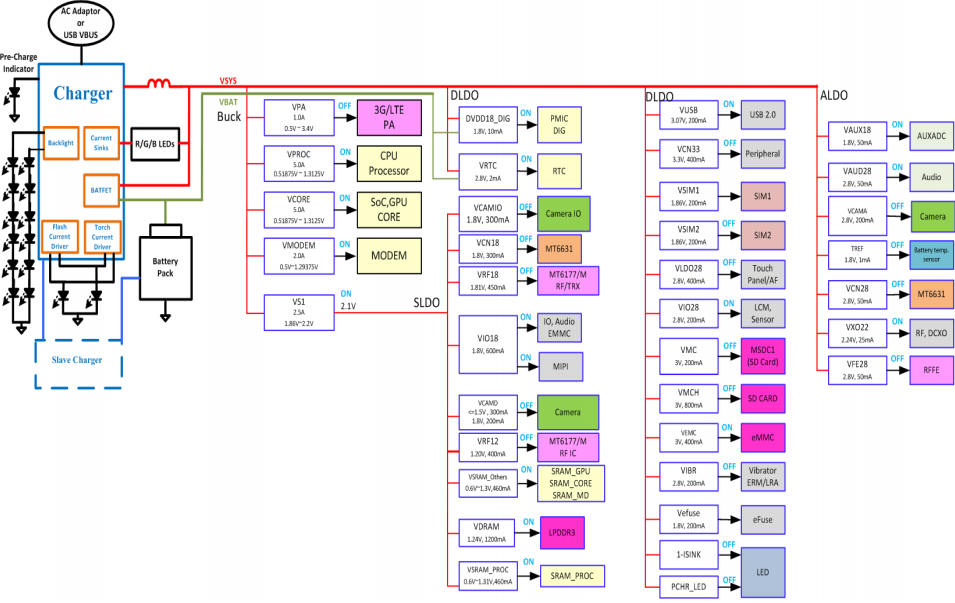

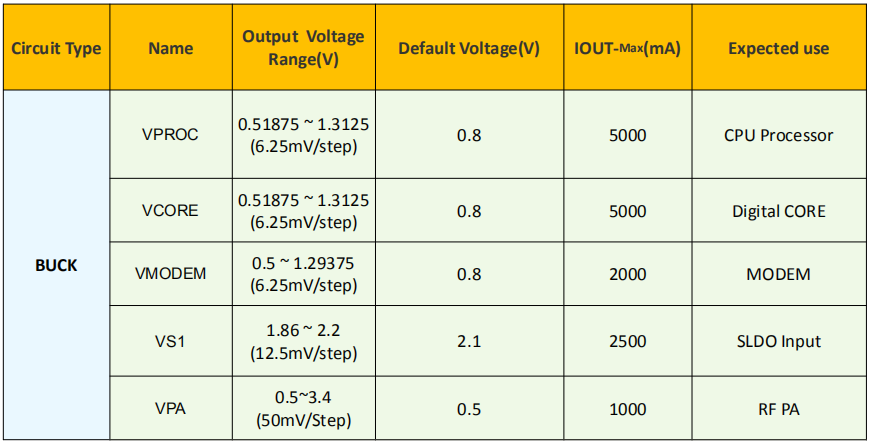

• XO Control and Output 电源规划: MT6357 Buck Power Plan: MT6357 LDO Power Plan (1): ··················································································
