一 高可用最小停机时间最小的数据丢失

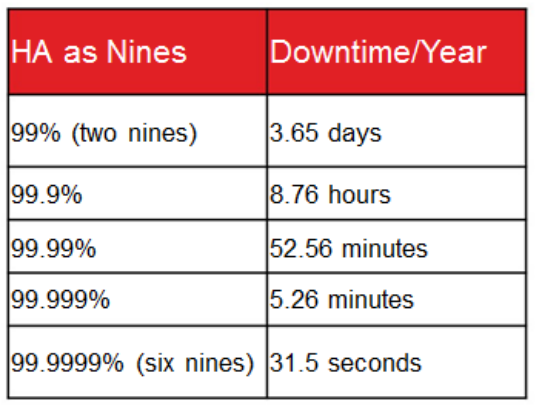

二 可用性级别

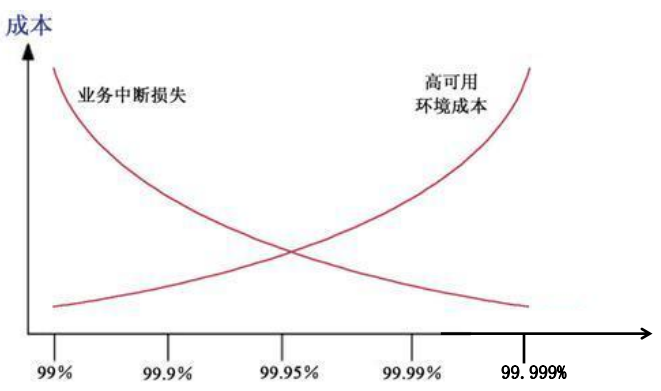

三 收益与投入成本
四 如何实现消除单点（SPOFs）

•  网络冗余，比如：交换机、路由器
•  应用服务冗余和自动服务迁移
•  存储冗余
•  基础设施冗余，比如：电源

五 高可用概念1 无状态服务（stateless services）

• 请求之间没有依赖
• 比如：Nova API，Nova Scheduler，etc.

2 有状态服务（Stateful services）

• 一次操作需要多个关联请求完成
• 比如：MySQL，Qpid，etc.

3 Active/Passive

• Redundant instances of stateless services are load balanced
• For Stateful services a replacement resource can be brought online.

这种方式是一个节点是主，一个节点是备，主节点挂掉后，备节点起来工作。4 Active/Active

• Redundant instances of stateless services are load balanced
• Stateful services are managed in such a way that services are redundant, and that all instances have an identical state.
• Updates to one instance of a database would also update all other instances.

这种方式是所有节点都是活动的，没有主备之分，但每个节点的数据库状态必须保持一致，因此开销比较大。5 Failover

• Migration of a service from the “primary” to the “secondary”

6 Failback

• Migration of service back to the “primary”

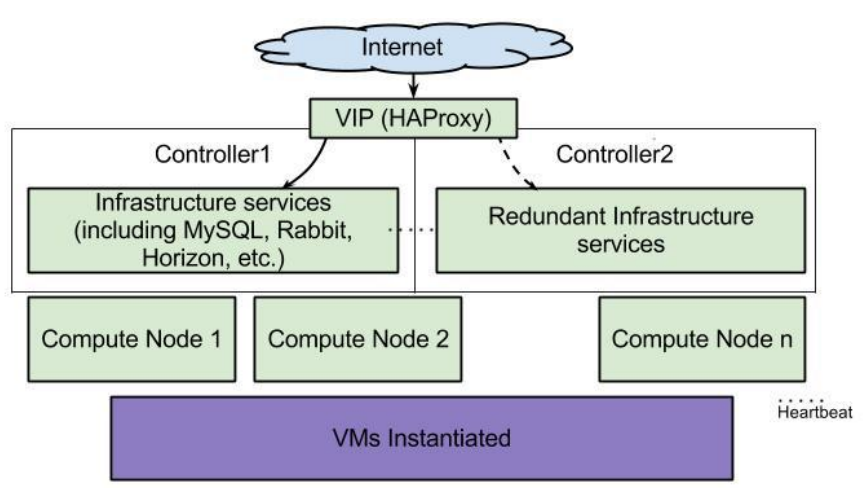

六 HA for Openstack1 Compute HA

• Instance HA

2 Controller HA

• MySQL
• Qpid
• OpenStack APIs (keystone, nova-api etc.)
• Nova, Neutron, Cinder, Swift, and so on

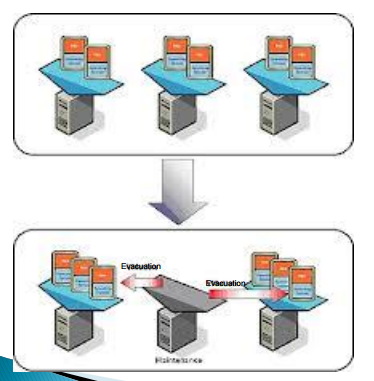

七 Server EvacuationWithout Shared Storage

• The instance will be booted from a new disk, but will preserve the configuration, e.g. id, name, uid, ip...etc.

With Shared Storage

• The instance will be booted from same disk and data will be preserved

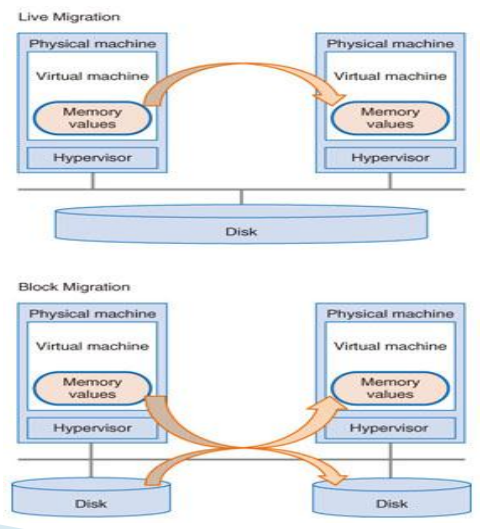

八 Instance Migration
九 Application implement
十 HA on Openstack
十一 MySQL HA

• 非常重要的一个组成
• 每个Openstack的组件都用到了数据库
• 需要使用数据库记录相当多的信息

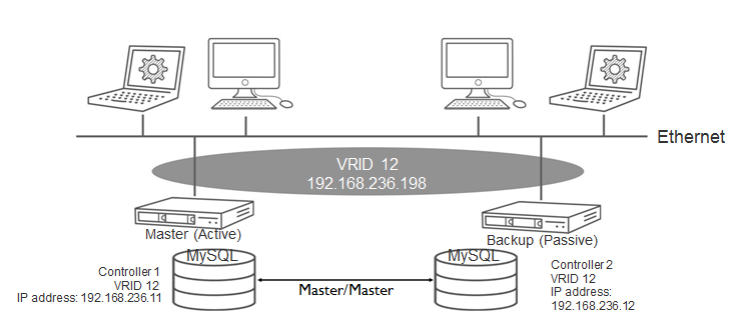

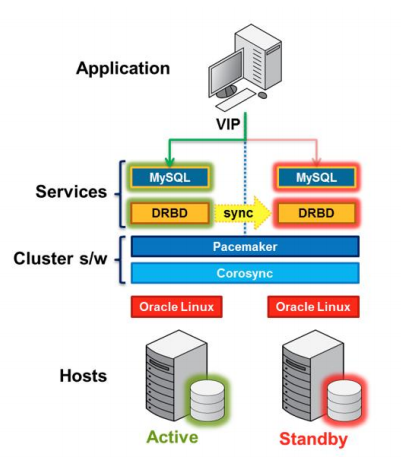

1 Master/Master Replication2 Pacemaker，Corosync and DRBDPacemaker

• high availability and load balancing stack for the Linux platform.
• Interacts with applications through Resource Agents (RA)

Corosync

• Totem single-ring ordering and membership protocol
• UDP and InfiniBand based messaging, quorum, and cluster membership to Pacemaker.

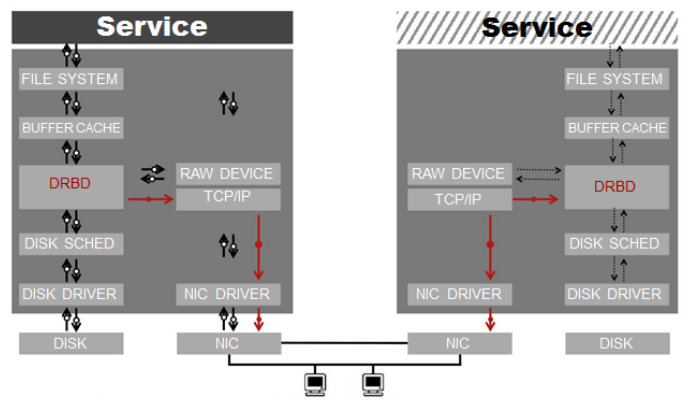

DRBD (Distributed Replication Block Device)

• Synchronizes Data at the block device
• Uses a journaling system (such as ext3 or ext4)

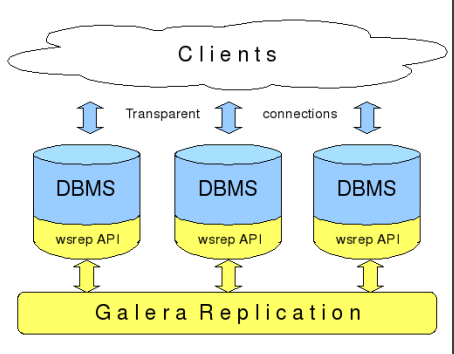

3 GaleraSynchronous multi-master cluster technology for MySQL/InnoDB

• MySQL patched for wsrep (Write Set REPlication)
• Active/active multi-master topology
• Read and write to any cluster node
• True parallel replication, in row level
• No slave lag or integrity issues

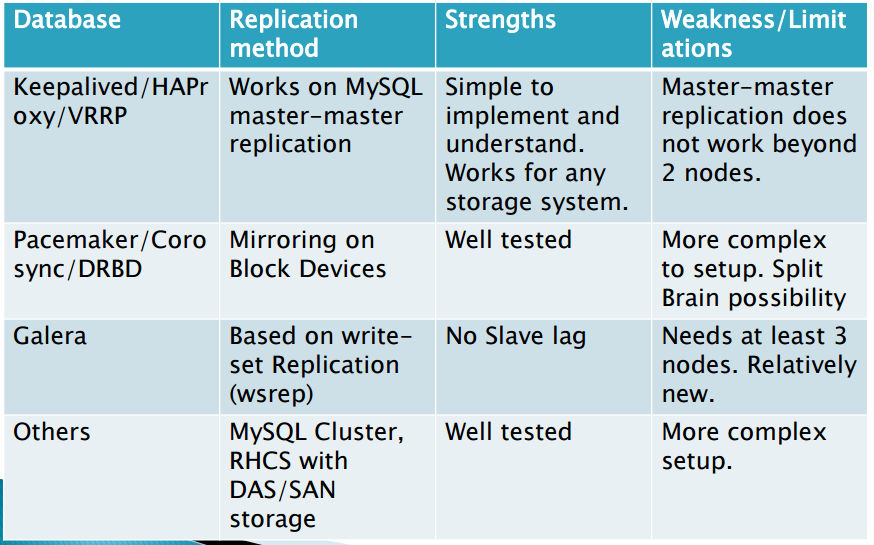

4 比较
十二 Qpid HA

• Pacemaker managed without clustering
• Clustered without pacemaker
• Pacemaker managed with clustering

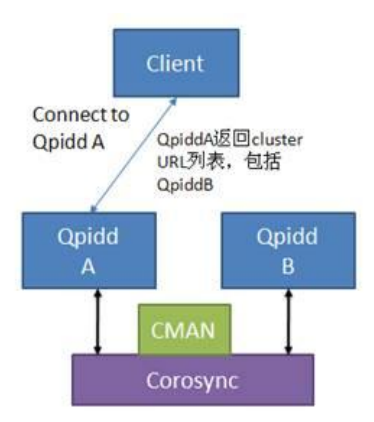

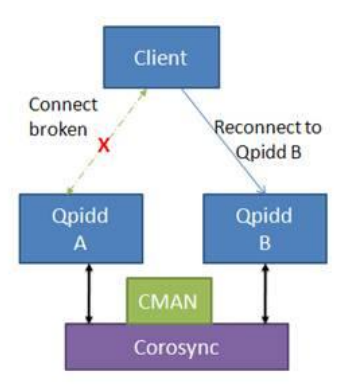

十三 Qpid和Corosync的工作模式1 Client连接一个Broker2 Client failover
十四 Openstack APIs HA

• keystone
• glance-api
• nova-api
• cinder-api
• neutron-api
• Swift-proxy

一般都是用HA with keepalived and HAProxy

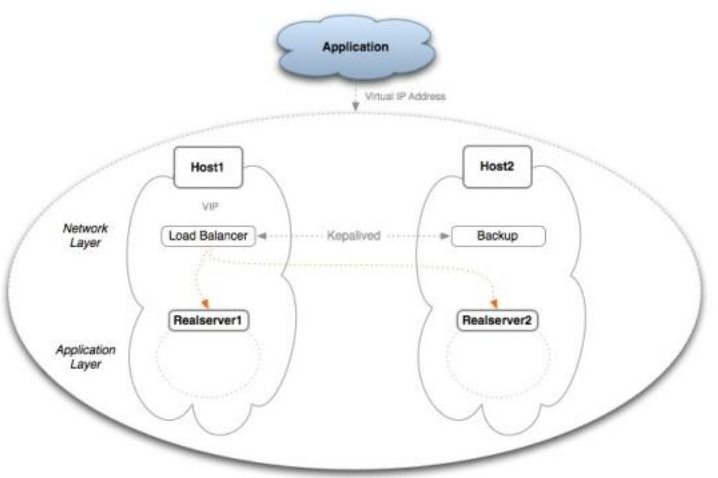

十五 Keepalived，HAProxy and VRRPHAProxy

• Load Balancing and Proxying for HTTP and TCP Applications
• Works over multiple connections
• Used to load balance API services

VRRP (Virtual Router Redundancy Protocol)

• Eliminates SPOF in a static default routed environment

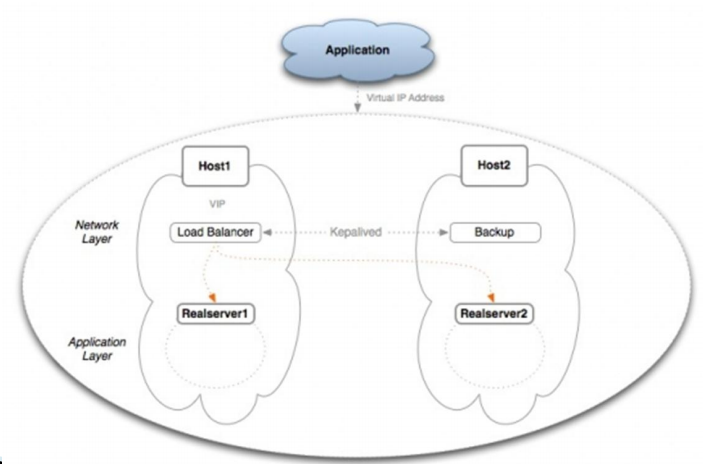

Keepalived

• Based on Linux Virtual Server (IPVS) kernel module to provide layer 4 Load Balancing
• Implements a set of checkers to check service status and to maintain health
• Leverage the VRRP Protocol to remap VIPS in event of failure

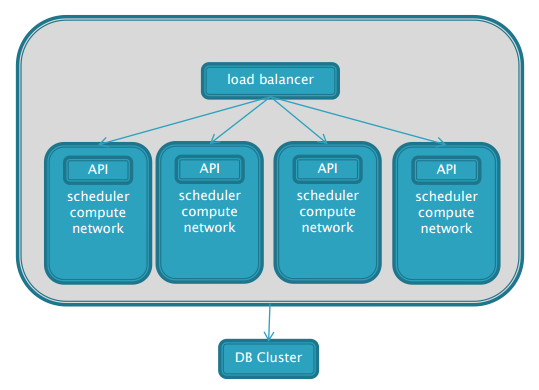

十六 Openstack multi-host service

• Nova-schedule
• Nova-compute
• Cinder-schedule

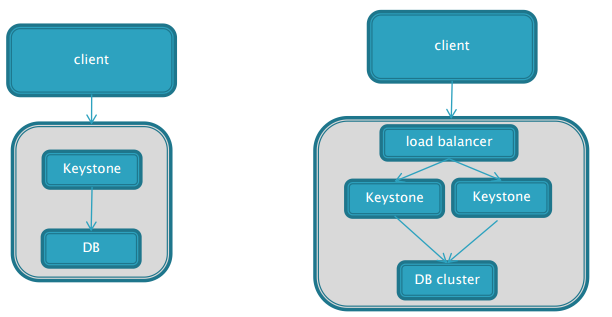

十七 keystone的HA1 keystone是整个openstack的关键。2 负责用户管理和权限控制。3 Openstack每个组件都和keystone有交互。4 单个keystone压力比较大。5 单点6 不同部署

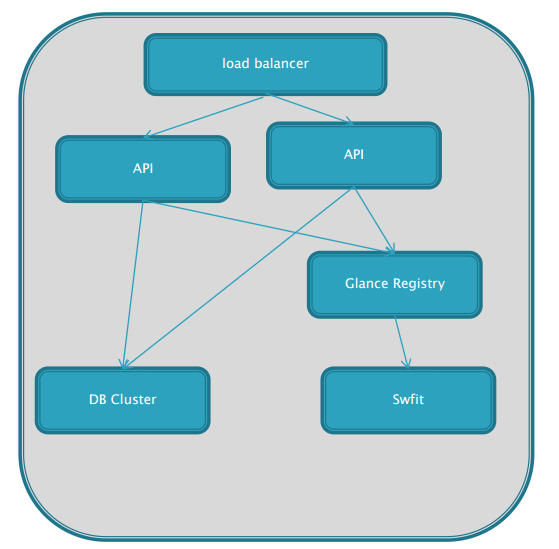

十八 Glance的HA1 Glance负责整个Openstack的image管理，上传和下载操作多，对后端压力大。2 Image文件丢失与损坏3 Glance API接受所有的外部请求，压力比较大4 Glance的HA部署

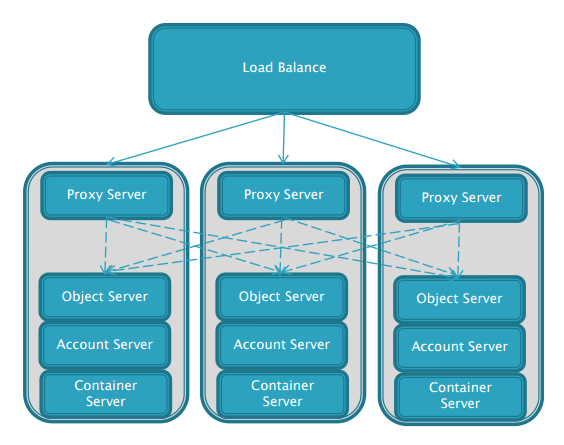

十九 Swift，cinder以及Neutron的HA1 Swift本身就自带HA2 只需要对多个Proxy-Server做负责均衡即可。3 Neutron HA功能暂时还不是特别完善。4 Swift的HA部署
二十 Nova的HA1 Nova支持MutiHost模式部署2 可以做HA的包括nova-api和nova-scheduler，其中，nova-scheduler本身支持HA3 MutilHost模式部署4 对Nova-api进行负载5 Nova的HA部署
二十一 Neutron HAActive/active

• dhcp-agent / openvswitch-agent/neutron-server

support active/ passive

• L3-agent and metadata-agent

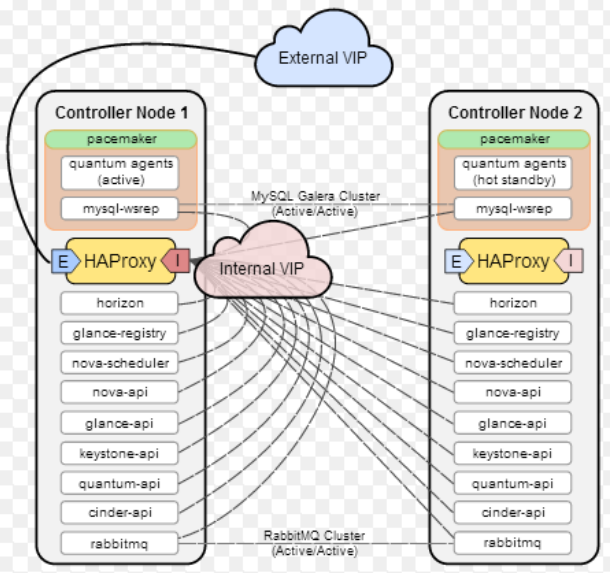

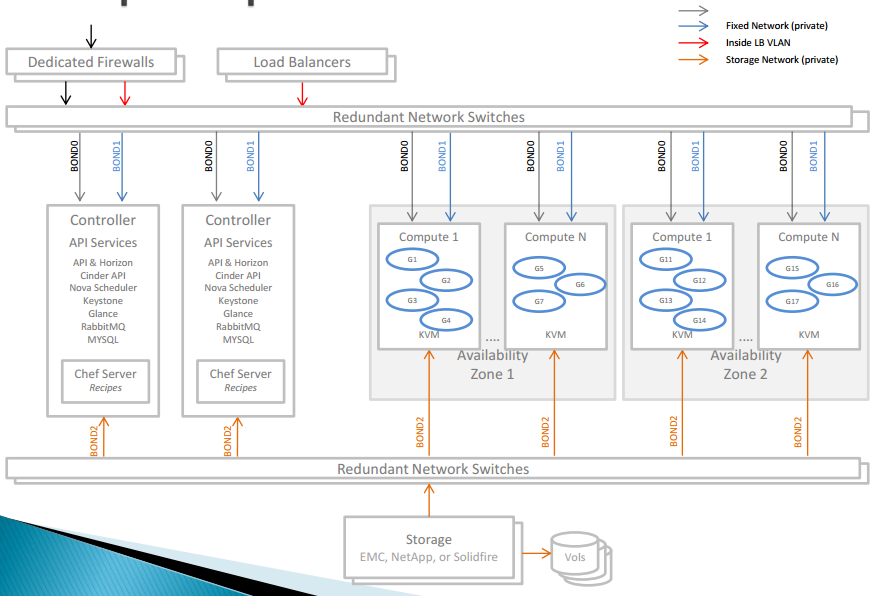

二十二 Sample Openstack HA Architecture
