16X64LED显示问题。。。。。

2019-03-24 17:18发布

站内问答 / 51单片机

14216 10

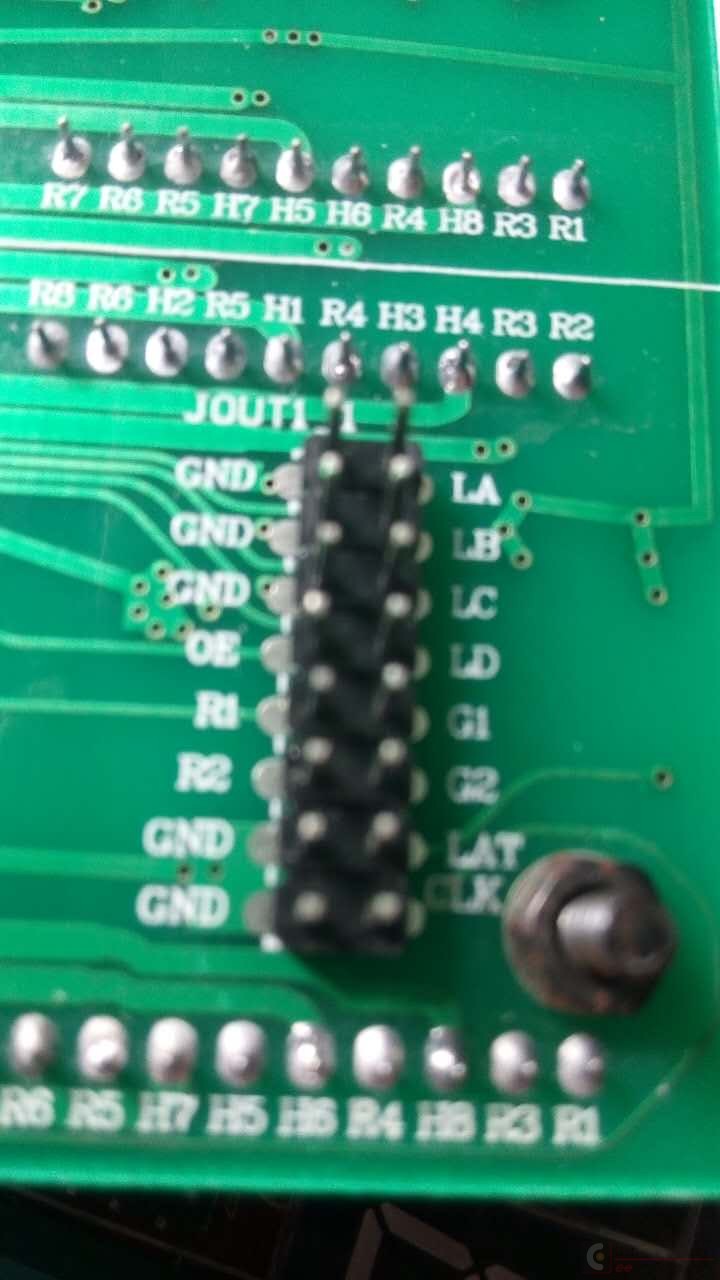

本人要做16X64LED显示汉字，LED接口如下图，显示时出了问题，只在通电的一瞬间LED才亮一下，求大神们解答。。。。。。我采用的是普中科技的单片机，芯片是89C52RC,程序如下,如大神发现我程序有错麻烦指出，或者可以根据我提供的LED接口，单片机，芯片帮我重新写一个程序，小弟感激不尽。。。。
