1)使用MCO输入8MHZ时钟源到XCLK,设置帧同步信号完全错了,是寄存器配置的问题吗?
2)寄存器参考原子的例程,修改了PLL倍频,QVGA RGB565输出格式。
3)寄存器配置如下,搞了几天了,有经验的大神帮忙分析一下,谢谢!
[mw_shl_code=c,true]const char change_reg[][2]=
{
/*以下为OV7670 QVGA RGB565参数 */
{0x3a, 0x04},//dummy
{0x40, 0xd0},//565
{0x12, 0x14},//QVGA,RGB输出
//输出窗口设置
{0x32, 0x80},//HREF control bit[2:0] HREF start 3 LSB bit[5:3] HSTOP HREF end 3LSB
{0x17, 0x16},//HSTART start high 8-bit MSB
{0x18, 0x04},//5 HSTOP end high 8-bit
{0x19, 0x02},
{0x1a, 0x7b},//0x7a,
{0x03, 0x06},//0x0a,帧竖直方向控制
{0x0c, 0x00},
{0x15, 0x00},//0x00
{0x3e, 0x00},//10
{0x70, 0x3a},
{0x71, 0x80},//彩条测试 默认值是35
{0x72, 0x11},
{0x73, 0x00},//
{0xa2, 0x02},//15
{0x11, 0x81},//时钟分频设置,0,不分频.
{0x7a, 0x20},
{0x7b, 0x1c},
{0x7c, 0x28},
{0x7d, 0x3c},//20
{0x7e, 0x55},
{0x7f, 0x68},
{0x80, 0x76},
{0x81, 0x80},
{0x82, 0x88},
{0x83, 0x8f},
{0x84, 0x96},
{0x85, 0xa3},
{0x86, 0xaf},
{0x87, 0xc4},//30
{0x88, 0xd7},
{0x89, 0xe8},
{0x13, 0xe0},
{0x00, 0x00},//AGC
{0x10, 0x00},
{0x0d, 0x00},//全窗口, 位[5:4]: 01 半窗口,10 1/4窗口,11 1/4窗口
{0x14, 0x28},//0x38, limit the max gain
{0xa5, 0x05},
{0xab, 0x07},
{0x24, 0x75},//40
{0x25, 0x63},
{0x26, 0xA5},
{0x9f, 0x78},
{0xa0, 0x68},
{0xa1, 0x03},//0x0b,
{0xa6, 0xdf},//0xd8,
{0xa7, 0xdf},//0xd8,
{0xa8, 0xf0},
{0xa9, 0x90},
{0xaa, 0x94},//50
{0x13, 0xe5},
{0x0e, 0x61},
{0x0f, 0x4b},
{0x16, 0x02},
{0x1e, 0x27},//图像输出镜像控制.0x07
{0x21, 0x02},
{0x22, 0x91},
{0x29, 0x07},
{0x33, 0x0b},
{0x35, 0x0b},//60
{0x37, 0x1d},
{0x38, 0x71},
{0x39, 0x2a},
{0x3c, 0x78},
{0x4d, 0x40},
{0x4e, 0x20},
{0x69, 0x00},
{0x6b, 0x80},//PLL*6=48Mhz
{0x74, 0x19},
{0x8d, 0x4f},
{0x8e, 0x00},//70
{0x8f, 0x00},
{0x90, 0x00},
{0x91, 0x00},
{0x92, 0x00},//0x19,//0x66
{0x96, 0x00},
{0x9a, 0x80},
{0xb0, 0x84},
{0xb1, 0x0c},
{0xb2, 0x0e},
{0xb3, 0x82},//80
{0xb8, 0x0a},
{0x43, 0x14},
{0x44, 0xf0},
{0x45, 0x34},
{0x46, 0x58},
{0x47, 0x28},
{0x48, 0x3a},
{0x59, 0x88},
{0x5a, 0x88},
{0x5b, 0x44},//90
{0x5c, 0x67},
{0x5d, 0x49},
{0x5e, 0x0e},
{0x64, 0x04},
{0x65, 0x20},
{0x66, 0x05},
{0x94, 0x04},
{0x95, 0x08},
{0x6c, 0x0a},
{0x6d, 0x55},
{0x4f, 0x80},
{0x50, 0x80},
{0x51, 0x00},
{0x52, 0x22},
{0x53, 0x5e},
{0x54, 0x80},
//{0x54, 0x40},//110
{0x09, 0x03},//驱动能力最大
{0x6e, 0x11},//100
{0x6f, 0x9f},//0x9e for advance AWB
{0x55, 0x00},//亮度
{0x56, 0x40},//对比度 0x40
{0x57, 0x40},//0x40, change according to Jim's request
///////////////////////////////////////////////////////////////////////
//以下部分代码由开源电子网网友:duanzhang512 提出
//添加此部分代码将可以获得更好的成像效果,但是最下面一行会有蓝 {MOD}的抖动.
//如不想要,可以屏蔽此部分代码.然后将:OV7670_Window_Set(12,176,240,320);
//改为:OV7670_Window_Set(12,174,240,320);,即可去掉最下一行的蓝 {MOD}抖动
{0x6a, 0x40},
{0x01, 0x40},
{0x02, 0x40},
{0x13, 0xe7},
{0x15, 0x00},
{0x58, 0x9e},
{0x41, 0x08},
{0x3f, 0x00},
{0x75, 0x05},
{0x76, 0xe1},
{0x4c, 0x00},
{0x77, 0x01},
{0x3d, 0xc2},
{0x4b, 0x09},
{0xc9, 0x60},
{0x41, 0x38},
{0x34, 0x11},
{0x3b, 0x02},
{0xa4, 0x89},
{0x96, 0x00},
{0x97, 0x30},
{0x98, 0x20},
{0x99, 0x30},
{0x9a, 0x84},
{0x9b, 0x29},
{0x9c, 0x03},
{0x9d, 0x4c},
{0x9e, 0x3f},
{0x78, 0x04},
{0x79, 0x01},
{0xc8, 0xf0},
{0x79, 0x0f},
{0xc8, 0x00},
{0x79, 0x10},
{0xc8, 0x7e},
{0x79, 0x0a},
{0xc8, 0x80},
{0x79, 0x0b},
{0xc8, 0x01},
{0x79, 0x0c},
{0xc8, 0x0f},
{0x79, 0x0d},
{0xc8, 0x20},
{0x79, 0x09},
{0xc8, 0x80},
{0x79, 0x02},
{0xc8, 0xc0},
{0x79, 0x03},
{0xc8, 0x40},
{0x79, 0x05},
{0xc8, 0x30},
{0x79, 0x26},
{0x09, 0x00},
///////////////////////////////////////////////////////////////////////
}; [/mw_shl_code]
没接错吧?
---------------------------------
确定没有接错。用的是第三方的不带晶振不带FIFO的摄像头,确实找不出问题出现在哪里。准备放弃了。下次买你们的摄像头来研究一下
---------------------------------

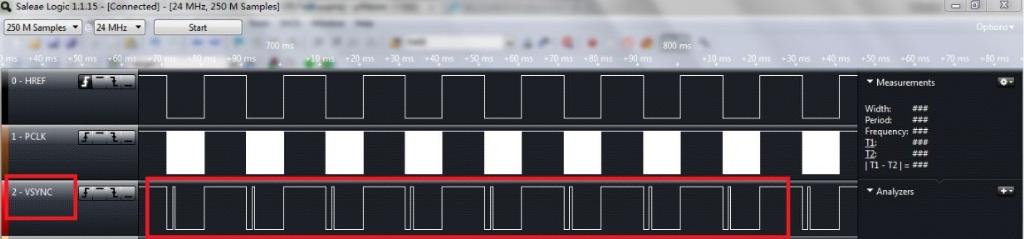

没看过这样的波形,呵呵
请问帧同步信号是一直都有的吗?我的直接一直为低。
