动手搭建1632LED点阵屏

2020-02-01 16:37发布

站内问答 / 51单片机
12715 10 10

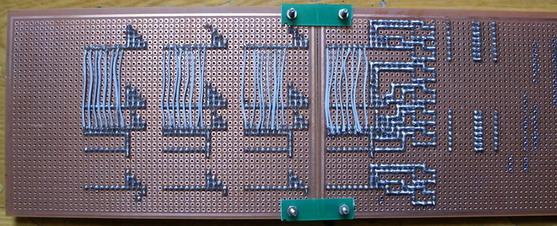

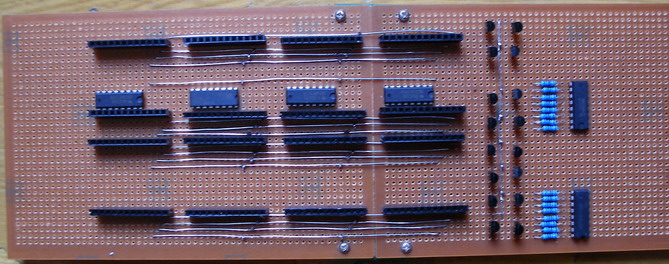

第一次用洞洞板做这么大的东西，感觉还不错，整个制作过程比较顺利，得到了老沈的大力支持，在此表示感谢
先传一部分图片过来看看，大家也可以欣赏一下FLASH
地址：www.yq0511.cn/2.swf 各位新手可以加我的群共同学习  49984245

(原文件名:DSCF1077_缩小大小.jpg)


(原文件名:DSCF1078_缩小大小.jpg)


(原文件名:DSCF1083_缩小大小.jpg)


(原文件名:DSCF1084_缩小大小.jpg)


(原文件名:DSCF1085_缩小大小.jpg)
友情提示: 此问题已得到解决，问题已经关闭,关闭后问题禁止继续编辑，回答。
该问题目前已经被作者或者管理员关闭, 无法添加新回复
9条回答
monlika
1楼-- · 2020-02-01 20:33
很好很强大~
feixue
2楼-- · 2020-02-02 02:26
 精彩回答 2  元偷偷看……
feixue
3楼-- · 2020-02-02 07:07
在网上找的测试程序



#include <AT89x52.H>//2月1日改变过移动方向
//#include <regx52.h>
#define uchar unsigned char
#define uint unsigned int
#define SPEED 1                       //定义速度
#define light 3                        //定义亮度
uchar col,disrow;                      //col为位移变量,disrow为行变量
uint word;
uchar code tab[];
uchar BUFF[12];
void loadoneline(void);
void sendoneline(void);
/*******根据列指针，由双字节合并为单字节的子程序模块12MHZ************/
uchar two_onebyte(uchar h1,uchar h2)
{
uchar temp,tempcol;
if(col<8) tempcol=col;
else tempcol=col-8;
//temp=(h1<<tempcol)|(h2>>(8-tempcol));
temp=(h1>>tempcol)|(h2<<(8-tempcol));
temp=255-temp;
return temp;
}
/****************************主函数***************************/
void main(void)
{
uchar i;
col=0;word=0;
while(1)
{
        while(col<16)// 循环16次，点亮并移动一个汉字
        {
                for(i=0;i<SPEED;i++)//汉字在屏幕上的停留时间（即移动速度快慢）
                {
                        for(disrow=0;disrow<16;disrow++)//扫描16行
                        {
                        loadoneline();//装载一线点阵数据
                        sendoneline();//发送一线点阵数据
                        P2=(0x10+disrow)^0x60;// 点亮屏幕
                        P2=(0x20+disrow)^0x60;


                         P2_7= 1;   // 点亮屏幕

                         P3_1=1;      //(CLK=P3_1)上升沿595输出


                        }
                }
        col++;        //列指针递增
        }
col=0;word=word+32;// 一个汉字移动后，指向下一个汉字
if(word>=1024)word=0;// 移动28个汉字后，重新开始
}
}

/**************装载一线点阵数据****************/
void loadoneline(void)
{
uchar s;
        for(s=0;s<5;s++)              //s为要显示的数字+1
        {
        //BUFF[2*s]=HZ[word+32*s+2*disrow];//~
        //BUFF[2*s+1]=HZ[word+1+32*s+2*disrow];//~
        BUFF[2*s]=tab[word+1+32*s+2*disrow];//~
        BUFF[2*s+1]=tab[word+32*s+2*disrow];//~
        }
}
/***************发送一线点阵数据*******************/
void sendoneline(void)
{
char s;uchar inc;
if(col<8)inc=0;else inc=1;
          for(s=0+inc;s<=7+inc;s++)
        //for(s=8+inc;s>=0+inc;s--)
        {
        SBUF=two_onebyte(BUFF,BUFF[s+1]);
        while(!TI);TI=0;
        }
}
/***********************汉字点阵码*************************/
uchar code tab[]=
{
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

//=============================================================================
//*同济物业质量方针：**/
/*--  同  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x00,0x00,0x3F,0xFE,0x20,0x02,0x20,0x02,0x2F,0xFA,0x20,0x02,0x20,0x02,0x27,0xF2,
0x24,0x12,0x24,0x12,0x24,0x12,0x27,0xF2,0x24,0x12,0x20,0x02,0x28,0x02,0x10,0x02,
/*--  济  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x01,0x02,0x02,0x04,0x7F,0xE4,0x08,0x80,0x05,0x11,0x02,0x12,0x0D,0x8A,0x70,0x68,
0x08,0x88,0x08,0x84,0x08,0x87,0x08,0x84,0x08,0x44,0x08,0x44,0x08,0x24,0x08,0x14,
/*--  物  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x01,0x08,0x01,0x08,0x01,0x0A,0x3F,0x8A,0x2A,0xBE,0x2A,0x4A,0x29,0x29,0x29,0x28,
0x24,0x98,0x24,0x4C,0x22,0x2B,0x21,0x08,0x20,0x88,0x20,0x48,0x14,0x28,0x08,0x00,
/*--  业  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x02,0x20,0x02,0x20,0x02,0x20,0x22,0x20,0x62,0x22,0x32,0x24,0x12,0x24,0x0A,0x28,
0x0A,0x38,0x06,0x28,0x02,0x20,0x02,0x20,0x22,0x20,0x7F,0xFF,0x00,0x00,0x00,0x00,
/*--  质  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x3E,0x00,0x01,0xFC,0x01,0x04,0x1F,0xF4,0x01,0x04,0x00,0x84,0x0F,0xE4,0x08,0x24,
0x09,0x24,0x09,0x24,0x09,0x24,0x09,0x24,0x02,0x84,0x0C,0x42,0x18,0x22,0x08,0x11,
/*--  量  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x0F,0xF8,0x08,0x08,0x0F,0xF8,0x08,0x08,0x0F,0xF8,0x00,0x00,0x7F,0xFF,0x08,0x88,
0x0F,0xF8,0x08,0x88,0x0F,0xF8,0x00,0x80,0x1F,0xF8,0x00,0x80,0x7F,0xFF,0x00,0x00,
/*--  方  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x00,0x40,0x00,0x80,0x01,0x00,0x7F,0xFF,0x00,0x40,0x00,0x40,0x0F,0xC0,0x08,0x40,
0x08,0x20,0x08,0x20,0x08,0x10,0x08,0x10,0x08,0x08,0x09,0x04,0x06,0x03,0x00,0x00,
/*--  针  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x04,0x08,0x04,0x08,0x04,0x04,0x04,0x7C,0x04,0x02,0x04,0x3E,0x7F,0x89,0x04,0x08,
0x04,0x7F,0x04,0x08,0x04,0x08,0x04,0x48,0x04,0x28,0x04,0x18,0x04,0x08,0x04,0x00,
/*--  ：  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x0C,0x00,0x0C,0x00,0x00,0x00,0x0C,0x00,0x0C,0x00,0x00,0x00,0x00,


//*规范服务**/
/*--  规  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x00,0x08,0x3F,0x88,0x20,0x88,0x24,0xBE,0x24,0x88,0x24,0x88,0x24,0x88,0x24,0xFF,
0x24,0x88,0x0A,0x14,0x0A,0x24,0x49,0x64,0x49,0x22,0x48,0x82,0x70,0x41,0x00,0x20,
/*--  范  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x04,0x20,0x04,0x20,0x7F,0xFF,0x06,0x20,0x00,0x02,0x1F,0x8C,0x10,0x89,0x10,0x86,
0x10,0x92,0x1C,0x90,0x08,0x88,0x00,0x87,0x20,0x84,0x20,0x84,0x3F,0x04,0x00,0x04,
/*--  服  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x3F,0x3C,0x21,0x24,0x21,0x24,0x29,0x24,0x11,0x3C,0x01,0x24,0x3F,0x24,0x23,0x3C,
0x23,0x24,0x15,0x24,0x15,0x24,0x09,0x24,0x15,0x22,0x73,0x2A,0x21,0x11,0x00,0x00,
/*--  务  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x00,0x20,0x0F,0xE0,0x08,0x30,0x04,0x28,0x02,0x46,0x01,0x81,0x06,0x60,0x78,0x98,
0x20,0x86,0x0F,0xF8,0x08,0x40,0x08,0x40,0x08,0x20,0x08,0x10,0x0A,0x0C,0x04,0x03,
/*--  空格  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16**/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
//*有呼必应**/
/*--  有  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x00,0x80,0x00,0x80,0x7F,0xFE,0x00,0x40,0x00,0x20,0x0F,0xF0,0x08,0x18,0x08,0x14,
0x0F,0xF2,0x08,0x11,0x08,0x10,0x0F,0xF0,0x08,0x10,0x09,0x10,0x0E,0x10,0x04,0x10,
/*--  呼  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x00,0x00,0x3C,0x00,0x03,0xFF,0x12,0x11,0x32,0x51,0x12,0x91,0x0A,0x91,0x02,0x11,
0x7F,0xF1,0x02,0x1F,0x02,0x11,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x80,0x01,0x00,
/*--  必  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x00,0x20,0x08,0x40,0x19,0x80,0x08,0x80,0x04,0x30,0x04,0x10,0x0A,0x14,0x12,0x14,
0x21,0x14,0x60,0x92,0x20,0x52,0x10,0x30,0x10,0x18,0x1F,0xF4,0x00,0x03,0x00,0x00,
/*--  应  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x00,0x80,0x01,0x00,0x3F,0xFC,0x00,0x04,0x00,0x44,0x10,0x84,0x31,0x0C,0x13,0x14,
0x09,0x24,0x09,0x24,0x04,0x64,0x04,0x22,0x02,0x02,0x7F,0xFA,0x00,0x01,0x00,0x00,
/*--  空格  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16**/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
//*风格亲和**/
/*--  风  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x00,0x00,0x1F,0xF8,0x10,0x08,0x12,0x08,0x16,0x28,0x12,0x48,0x12,0x88,0x11,0x08,
0x11,0x08,0x12,0x88,0x56,0x48,0x54,0x24,0x64,0x14,0x60,0x02,0x40,0x01,0x00,0x00,
/*--  格  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x01,0x08,0x01,0x08,0x1F,0x88,0x10,0xBF,0x09,0x48,0x0A,0x2C,0x04,0x1C,0x1B,0x2A,
0x60,0xEA,0x1F,0x89,0x10,0x88,0x10,0x88,0x10,0x88,0x10,0x88,0x1F,0x88,0x10,0x88,
/*--  亲  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x00,0x40,0x00,0x80,0x3F,0xFC,0x04,0x10,0x0C,0x20,0x02,0x20,0x7F,0xFE,0x00,0x80,
0x00,0x80,0x3F,0xFC,0x00,0x80,0x04,0x88,0x18,0x98,0x30,0x84,0x10,0xA2,0x00,0x40,
/*--  和  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x00,0x00,0x00,0xE0,0x00,0x1E,0x3E,0x10,0x22,0x10,0x22,0xFE,0x22,0x10,0x22,0x18,
0x22,0x38,0x22,0x54,0x22,0xD4,0x22,0x52,0x3E,0x11,0x22,0x10,0x00,0x10,0x00,0x10,
/*--  空格  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16**/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
//**讲究诚信**/
/*--  讲  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x08,0x82,0x08,0x84,0x08,0x8C,0x08,0x84,0x3F,0xE0,0x08,0x80,0x08,0x87,0x08,0x84,
0x7F,0xF4,0x08,0x84,0x08,0x84,0x08,0x84,0x08,0x54,0x08,0x4C,0x08,0x24,0x08,0x10,
/*--  究  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x00,0x40,0x00,0x80,0x7F,0xFE,0x20,0x02,0x04,0x48,0x08,0x44,0x10,0x42,0x03,0xF8,
0x02,0x40,0x02,0x40,0x02,0x20,0x42,0x20,0x42,0x10,0x42,0x08,0x7C,0x04,0x00,0x00,
/*--  诚  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x04,0x02,0x14,0x0C,0x24,0x04,0x7F,0xF0,0x04,0x20,0x04,0x27,0x24,0x24,0x65,0xE4,
0x29,0x24,0x29,0x24,0x19,0x24,0x49,0x34,0x55,0x2C,0x63,0x54,0x40,0x90,0x00,0x08,
/*--  信  --  **  宋体, 12  **/
/* 当前所选字体下一个汉字对应的点阵为:  宽度x高度=16x16,  调整后为: 16x16*/
0x01,0x10,0x06,0x30,0x02,0x18,0x7F,0xE8,0x00,0x0C,0x1F,0xCC,0x00,0x0A,0x1F,0xC9,
0x00,0x08,0x1F,0xC8,0x10,0x48,0x10,0x48,0x10,0x48,0x1F,0xC8,0x10,0x48,0x00,0x00,






//============================================================================
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,


};
wisebaby
4楼-- · 2020-02-02 12:15
您的技术已经落后了。。
wkman
5楼-- · 2020-02-02 13:31
to:【4楼】

只要有市场，永远不过时。


以前找工时，还看到n多个就靠这个吃饭的小公司。
flyunlimit
6楼-- · 2020-02-02 16:17
程序很容易，电路很痛苦。
1 2 下一页
