本帖最后由 pszcmzcm 于 2015-6-29 12:40 编辑

新人求助schematic 综合的一点问题

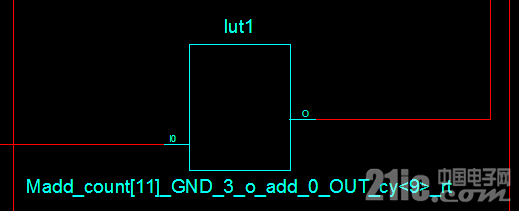

在综合后 technology schematic中 有数个LUT（如图所示）感觉没有意义属于资源浪费


EDA为ISE14.7


truetable为
input  output
0        0
1        1

考虑了一下应该是VHDL编写上的问题，大学中虽然涉及了FPGA 也 在Tutorial 中 学了基本的VHDL编写，但对于此类问题还是感觉无从下手，现在自学并为Msc准备中，希望大牛能告知一下解决方法和原理

code为简单的双向交通灯（FSM based)
具体如下：

1. library IEEE;

2. use IEEE.STD_LOGIC_1164.ALL;

3.

4. entity Traffic_light is

5.

6. port(clk:in std_logic;

7.           Test: in std_logic;

8.           Standby:in std_logic;

9.           R1,Y1,G1:out std_logic;

10.           R2,Y2,G2:out std_logic);

11.

12. end Traffic_light;

13.

14. architecture Behavioral of Traffic_light is

15.

16.

17. constant time_max  :integer := 2700;

18. --The frequency of Clk is 60Hz--

19. constant time_RG   :integer := 1800;

20. --time of light change from red & green(s)--

21. constant time_RY   :integer := 300;

22. --time of light change from red & yellow(s)--

23. constant time_GR   :integer := 2700;

24. --time of light change from green & red(s)--

25. constant time_YR   :integer := 300;

26. --time of light change from yellow & red(s)--

27. constant time_test :integer := 60;

28. --time for test mode(s)--

29.

30. type state is (state_RY,state_GR,state_YR,state_RG,state_YY);

31. signal Pr_state,Nx_state: state;

32. signal time: integer range 0 to time_max;

33.

34. begin

35. --lower section of state machine--

36. process(clk,standby)

37.         variable count: integer range 0 to time_max;

38.         begin

39.         if (standby = '1') then

40.                 Pr_state <= state_yy;

41.         elsif (clk'event and clk= '1') then

42.                 count := count +1;

43.                 if (count = time ) then

44.                 Pr_state <= Nx_state;

45.                 count := 0;

46.                 end if;

47.         end if;

48. end process;

49.

50. --upper section of state machine--

51. process(pr_state,test)

52.         begin

53.         case pr_state is

54.         --state_RY--

55.         when state_RY =>

56.         R1 <= '1'; G1 <= '0'; Y1 <= '0';

57.         R2 <= '0'; G2 <= '0'; Y2 <= '1';

58.         Nx_state <= state_GR;

59.         if (test = '0') then time <= time_RY;

60.         else time <= time_test;

61.         end if;

62.         --state_GR--

63.         when state_GR =>

64.         R1 <= '0'; G1 <= '1'; Y1 <= '0';

65.         R2 <= '1'; G2 <= '0'; Y2 <= '0';

66.         Nx_state <= state_YR;

67.         if (test = '0') then time <= time_GR;

68.         else time <= time_test;

69.         end if;

70.         --state_YR--

71.         when state_YR =>

72.         R1 <= '0'; G1 <= '0'; Y1 <= '1';

73.         R2 <= '1'; G2 <= '0'; Y2 <= '0';

74.         Nx_state <= state_RG;

75.         if (test = '0') then time <= time_YR;

76.         else time <= time_test;

77.         end if;

78.         --state_RG--

79.         when state_RG =>

80.         R1 <= '1'; G1 <= '0'; Y1 <= '0';

81.         R2 <= '0'; G2 <= '1'; Y2 <= '0';

82.         Nx_state <= state_RY;

83.         if (test = '0') then time <= time_RG;

84.         else time <= time_test;

85.         end if;

86.         when others =>

87.         R1 <= '0'; G1 <= '0'; Y1 <= '1';

88.         R2 <= '0'; G2 <= '0'; Y2 <= '1';

89.         Nx_state <= state_RY;

90.         end case;

91. end process;

92. end Behavioral;
