我想问下关于STM32F107 RAM调试的问题

2019-03-23 19:18发布

站内问答 / STM32/STM8
15451 6 1276
最近，想在RAM中调试代码。
       参考了网上的说法，我使用的是MDK ，环境的设置和进入JLINK 调试如图所示。
       对于RAM.INI文件中的 AXF文件的目录页做了正确的配置。
       有关BOOT1和BOOT0的设置，网上有些说要设置成RAM启动方式 ，有些说可以不用设置。
       BOOT1和BOOT0当我设置成从RAM启动方式时，进入JLINK调试，开发板在“全速调试”和“单步调试”下都运行不起来，LCD显示白屏。
       BOOT1和BOOT0设置成FLSAH 启动方式下，点击”DEBUG“按钮，进入JLINK调试，板卡直接进入“全速运行“，我看汇编窗口程序不是运行在RAM 当中,而且不能进入中断。
        不知道以上的问题哪位高手能帮我解决下。 此帖出自小平头技术问答
友情提示: 此问题已得到解决，问题已经关闭,关闭后问题禁止继续编辑，回答。
该问题目前已经被作者或者管理员关闭, 无法添加新回复
6条回答
funnylogic
1楼-- · 2019-03-24 03:17
/ RAM中进不了中断还缺以下两步：

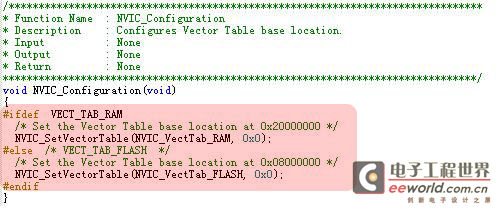

第一步

第一步

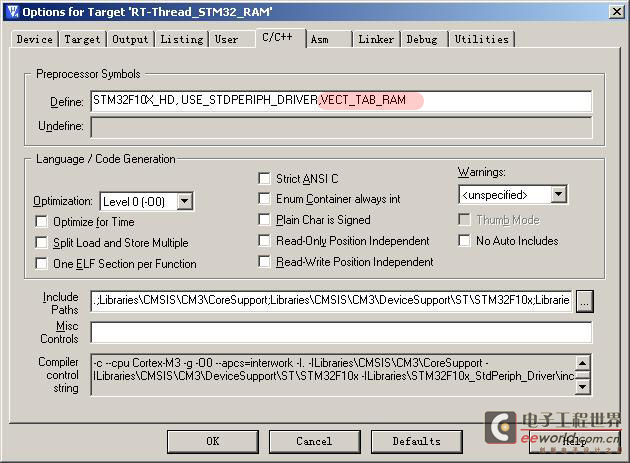

第二步

第二步
tyc119514155
2楼-- · 2019-03-24 05:24
 精彩回答 2  元偷偷看……
funnylogic
3楼-- · 2019-03-24 06:33

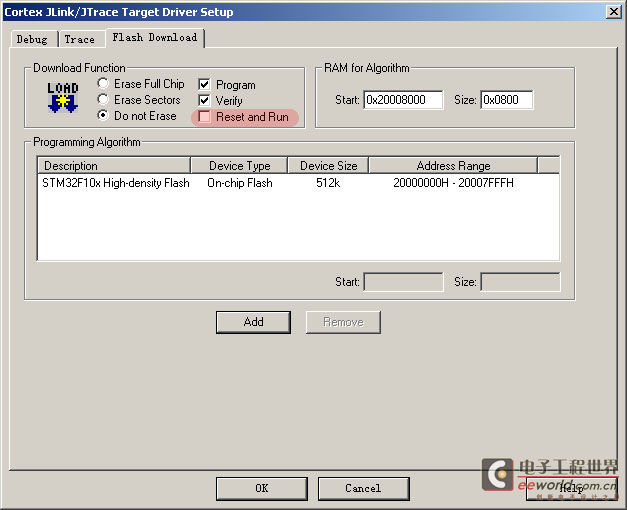

中断向量函数可以直接添加在main里面，但一定要在RCC_Configuration()之后执行。还有该对话框中的Reset and Run这个勾要去掉。

[ 本帖最后由 funnylogic 于 2013-3-19 11:01 编辑 ]
wudayongnb
4楼-- · 2019-03-24 08:34
RAM.ini文件里还要加上把中断向量表复制到ram里的语句，只初始化ram是不够的
tyc119514155
5楼-- · 2019-03-24 11:50
 精彩回答 2  元偷偷看……
wudayongnb
6楼-- · 2019-03-24 16:35
/****************************************************************************
        Copyright (C), 2010 安富莱电子 www.armfly.com

   【本例程在安富莱STM32F103ZE-EK开发板上调试通过             】
   【QQ: 1295744630, 旺旺：armfly, Email: armfly@qq.com       】

        文件名： ExtSRAM.ini

        这是外部SRAM调试脚本。开始Load程序时，由IDE控制仿真器执行这段脚本程序。

        本脚本完成的功能是
        (1) 配置CPU的FSMC总线，使CPU能够访问外部SRAM，已便于后面装入程序
        (2) 复制外部SRAM的中断向量表（0x130字节）到CPU内部RAM
        (3) 设置堆栈指针SP
        (4) 修改PC指针

        注意：工程选项IRAM1的起始地址必须是0x20000200开始

        脚本的语法：
        参加MDK的HELP, 搜索关键字 “uv3 Library Routines” 可以看到uv3支持的脚本命令
*/

FUNC void Setup (void) {
  SP = _RDWORD(0x68000000);          // 设置堆栈指针
  PC = _RDWORD(0x68000004);          // 设置PC指针（程序计数器)
  _WDWORD(0xE000ED08, 0x20000000);   // 设置中断向量表地址寄存器 = 0x20000000
}

// 初始化FSMC，用于外部SRAM
FUNC void InitSRAM (void) {
  //InitRCCC
  _WDWORD(0x40021000, 0x00005083);
  _WDWORD(0x40021004, 0x00000000);
  _WDWORD(0x40021004, 0x00000000);
  _WDWORD(0x40021000, 0x00005083);
  _WDWORD(0x40021004, 0x00000000);
  _WDWORD(0x40021008, 0x009F0000);

  _WDWORD(0x40021000, 0x00015083);
  _sleep_ (100);                        // Wait for PLL lock

  _WDWORD(0x40022000, 0x00000030);
  _WDWORD(0x40022000, 0x00000030);
  _WDWORD(0x40022000, 0x00000032);
  _WDWORD(0x40021004, 0x00000000);
  _WDWORD(0x40021004, 0x00000000);
  _WDWORD(0x40021004, 0x00000400);
  _WDWORD(0x40021004, 0x00000400);
  _WDWORD(0x40021004, 0x001D0400);
  _WDWORD(0x40021000, 0x01035083);
  _sleep_ (100);
  _WDWORD(0x40021004, 0x001D0400);
  _WDWORD(0x40021004, 0x001D0402);
  _sleep_ (100);

  _WDWORD(0x40021014, 0x00000114);  /* Enable AHBPeriphClock */
  _WDWORD(0x40021018, 0x000001E0);  /* Enable APB2PeriphClock */

  /* GPIO Configuration for FSMC */
  _WDWORD(0x40011400, 0xB8BB44BB);
  _WDWORD(0x40011404, 0xBBBBBBBB);
  _WDWORD(0x40011800, 0xBBBBB4BB);   /* NBL0, NBL1 & adress configuration */
  _WDWORD(0x40011804, 0xBBBBBBBB);
  _WDWORD(0x40011C00, 0x33BBBBBB);
  _WDWORD(0x40011C04, 0xBBBB3333);
  _WDWORD(0x40012000, 0x48BBBBBB);
  _WDWORD(0x40012004, 0x444B4BB4);   /* NE3 configuration */

  _WDWORD(0xA0000010, 0x00001010);   /* FSMC Configuration */
  _WDWORD(0xA0000014, 0x00000200);   /* FSMC_DataSetupTime = 2; */
  _WDWORD(0xA0000010, 0x00001011);   /* Enable FSMC Bank1_SRAM Bank */

  _sleep_ (200);
}

/*
        复制中断向量表
        中断向量表地址必须是512字节的整数倍。
        中断向量表实际大小 ：0x00000130
*/
FUNC void CopyVectTable(void) {
        _WDWORD(0x20000000, _RDWORD(0x68000000));
        _WDWORD(0x20000004, _RDWORD(0x68000004));
        _WDWORD(0x20000008, _RDWORD(0x68000008));
        _WDWORD(0x2000000C, _RDWORD(0x6800000C));

        _WDWORD(0x20000010, _RDWORD(0x68000010));
        _WDWORD(0x20000014, _RDWORD(0x68000014));
        _WDWORD(0x20000018, _RDWORD(0x68000018));
        _WDWORD(0x2000001C, _RDWORD(0x6800001C));

        _WDWORD(0x20000020, _RDWORD(0x68000020));
        _WDWORD(0x20000024, _RDWORD(0x68000024));
        _WDWORD(0x20000028, _RDWORD(0x68000028));
        _WDWORD(0x2000002C, _RDWORD(0x6800002C));

        _WDWORD(0x20000030, _RDWORD(0x68000030));
        _WDWORD(0x20000034, _RDWORD(0x68000034));
        _WDWORD(0x20000038, _RDWORD(0x68000038));
        _WDWORD(0x2000003C, _RDWORD(0x6800003C));

        _WDWORD(0x20000040, _RDWORD(0x68000040));
        _WDWORD(0x20000044, _RDWORD(0x68000044));
        _WDWORD(0x20000048, _RDWORD(0x68000048));
        _WDWORD(0x2000004C, _RDWORD(0x6800004C));

        _WDWORD(0x20000050, _RDWORD(0x68000050));
        _WDWORD(0x20000054, _RDWORD(0x68000054));
        _WDWORD(0x20000058, _RDWORD(0x68000058));
        _WDWORD(0x2000005C, _RDWORD(0x6800005C));

        _WDWORD(0x20000060, _RDWORD(0x68000060));
        _WDWORD(0x20000064, _RDWORD(0x68000064));
        _WDWORD(0x20000068, _RDWORD(0x68000068));
        _WDWORD(0x2000006C, _RDWORD(0x6800006C));

        _WDWORD(0x20000070, _RDWORD(0x68000070));
        _WDWORD(0x20000074, _RDWORD(0x68000074));
        _WDWORD(0x20000078, _RDWORD(0x68000078));
        _WDWORD(0x2000007C, _RDWORD(0x6800007C));

        _WDWORD(0x20000080, _RDWORD(0x68000080));
        _WDWORD(0x20000084, _RDWORD(0x68000084));
        _WDWORD(0x20000088, _RDWORD(0x68000088));
        _WDWORD(0x2000008C, _RDWORD(0x6800008C));

        _WDWORD(0x20000090, _RDWORD(0x68000090));
        _WDWORD(0x20000094, _RDWORD(0x68000094));
        _WDWORD(0x20000098, _RDWORD(0x68000098));
        _WDWORD(0x2000009C, _RDWORD(0x6800009C));

        _WDWORD(0x200000A0, _RDWORD(0x680000A0));
        _WDWORD(0x200000A4, _RDWORD(0x680000A4));
        _WDWORD(0x200000A8, _RDWORD(0x680000A8));
        _WDWORD(0x200000AC, _RDWORD(0x680000AC));

        _WDWORD(0x200000B0, _RDWORD(0x680000B0));
        _WDWORD(0x200000B4, _RDWORD(0x680000B4));
        _WDWORD(0x200000B8, _RDWORD(0x680000B8));
        _WDWORD(0x200000BC, _RDWORD(0x680000BC));

        _WDWORD(0x200000C0, _RDWORD(0x680000C0));
        _WDWORD(0x200000C4, _RDWORD(0x680000C4));
        _WDWORD(0x200000C8, _RDWORD(0x680000C8));
        _WDWORD(0x200000CC, _RDWORD(0x680000CC));

        _WDWORD(0x200000D0, _RDWORD(0x680000D0));
        _WDWORD(0x200000D4, _RDWORD(0x680000D4));
        _WDWORD(0x200000D8, _RDWORD(0x680000D8));
        _WDWORD(0x200000DC, _RDWORD(0x680000DC));

        _WDWORD(0x200000E0, _RDWORD(0x680000E0));
        _WDWORD(0x200000E4, _RDWORD(0x680000E4));
        _WDWORD(0x200000E8, _RDWORD(0x680000E8));
        _WDWORD(0x200000EC, _RDWORD(0x680000EC));

        _WDWORD(0x200000F0, _RDWORD(0x680000F0));
        _WDWORD(0x200000F4, _RDWORD(0x680000F4));
        _WDWORD(0x200000F8, _RDWORD(0x680000F8));
        _WDWORD(0x200000FC, _RDWORD(0x680000FC));

        _WDWORD(0x20000100, _RDWORD(0x68000100));
        _WDWORD(0x20000104, _RDWORD(0x68000104));
        _WDWORD(0x20000108, _RDWORD(0x68000108));
        _WDWORD(0x2000010C, _RDWORD(0x6800010C));

        _WDWORD(0x20000110, _RDWORD(0x68000110));
        _WDWORD(0x20000114, _RDWORD(0x68000114));
        _WDWORD(0x20000118, _RDWORD(0x68000118));
        _WDWORD(0x2000011C, _RDWORD(0x6800011C));

        _WDWORD(0x20000120, _RDWORD(0x68000120));
        _WDWORD(0x20000124, _RDWORD(0x68000124));
        _WDWORD(0x20000128, _RDWORD(0x68000128));
        _WDWORD(0x2000012C, _RDWORD(0x6800012C));
}

// 从这里开始执行代码，之前的都是函数定义
InitSRAM();                                   // 配置 FSMC用于SRAM
LOAD obj ext.axf INCREMENTAL                // 下载程序到外部SRAM
CopyVectTable();                                        // 将外部SRAM的中断向量表复制到CPU内部RAM
Setup();                                     // 配置堆栈和PC指针
g, main                                                                // 运行到 main()函数后暂停
这是STM32F103ZET6的在外部ram调试的.ini文件，自己参考一下吧
