28335 GPIO71~79问题

2019-03-26 15:13发布

站内问答 / DSP
2525 1 994
想用GPIO输出高低电平，程序如下#include "DSP2833x_Device.h" // DSP2833x Headerfile Include File
#include "DSP2833x_Examples.h"//#ifdef TOFLASH
//extern void MemCopy(Uint16 *SourceAddr, Uint16* SourceEndAddr, Uint16* DestAddr);
//extern Uint16 RamfuncsLoadStart;
//extern Uint16 RamfuncsLoadEnd;
//extern Uint16 RamfuncsRunStart;
//#endifvoid Sci_initial(void);
void scia_xmit(int a);
void scia_msg(char *msg); MMC0326.zip (339.26 KB, 下载次数: 13) 2016-5-23 22:01 上传 点击文件名下载附件



unsigned int*DAOUT1=(unsigned int*)(0x00200000);
int ax;
int main(void) {
Uint16 ReceivedChar;
char *msg;
InitSysCtrl();
DINT;
InitPieCtrl();
IER = 0x0000;
IFR = 0x0000;
InitPieVectTable();//#ifdef TOFLASH
// MemCopy(&RamfuncsLoadStart, &RamfuncsLoadEnd, &RamfuncsRunStart);
// InitFlash();
//#endif
//InitXintf16Gpio();
//InitXintf();
// Sci_initial();
InitGpio();
GpioDataRegs.GPCCLEAR.all=0xffffffff;
GpioDataRegs.GPCSET.all=0xffffffff;GpioDataRegs.GPCDAT.all=0x00006789;
//GpioDataRegs.GPCSET.all=0x0000ffff;
for(;;)
{
//ax=0;
msg = " Enter a character: ";
scib_msg(msg);// ax=&DAOUT1;
}
return 0;
}
InitGpio();在另一个c文件里面void InitGpio(void)
{
EALLOW;

// Each GPIO pin can be:
// a) a GPIO input/output
// b) peripheral function 1
// c) peripheral function 2
// d) peripheral function 3
// By default, all are GPIO Inputs
GpioCtrlRegs.GPAMUX1.all = 0x0000; // GPIO functionality GPIO0-GPIO15
GpioCtrlRegs.GPAMUX2.all = 0x0000; // GPIO functionality GPIO16-GPIO31
GpioCtrlRegs.GPBMUX1.all = 0x0000; // GPIO functionality GPIO32-GPIO39
GpioCtrlRegs.GPBMUX2.all = 0x0000; // GPIO functionality GPIO48-GPIO63
GpioCtrlRegs.GPCMUX1.all = 0x0000; // GPIO functionality GPIO64-GPIO79
GpioCtrlRegs.GPCMUX2.all = 0x0000; // GPIO functionality GPIO80-GPIO95GpioCtrlRegs.GPADIR.all = 0x0000; // GPIO0-GPIO31 are inputs
GpioCtrlRegs.GPBDIR.all = 0x0000; // GPIO32-GPIO63 are inputs
GpioCtrlRegs.GPCDIR.all = 0xffff; // GPI064-GPIO95 are inputs// Each input can have different qualification
// a) input synchronized to SYSCLKOUT
// b) input qualified by a sampling window
// c) input sent asynchronously (valid for peripheral inputs only)
GpioCtrlRegs.GPAQSEL1.all = 0x0000; // GPIO0-GPIO15 Synch to SYSCLKOUT
GpioCtrlRegs.GPAQSEL2.all = 0x0000; // GPIO16-GPIO31 Synch to SYSCLKOUT
GpioCtrlRegs.GPBQSEL1.all = 0x0000; // GPIO32-GPIO39 Synch to SYSCLKOUT
GpioCtrlRegs.GPBQSEL2.all = 0x0000; // GPIO48-GPIO63 Synch to SYSCLKOUT// Pull-ups can be enabled or disabled.
GpioCtrlRegs.GPAPUD.all = 0x5555; // Pullup's enabled GPIO0-GPIO31
GpioCtrlRegs.GPBPUD.all = 0x0000; // Pullup's enabled GPIO32-GPIO63
GpioCtrlRegs.GPCPUD.all = 0x0000; // Pullup's enabled GPIO64-GPIO79//GpioCtrlRegs.GPAPUD.all = 0xFFFF; // Pullup's disabled GPIO0-GPIO31
//GpioCtrlRegs.GPBPUD.all = 0xFFFF; // Pullup's disabled GPIO32-GPIO34

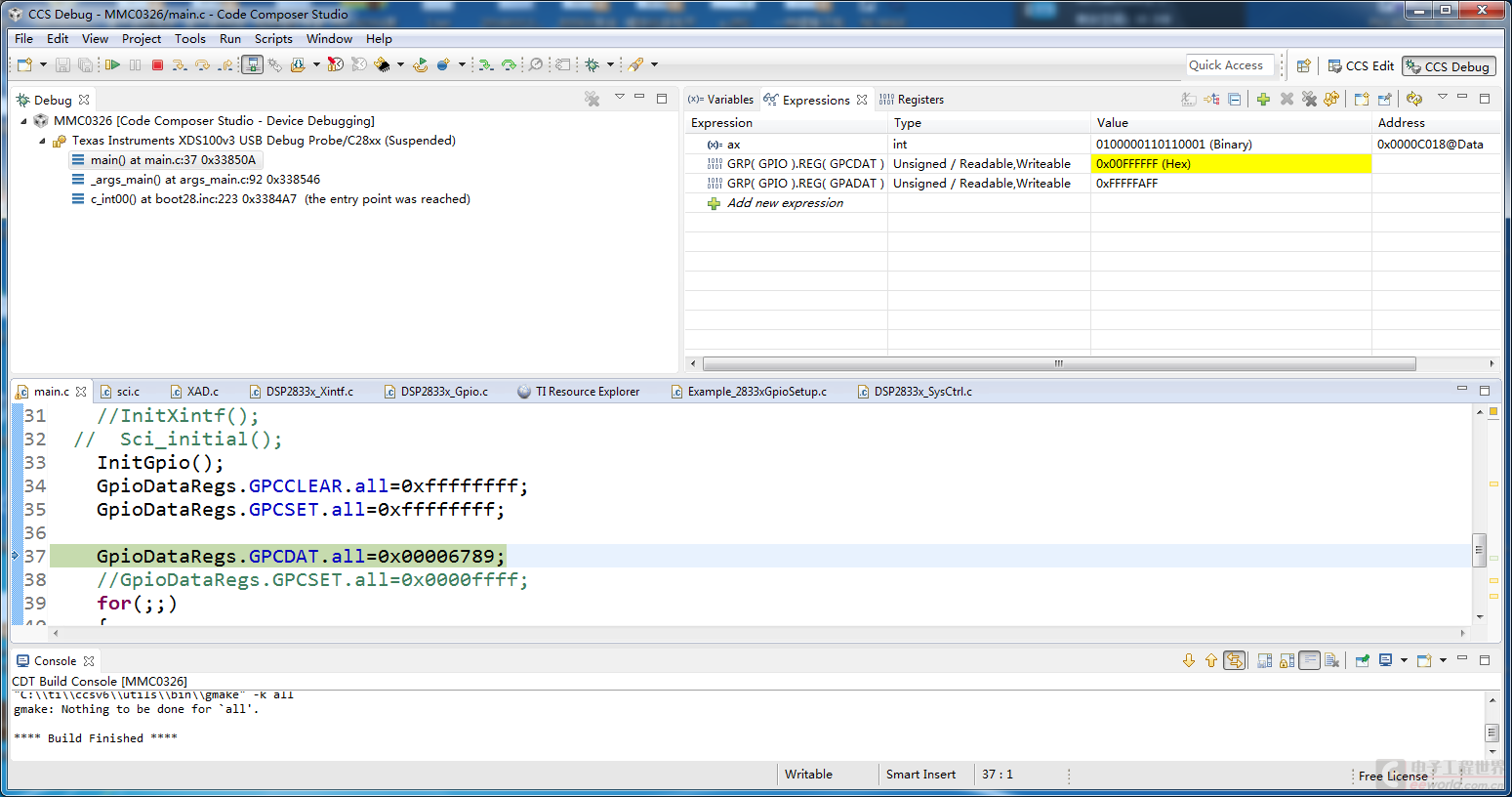

//GpioCtrlRegs.GPCPUD.all = 0xFFFF; // Pullup's disabled GPIO64-GPIO79EDIS;} QQ截图20160523215517.png

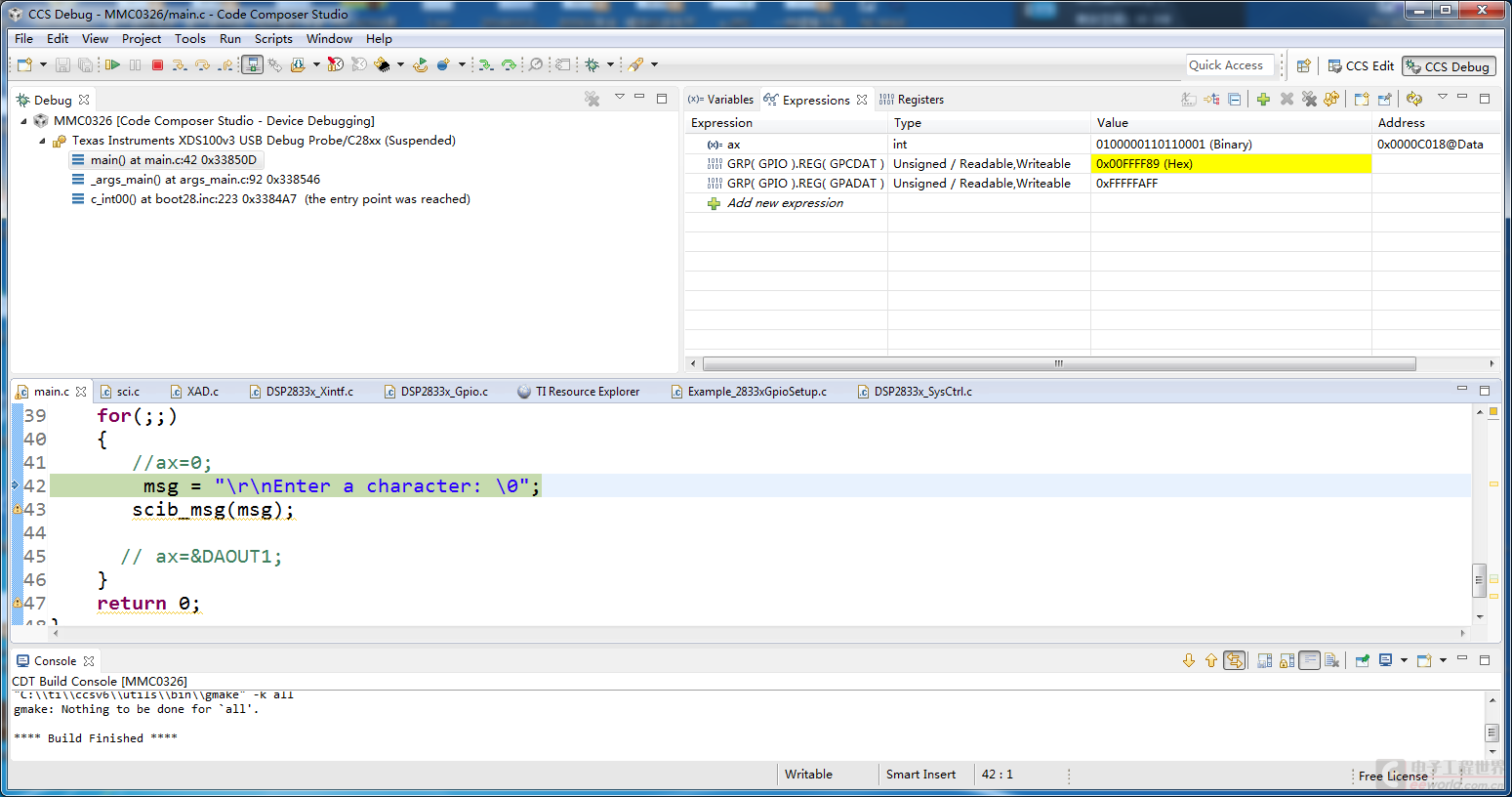

执行置位时可以成功使GPCDAT改变直接对GPCDAT赋值时只能改变最低八位
此帖出自小平头技术问答
友情提示: 此问题已得到解决，问题已经关闭,关闭后问题禁止继续编辑，回答。
该问题目前已经被作者或者管理员关闭, 无法添加新回复
1条回答
zhiwing
1楼-- · 2019-03-26 18:34
