小弟刚学用C2000，自己做的一个小板子，今天仿真时出错了。
软件用的CCS V5.2 仿真器用的xds100 v2；直接导入的官方示例代码用来仿真。

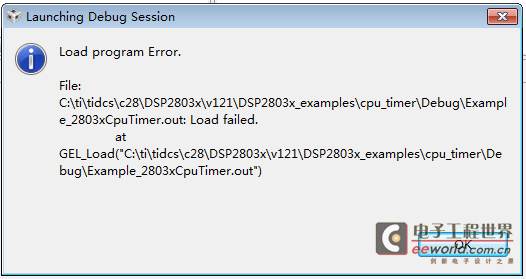

错误警告：
错误提示：
C28xx: Failed Software Reset: (Error -1137 @ 0x0) Device is held in reset. Take the device out of reset, and retry the operation. (Emulation package 5.0.681.0)
C28xx: Trouble Reading PC Register: (Error -1137 @ 0x0) Device is held in reset. Take the device out of reset, and retry the operation. (Emulation package 5.0.681.0)
C28xx: Trouble Reading Register ST1: (Error -1137 @ 0x6) Device is held in reset. Take the device out of reset, and retry the operation. (Emulation package 5.0.681.0)
C28xx: GEL: Error while executing OnReset(1): target access failed at (ST1&~(0x0100)) [f28031.gel:282] at C28x_Mode() [f28031.gel:32] at OnReset(1) .
C28xx: Failed Software Reset: (Error -1137 @ 0x0) Device is held in reset. Take the device out of reset, and retry the operation. (Emulation package 5.0.681.0)
C28xx: Trouble Reading PC Register: (Error -1137 @ 0x0) Device is held in reset. Take the device out of reset, and retry the operation. (Emulation package 5.0.681.0)
C28xx: Trouble Reading Register ST1: (Error -1137 @ 0x6) Device is held in reset. Take the device out of reset, and retry the operation. (Emulation package 5.0.681.0)
C28xx: GEL: Error while executing OnReset(1): target access failed at (ST1&~(0x0100)) [f28031.gel:282] at C28x_Mode() [f28031.gel:32] at OnReset(1) .
C28xx: Flash Programmer: Error erasing flash memory. Device is locked or not connected. Operation cancelled
C28xx: Flash Programmer: Error erasing Flash memory.
C28xx: Error resuming a profile counter: (Error -1137 @ 0xAE8) Device is held in reset. Take the device out of reset, and retry the operation. (Emulation package 5.0.681.0)
C28xx: Flash Programmer: Device is locked or not connected. Operation cancelled.
C28xx: Trouble Writing Memory Block at 0x3f75f6 on Page 0 of Length 0x16: (Error -1137 @ 0xAE8) Device is held in reset. Take the device out of reset, and retry the operation. (Emulation package 5.0.681.0)
C28xx: GEL: File: C: i idcsc28DSP2803xv121DSP2803x_examplescpu_timerDebugExample_2803xCpuTimer.out: Load failed. 此帖出自小平头技术问答
软件用的CCS V5.2 仿真器用的xds100 v2；直接导入的官方示例代码用来仿真。
错误警告：
错误提示：
C28xx: Failed Software Reset: (Error -1137 @ 0x0) Device is held in reset. Take the device out of reset, and retry the operation. (Emulation package 5.0.681.0)
C28xx: Trouble Reading PC Register: (Error -1137 @ 0x0) Device is held in reset. Take the device out of reset, and retry the operation. (Emulation package 5.0.681.0)
C28xx: Trouble Reading Register ST1: (Error -1137 @ 0x6) Device is held in reset. Take the device out of reset, and retry the operation. (Emulation package 5.0.681.0)
C28xx: GEL: Error while executing OnReset(1): target access failed at (ST1&~(0x0100)) [f28031.gel:282] at C28x_Mode() [f28031.gel:32] at OnReset(1) .
C28xx: Failed Software Reset: (Error -1137 @ 0x0) Device is held in reset. Take the device out of reset, and retry the operation. (Emulation package 5.0.681.0)
C28xx: Trouble Reading PC Register: (Error -1137 @ 0x0) Device is held in reset. Take the device out of reset, and retry the operation. (Emulation package 5.0.681.0)
C28xx: Trouble Reading Register ST1: (Error -1137 @ 0x6) Device is held in reset. Take the device out of reset, and retry the operation. (Emulation package 5.0.681.0)
C28xx: GEL: Error while executing OnReset(1): target access failed at (ST1&~(0x0100)) [f28031.gel:282] at C28x_Mode() [f28031.gel:32] at OnReset(1) .
C28xx: Flash Programmer: Error erasing flash memory. Device is locked or not connected. Operation cancelled
C28xx: Flash Programmer: Error erasing Flash memory.
C28xx: Error resuming a profile counter: (Error -1137 @ 0xAE8) Device is held in reset. Take the device out of reset, and retry the operation. (Emulation package 5.0.681.0)
C28xx: Flash Programmer: Device is locked or not connected. Operation cancelled.
C28xx: Trouble Writing Memory Block at 0x3f75f6 on Page 0 of Length 0x16: (Error -1137 @ 0xAE8) Device is held in reset. Take the device out of reset, and retry the operation. (Emulation package 5.0.681.0)
C28xx: GEL: File: C: i idcsc28DSP2803xv121DSP2803x_examplescpu_timerDebugExample_2803xCpuTimer.out: Load failed. 此帖出自小平头技术问答
友情提示: 此问题已得到解决，问题已经关闭,关闭后问题禁止继续编辑，回答。
查查复位引脚接线或设置
为求速成，我做的一个最简单的板子，很多滤波电容和复位电路都没有要。
C2000开发板说明
里面有电路图
