FET430UIF仿真器驱动问题

2019-03-24 09:39发布

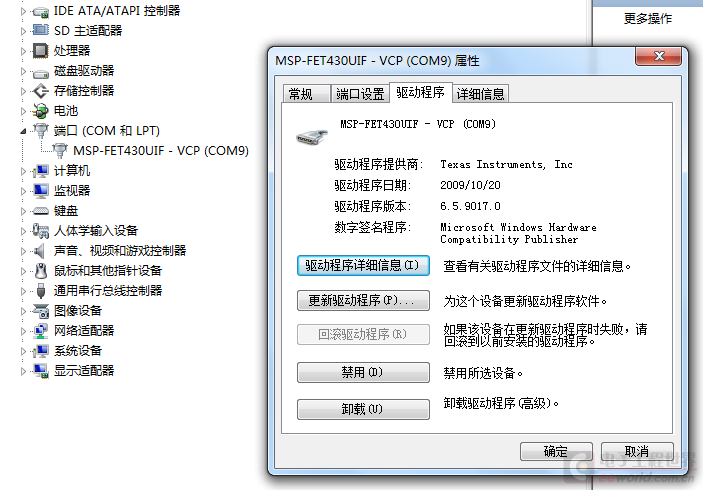

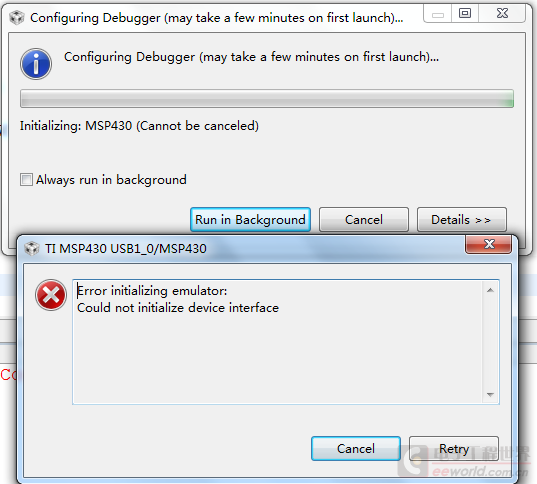

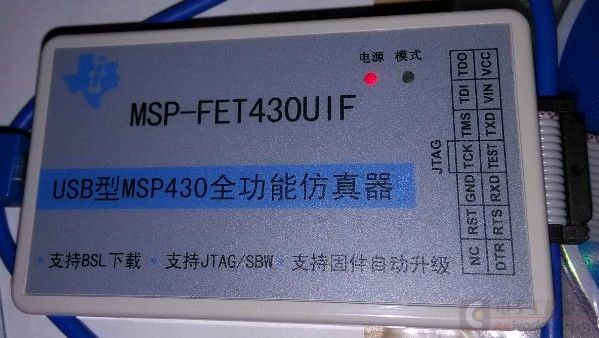

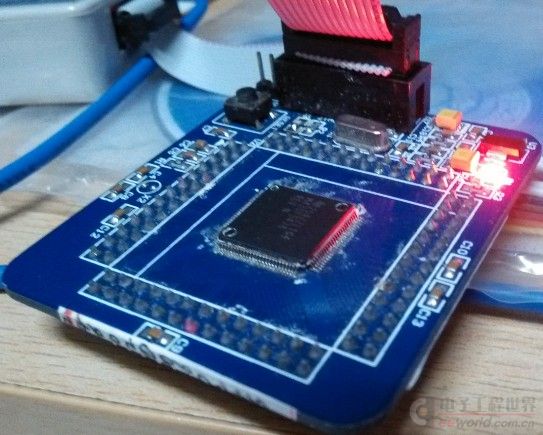

今天刚在淘宝上买的FET430UIF仿真器到货了,所以要赶紧拿来试了,145RMB可是下了血本的,刚插上电脑,安装好驱动,显示如下图,然后我就用CCS V5.3 想仿真试下,但是又出现下面的情况,不知道是为什么, 3.jpg 4.jpg 1.png 2.png 我是驱动没装好么?笔记本是WIN7 64位的。 此帖出自小平头技术问答
友情提示: 此问题已得到解决,问题已经关闭,关闭后问题禁止继续编辑,回答。
该问题目前已经被作者或者管理员关闭, 无法添加新回复
10条回答
fghdzb
1楼-- · 2019-03-24 16:31
 精彩回答 2  元偷偷看……
xueshengke
2楼-- · 2019-03-24 21:14
< :TI_MSP430_内容页_SA7 -->
fghdzb 发表于 2014-2-21 19:00
也许是CCS V5.3和仿真器的版本vcp不匹配吧。

到哪里去下载匹配的驱动不知道额?
qinkaiabc
3楼-- · 2019-03-25 00:46
MSP430: Error initializing emulator: Could not find MSP-FET430UIF on specified COM port
http://e2e.ti.com/support/microc ... f/166/t/275794.aspx

It's working now. I rebooted my PC a few times, reinstalled CCS a couple times, rebooted the FET a few times, power down, etc.
qinkaiabc
4楼-- · 2019-03-25 04:48
 精彩回答 2  元偷偷看……
qinkaiabc
5楼-- · 2019-03-25 10:21
http://e2e.ti.com/support/low_power_rf/f/851/t/167527.aspx
Please disconnect then reconnect the USB cable and try again. If that doesn't work, one of two things might help:
把仿真器重新连接
1) Uninstalling the port . Right click on it in device manager and click uninstall. Don't uninstall the drivers, then disconnect and reconnect the USB cable. The port should reinstall and you can try the Download shortcut again

2) Reassigning the com port - Right click on the COM port in Device manager, click properties, then go to Port Settings -> advanced and select a new port number. Even though it might complain that it is being used, if it doesn't actually show up in device manager as used you can use it. Press ok to reassign it and then disconnect then reconnect the USB cable.
把串口的端口号删除,重新安装驱动或者重新分配端口号
qinkaiabc
6楼-- · 2019-03-25 11:34
