我刚刚接触dsp，现在想用dsp2808的ecap口对直流无刷电机的霍尔信号进行测速。我设置CEVT4时间后触发cap1中断（其中CAP1POL1与CAP1POL3为上升沿触发，CAP1POL2与CAP1POL4为下降沿触发）。问题是现在我给cap口一个pwm信号（2.5kHz）进行频率测试的时候，发现捕获寄存器cap1~cap4的值都是相等的，请问我是哪里出问题了呢？具体设置如下：
void InitECapture()
{
   ECap1Regs.ECCTL2.bit.CAP_APWM=0;//工作于捕获模式
   ECap1Regs.CAP1=0x00000000;
   ECap1Regs.CAP2=0x00000000;
   ECap1Regs.CAP3=0x00000000;
   ECap1Regs.CAP4=0x00000000;
   ECap1Regs.ECEINT.all=0x0000;//屏蔽eCAP1所有中断
//  ECap1Regs.ECCTL1.all=0xFFFF;
   ECap1Regs.ECCLR.all=0xFFFF;//清除所有中断标志位
   ECap1Regs.ECCTL1.bit.CAPLDEN=0;//Disable CAP1~CAP4 register loads
   ECap1Regs.ECCTL2.bit.TSCTRSTOP = 0; // Make sure the counter is stopped
//configure peripheral registers
   ECap1Regs.ECCTL2.bit.CONT_ONESHT=0;//工作于连续捕获模式
   ECap1Regs.ECCTL2.bit.STOP_WRAP=3;  //Stop at 4 events
   ECap1Regs.ECCTL1.bit.CAP1POL=0;  //CEVT1:上升沿捕获
   ECap1Regs.ECCTL1.bit.CAP2POL=1;
   ECap1Regs.ECCTL1.bit.CAP3POL=0;
   ECap1Regs.ECCTL1.bit.CAP4POL=1;

   ECap1Regs.ECCTL1.bit.CTRRST1=1;// Difference operation
   ECap1Regs.ECCTL1.bit.CTRRST2=1;// Difference operation
   ECap1Regs.ECCTL1.bit.CTRRST3=1;// Difference operation
   ECap1Regs.ECCTL1.bit.CTRRST4=1;// Difference operation
   ECap1Regs.ECCTL2.bit.SYNCI_EN=0;// Enable sync in
   ECap1Regs.ECCTL2.bit.SYNCO_SEL=2;// Pass through
   ECap1Regs.ECCTL1.bit.PRESCALE=60;
   ECap1Regs.ECCTL2.bit.TSCTRSTOP = 1; // Start Counter
   ECap1Regs.ECCTL1.bit.CAPLDEN=1;//使能捕获事件发生时间装载到捕获寄存器CAP1~Cap4
   ECap1Regs.ECEINT.bit.CEVT4 = 1;
}
中断执行函数如下
interrupt void  cap_isr(void)
{
// ECap1Regs.ECCTL1.bit.CAPLDEN=1;
// ECap2Regs.ECCTL1.bit.CAPLDEN=1;
// ECap1Regs.EC标志寄存器.bit.CEVT1=0;
// ECap1Regs.EC标志寄存器.bit.CEVT2=0;
// ECap1Regs.EC标志寄存器.bit.CEVT3=0;
// ECap1Regs.EC标志寄存器.bit.CEVT4=0;
    ECap1Regs.ECCLR.bit.CEVT4 = 1;
    ECap1Regs.ECCLR.bit.INT = 1;
ECap1Regs.ECCTL2.bit.REARM = 1;//持续捕捉外部信号
//    ECap1Regs.ECCLR.all=0xFFFF;
PieCtrlRegs.PIEACK.all = PIEACK_GROUP4;   // Acknowledge interrupt to PIE
// PieCtrlRegs.PIEACK.all = PIEACK_GROUP1;   // Acknowledge interrupt to PIE
// ECap1Regs.ECCTL1.bit.CAPLDEN=1;
TSt1_Up1=ECap1Regs.CAP1;
    TSt1_Down1=ECap1Regs.CAP2;
    TSt1_Up2=ECap1Regs.CAP3;
TSt1_Down2=ECap1Regs.CAP4;
return;
}

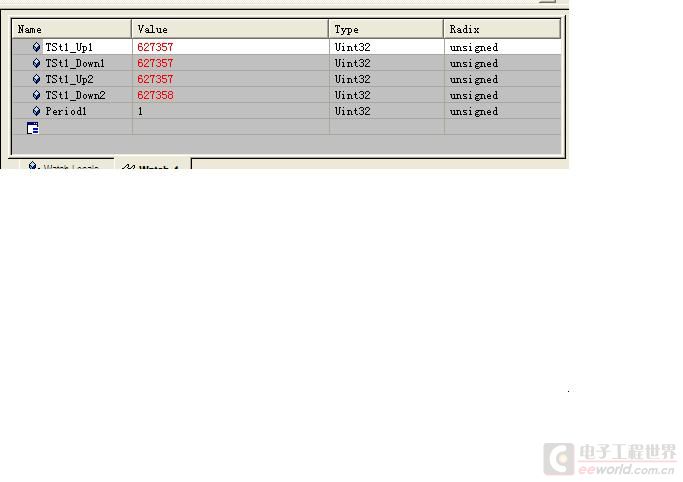

捕获寄存器
