protel99se 层次图制作生成端口问题

2019-07-17 00:39发布

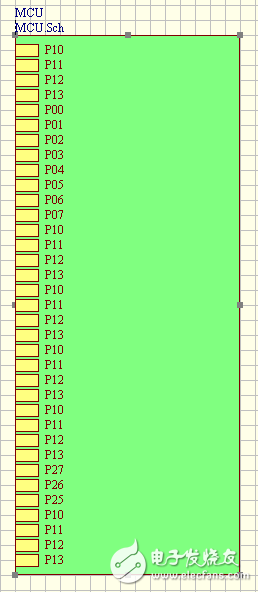

我做了一个51开发板原理图,做了两层,可是连接端口时生成的P1口不只一个,有很多,如图file:///D:/My%20Documents/%E6%A1%8C%E9%9D%A2/QQ%E6%88%AA%E5%9B%BE20130731064250.png ,图片在file:///C:Documents and SettingsAdministratorApplication DataTencentUsers605123918QQWinTempRichOle{3{8~Y@TX0IQVV9Y)}@C0$5.jpg工具栏中的图片中
file:///C:Documents and SettingsAdministratorApplication DataTencentUsers605123918QQWinTempRichOle{3{8~Y@TX0IQVV9Y)}@C0$5.jpgfile:///C:Documents and SettingsAdministratorApplication DataTencentUsers605123918QQWinTempRichOle{3{8~Y@TX0IQVV9Y)}@C0$5.jpgfile:///C:Documents and SettingsAdministratorApplication DataTencentUsers605123918QQWinTempRichOle{3{8~Y@TX0IQVV9Y)}@C0$5.jpg
file:///D:/My%20Documents/%E6%A1%8C%E9%9D%A2/QQ%E6%88%AA%E5%9B%BE20130731064250.png file:///D:/My%20Documents/%E6%A1%8C%E9%9D%A2/QQ%E6%88%AA%E5%9B%BE20130731064250.png file:///D:/My%20Documents/%E6%A1%8C%E9%9D%A2/QQ%E6%88%AA%E5%9B%BE20130731064250.png file:///D:/My%20Documents/%E6%A1%8C%E9%9D%A2/QQ%E6%88%AA%E5%9B%BE20130731064250.png file:///D:/My%20Documents/%E6%A1%8C%E9%9D%A2/QQ%E6%88%AA%E5%9B%BE20130731064250.png file:///D:/My%20Documents/%E6%A1%8C%E9%9D%A2/QQ%E6%88%AA%E5%9B%BE20130731064250.png file:///D:/My%20Documents/%E6%A1%8C%E9%9D%A2/QQ%E6%88%AA%E5%9B%BE20130731064250.png file:///D:/My%20Documents/%E6%A1%8C%E9%9D%A2/QQ%E6%88%AA%E5%9B%BE20130731064250.png file:///D:/My%20Documents/%E6%A1%8C%E9%9D%A2/QQ%E6%88%AA%E5%9B%BE20130731064250.png

友情提示: 此问题已得到解决,问题已经关闭,关闭后问题禁止继续编辑,回答。
该问题目前已经被作者或者管理员关闭, 无法添加新回复
1条回答
hbdxzn
1楼-- · 2019-07-17 03:13
问题解决了,是在原理图外面有许多P1口,刚开始没看到,缩小后可以看到。使用Edit-select-inside Area ,即可选择外面的部分,删除即可
